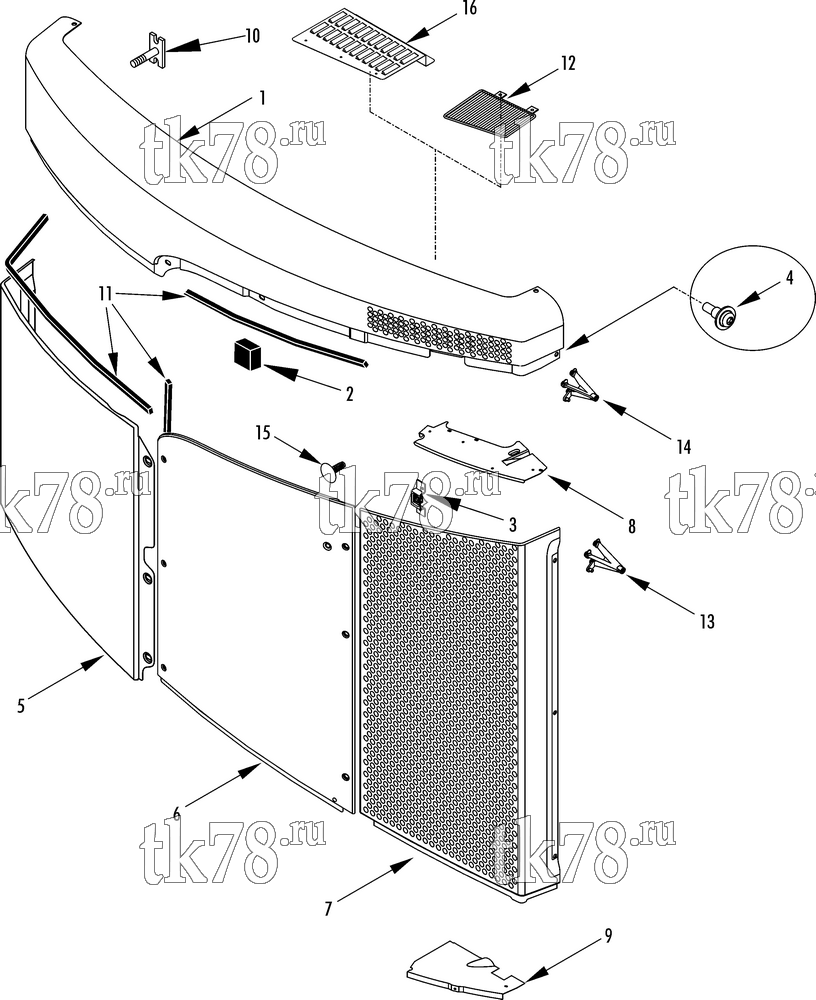

Установкa Thermo King SLX 200 Complete схема DOORS AND PANELS, UPPER SECTION (5/10 & after micro channel cond coil) – 242C7
Обновление от: 6/23/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7914 | COVER - top | 1 | |
| 2 | 33-3338 | SEAL - door | 1 | |
| 3 | 92-7557 | BRACKET - bulkhead | 2 | |
| 4 | 51-1746 | SCREW - cover | 7 | |
| 5 | 98-9038 | PANEL - upper | 1 | |
| 6 | 98-9039 | PANEL - belts | 1 | |
| 98-9039 | PANEL - belts (white, Sterling units) | 1 | ||
| 55-9761 | SCREW - panel | 8 | ||
| 55-7740 | WASHER - special | 8 | ||
| 7 | 98-9040 | GRILLE - condenser | 1 | |
| 51-718 | SCREW - panel & grille (M6 X 16) | A/R | ||
| 55-9761 | SCREW - panel & grille (M6 X 25) | A/R | ||
| 8 | 92-8923 | PANEL - blockoff (top) | 1 | |
| 9 | 92-8922 | PANEL - blockoff (bottom) | 1 | |
| 55-7088 | SCREW - panel | 4 | ||
| 55-7033 | FLATWASHER | 4 | ||
| 10 | 99-214 | BOLT - unit | 8 | |
| 55-5234 | WASHER | 8 | ||
| 55-3686 | NUT | 8 | ||
| 11 | 33-4445 | STRIP - foam (1 meter lg, cut to length) | A/R | |
| 12 | 92-7583 | SCREEN - top (optional) | 1 | |
| 55-7372 | SCREW - screen | 2 | ||
| 55-7075 | FLATWASHER | 2 | ||
| 55-7354 | NUT | 2 | ||
| 13 | 92-9453 | BRACKET - skin mount (93 mm tall) | 6 | |
| 14 | 92-9454 | BRACKET - skin mount (83 mm tall) | 2 | |
| 15 | 92-7421 | CLIP - panel (pine tree) | 4 | |
| 16 | 90-440 | KIT - snow screen (optional) | 1 | |
| 55-8224 | NUT | 4 | ||
| 55-8216 | FLATWASHER | 4 |
