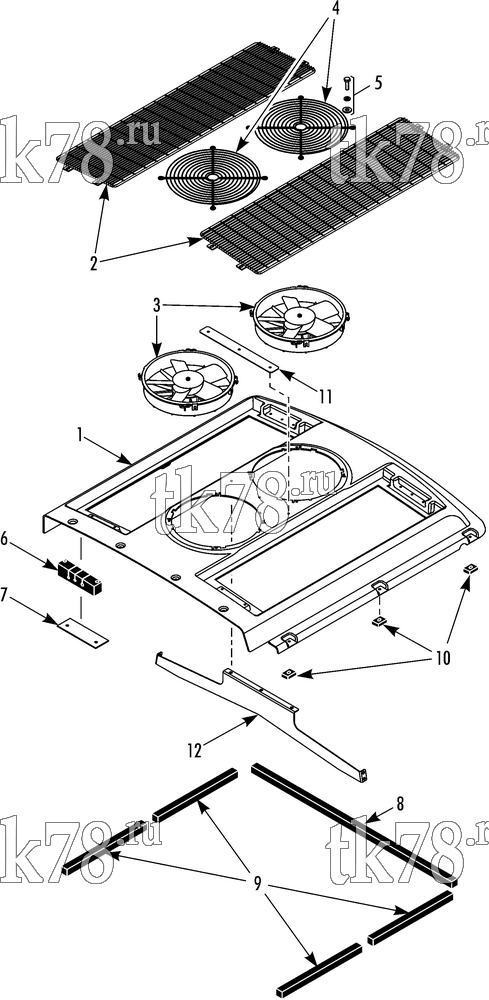

Установкa Thermo King SLR75 for DART схема CONDENSER STRUCTURAL & FANS – 258B9
Обновление от: 12/12/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8601 | FRAME - condenser | 1 | |
| NSS | SCREW - frame (not supplied by Thermo King) | A/R | ||
| 2 | 98-8602 | GRILLE - condenser | 2 | |
| 55-2977 | SCREW - grille | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 3 | 98-5425 | GUARD - fan | 2 | |
| 4 | 78-1392 | FAN (12V) | 2 | |
| 5 | 55-2977 | SCREW - fan & guard | 8 | |
| 55-2086 | FLATWASHER | 8 | ||
| 55-1800 | LOCKWASHER | 8 | ||
| 6 | 33-4742 | PLUG - foam | 1 | |
| 7 | 92-8724 | BRACKET - plug | 1 | |
| 55-3675 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 8 | 33-4789 | GASKET - frame | 1 | |
| 9 | 33-4790 | GASKET - frame | 4 | |
| 10 | 51-2181 | SPACER | 6 | |
| 11 | 92-9417 | PLATE - top | 1 | |
| 12 | 92-9418 | BRACKET - middle | 1 | |
| 55-2977 | SCREW - bracket | 7 | ||
| 55-2086 | FLATWASHER | 7 | ||
| 55-1800 | LOCKWASHER | 7 |
