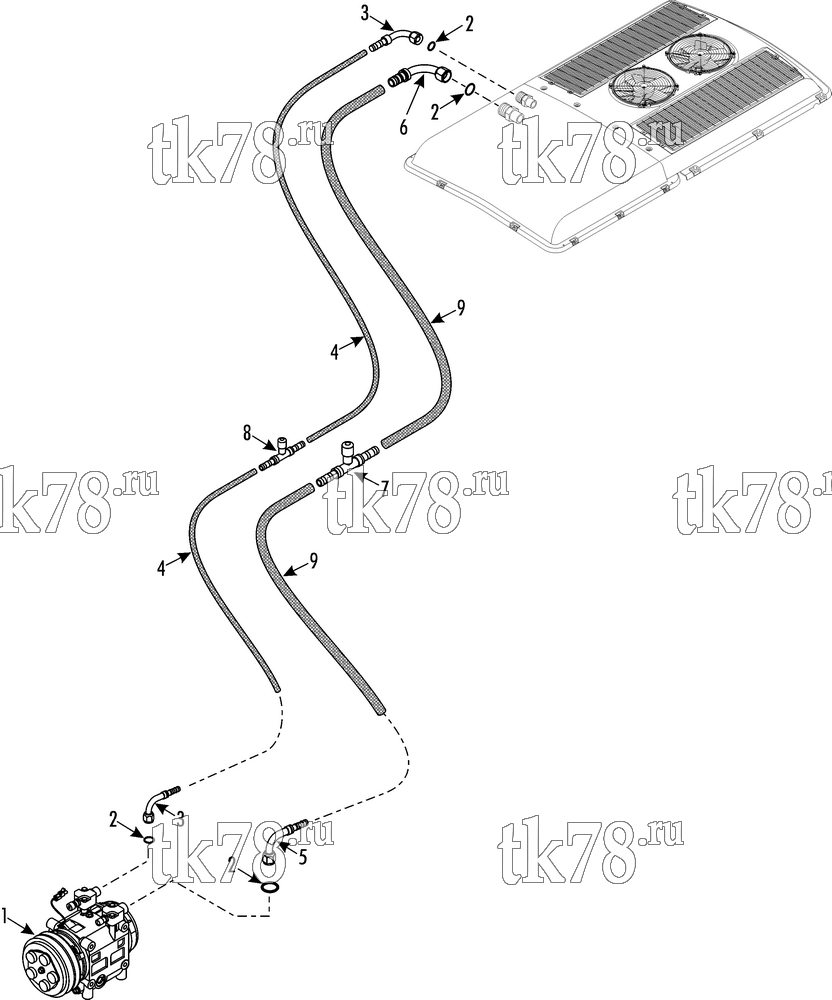

Установкa Thermo King SLR75 for DART схема COMPRESSOR & HOSE KITS – 258B0
Обновление от: 8/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 102-999 | COMPRESSOR - TM31 (less clutch, see 184G8) | 1 | |
| 2 | 33-2846 | O-RING (# 8) | A/R | |
| 33-2848 | O-RING (# 10) | A/R | ||
| 33-2847 | O-RING (# 12) | A/R | ||
| 3 | 51-2438 | FITTING - 90 deg (tube-O, #10 hose x #8 fitting, see 165D6) | 2 | |
| 4 | 67-1710 | HOSE (#10, 300 ft, see 165D6) | A/R | |
| 5 | 51-1753 | FITTING - 90 deg (tube-O #16 hose x #12 fitting, see 165D6) | 1 | |
| 6 | 51-2587 | FITTING - 90 deg (tube-O #16 hose x #10 fitting, see 165D6) | 1 | |
| 7 | 51-2588 | SPLICE (#16 hose w/ R134a low side charging port) | 1 | |
| 8 | 51-325 | FITTING - w/port (#10) | 1 | |
| 9 | 67-2192 | HOSE (#16, 300 ft, see 165D6) | A/R |
