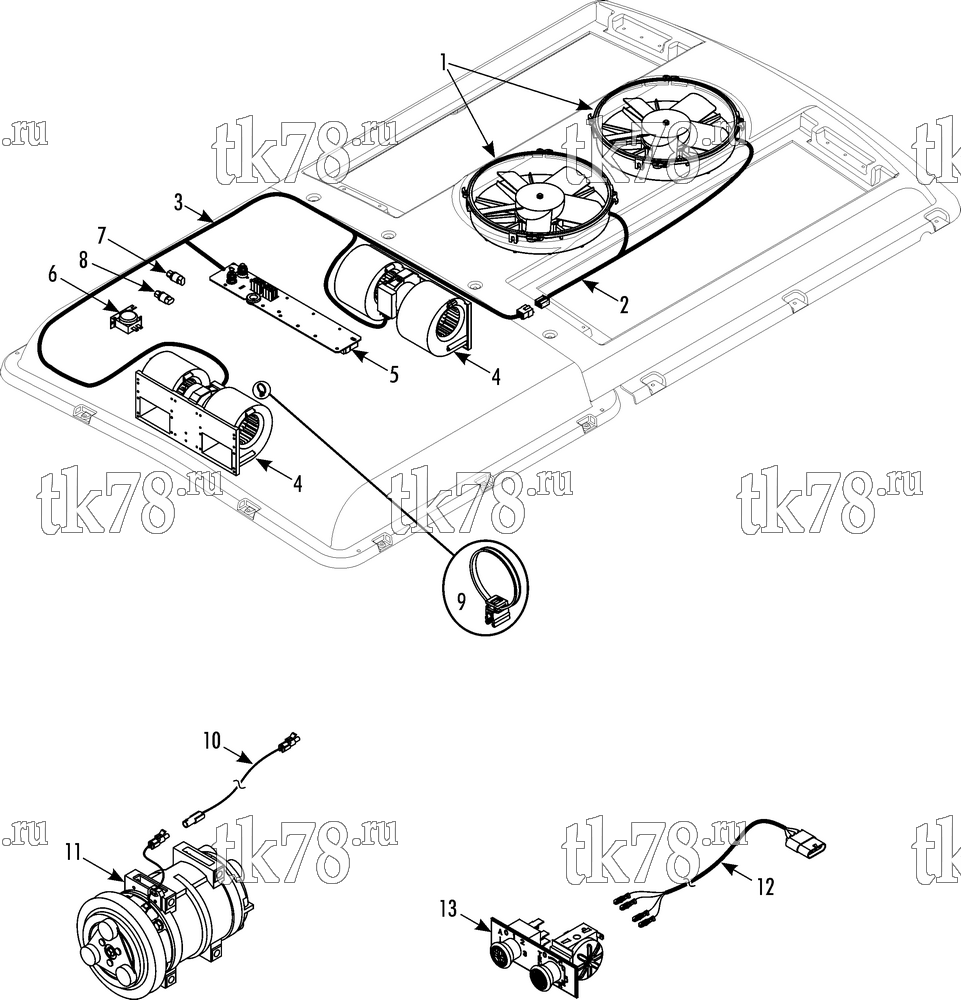

Установкa Thermo King SLR75 for DART схема ELECTRICAL COMPONENTS – 251D9
Обновление от: 4/13/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1392 | FAN (12V, see 249B0) | 2 | |
| 2 | 41-9637 | HARNESS - condenser (see 249C6) | 1 | |
| 3 | 41-9636 | HARNESS - main (see 249C4) | 1 | |
| 4 | 41-1717 | BLOWER - evaporator (12V, see 249C1) | 2 | |
| 5 | NSS | PANEL - control (see 249C3) | 8 | |
| 6 | 41-6844 | THERMOSTAT - freeze (see 251D7) | 1 | |
| 7 | 41-9635 | SWITCH - hpco (see 251D7) | 1 | |
| 41-5070 | SWITCH | 1 | ||
| 8 | 41-9634 | SWITCH - lpco (see 251D7) | 1 | |
| 9 | 51-2041 | CLIP - harness | 8 | |
| 10 | 41-9723 | HARNESS - clutch (see 115D14 for connectors) | 1 | |
| 11 | NSS | COMPRESSOR (see compressor group) | 1 | |
| 12 | 41-9724 | HARNESS - temperature control | 1 | |
| 44-7880 | CONNECTOR - shroud (4-pin, see 115D14 for connectors) | 1 | ||
| 41-9725 | TERMINAL - fingrip | 4 | ||
| 13 | NSS | TEMPERATURE - control (see 249E7) | 1 |
