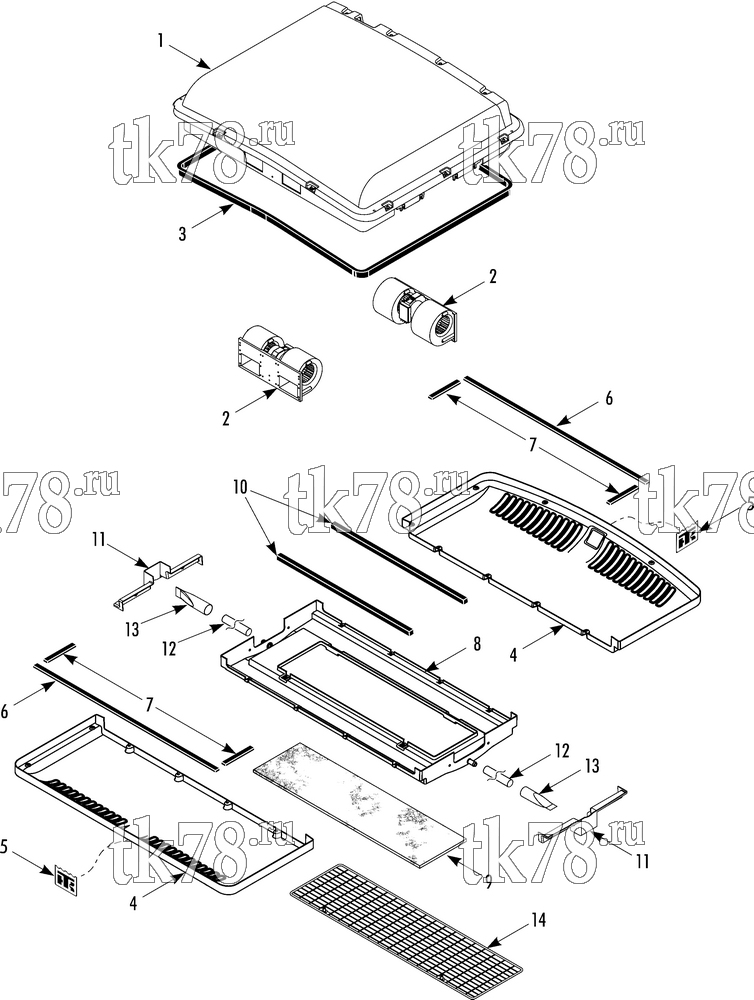

Установкa Thermo King SLR65 схема EVAPORATOR STRUCTUAL & FANS – 249C1
Обновление от: 6/20/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-8603 | FRAME - evaporator | 1 | |
| NSS | SCREW - frame (not supplied by Thermo King) | A/R | ||
| 2 | 41-1717 | BLOWER - evaporator (12V) | 2 | |
| 55-3099 | SCREW - blower | 2 | ||
| 55-4560 | NUT | 2 | ||
| 3 | 33-4743 | GASKET - evaporator (5M) | 1 | |
| 33-4792 | GASKET - evaporator (multiple radii) | 1 | ||
| 4 | 98-8604 | COVER - interior (white) | 2 | |
| 98-8887 | COVER - interior (grey) | 2 | ||
| 5 | 91-3247 | NAMEPLATE - TK Logo | 1 | |
| 6 | 33-4758 | GASKET | 2 | |
| 7 | 41-9731 | GASKET | 4 | |
| 8 | 92-8816 | PAN - drain assembly (white) | 1 | |
| 98-8888 | PAN - drain assembly (grey) | 1 | ||
| 651-297 | SCREW - pan | 6 | ||
| 55-1081 | NUT | 14 | ||
| 9 | 92-8817 | FILTER - return air | 1 | |
| 10 | 33-4759 | GASKET - pan | 2 | |
| 11 | 92-8818 | COVER - side trim (white) | 2 | |
| 98-8889 | COVER - side trim (grey) | 2 | ||
| 12 | 61-5463 | TUBING - drain (.625id x 205 in) | 2 | |
| 55-2330 | BANDWRAP | A/R | ||
| 13 | 66-1273 | VALVE - hose check | 2 | |
| 14 | 98-8724 | GRILLE - return air | 1 | |
| 55-2782 | SCREW - grille | 2 | ||
| 55-7112 | WASHER - special | 2 |
