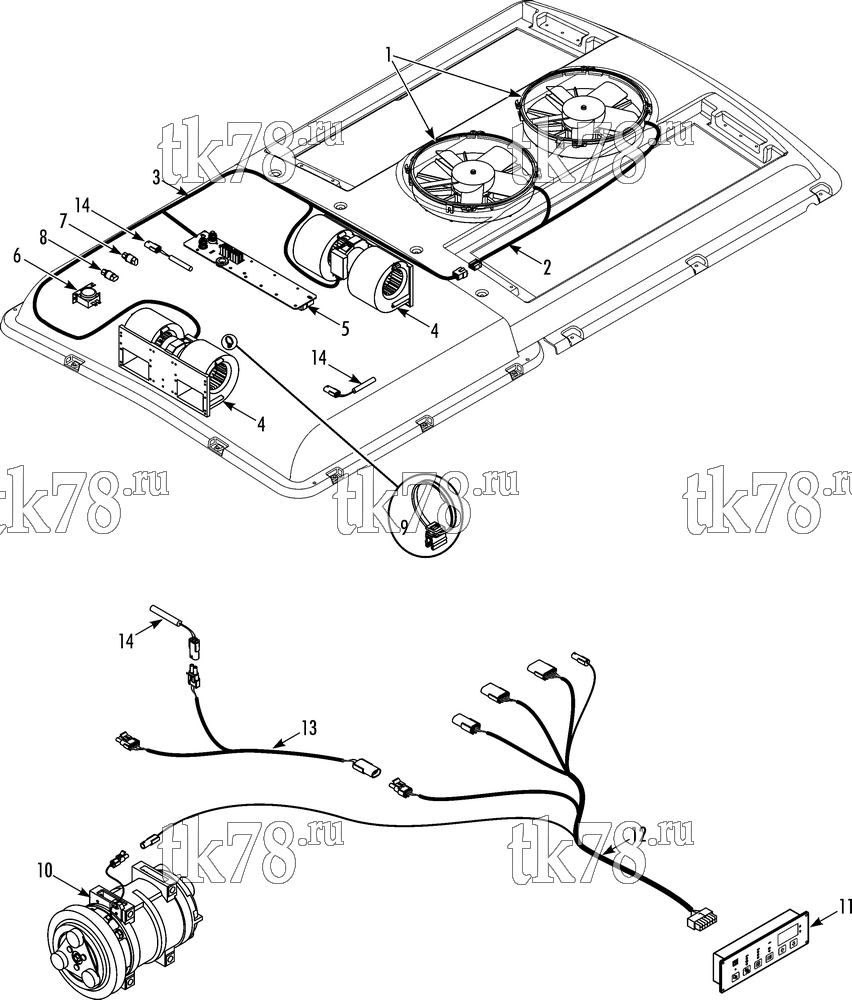

Установкa Thermo King SLR65 for BC TRANSIT схема ELECTRICAL COMPONENTS – 269F3
Обновление от: 6/14/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 78-1392 | FAN (12V, see 249B0) | 2 | |
| 2 | 41-9637 | HARNESS - condenser (see 249C2) | 1 | |
| 3 | 42-1153 | HARNESS - main, motor (see 269F5) | 1 | |
| 4 | 78-1823 | BLOWER - evaporator (12V) | 2 | |
| 5 | NSS | PANEL - control (see 269F4) | 8 | |
| 6 | 41-6844 | THERMOSTAT - freeze (see 269F1) | 1 | |
| 7 | 41-9635 | SWITCH - hpco (see 269F1) | 1 | |
| 41-5070 | SWITCH | 1 | ||
| 8 | 41-9634 | SWITCH - lpco (see 269F1) | 1 | |
| 9 | 51-2041 | CLIP - harness | 8 | |
| 10 | NSS | COMPRESSOR (see compressor group) | 1 | |
| 11 | 41-7211 | ClimaAIRE I D | 1 | |
| 92-5627 | NAMEPLATE - ClimaAIRE I D | 1 | ||
| 12 | 42-1154 | HARNESS - drivers ClimaAIRE I D (see 269F6) | 1 | |
| 13 | 42-1155 | HARNESS - temperature sensor | 1 | |
| 14 | 41-4157 | SENSOR - temperature (see 115D14 for connectors) | 3 |
