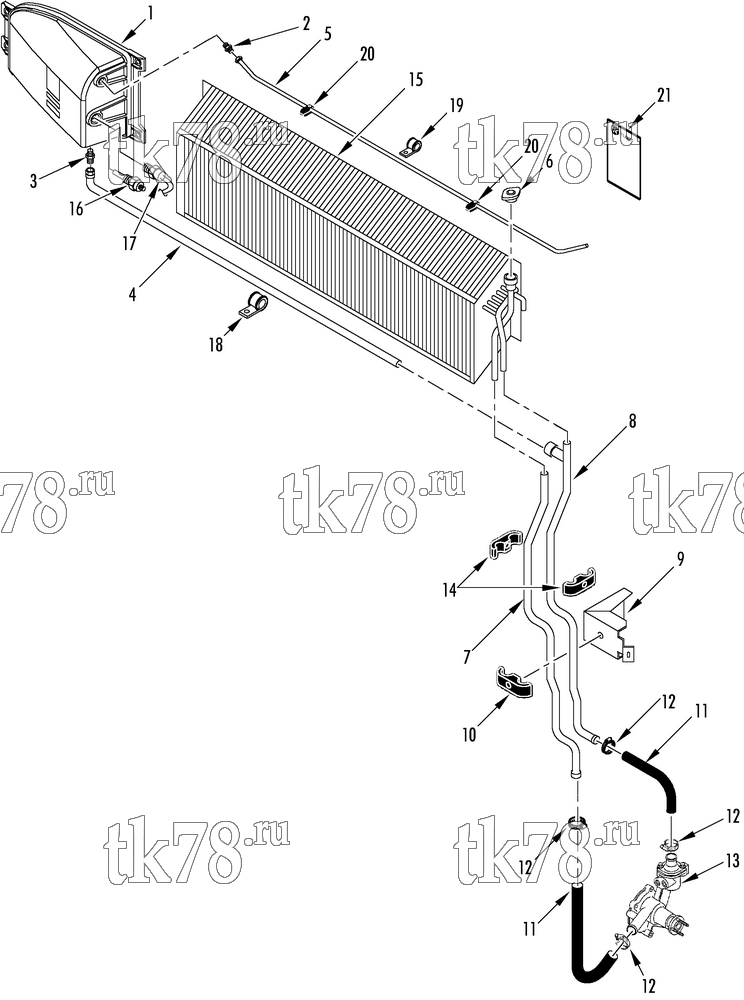

Установкa Thermo King SL-400e схема COOLING SYSTEM (6/00 & After) – 161B9
Обновление от: 3/30/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-792 | TANK - expansion | 1 | |
| 12-792 OEM | Расширительный бачок, SL/SLe | 47 260 ₽ |
|
|
| 2 | 55-459 | COUPLING (1/4 flare) | 1 | |
| 3 | 55-9474 | COUPLING (5/8 flare) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 4 | 11-9322 | TUBE - outlet | 1 | |
| 33-2440 | GROMMET (0.750 id) | 1 | ||
| 5 | 11-9323 | TUBE - vent | 1 | |
| 6 | 11-9242 | CAP - radiator | 1 | |
|
10-11-9242 | Крышка радиатора 10 LBS | 2 370 ₽ |
|
| 7 | 11-9073 | TUBE - radiator inlet | 1 | |
| 8 | 11-9569 | TUBE - water inlet | 1 | |
| 9 | 91-2951 | BRACKET - radiator tube | 1 | |
| 55-5955 | SCREW - bracket | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-4638 | FLATWASHER | 2 | ||
| 55-6991 | INSERT - threaded | 2 | ||
| 10 | 55-7013 | CLAMP - tube | 1 | |
| 55-6990 | SCREW - clamp | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-6991 | INSERT - threaded | 1 | ||
| 11 | 11-9089 | HOSE - engine to radiator (EPDM) | 2 | |
|
10-11-9089 | Шланг системы охлаждения, SL/SLe | 1 960 ₽ |
|
| 11-9077 | HOSE - engine to radiator (silicone) | 2 | ||
| 12 | 55-558 | CLAMP - hose (EPDM) | 4 | |
| 55-3401 | CLAMP - hose (silicone) | 4 | ||
| 13 | 13-509 | PUMP - water (ELC compatible, see 149C12) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 14 | 55-9156 | CLAMP - tube | 4 | |
| 55-6479 | SCREW - clamp | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 15 | 12-582 | COIL - radiator | 1 | |
| 10-12-582 | Радиатор, SL/SLe/SMX/SMX-II | 33 520 ₽ |
|
|
| 11-4921 | NECK - filler | 1 | ||
| 91-4890 | NUTSTRIP - coil | 2 | ||
| 55-2270 | RIVET - nutstrip | 4 | ||
| 33-2183 | SEAL - radiator to condenser (18.0 in) | 1 | ||
| 33-2182 | SEAL - radiator to condenser (1.2 in) | A/R | ||
| 55-6215 | SCREW - coil | 4 | ||
| 55-7069 | FLATWASHER | 8 | ||
| 55-7006 | NUT | 4 | ||
| 16 | 44-6534 | SENSOR - coolant level (SL-100/200/300 & SPECTRUM) | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 55-2539 | BUSHING - sensor (1/8 fpt x 3/8 mpt) | 1 | ||
| 55-4560 | NUT - terminal (for sensor 44-6534) | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 17 | 41-2842 | SENSOR - coolant level (SL-400) | 1 | |
| 18 | 55-4203 | CLAMP - tube | 1 | |
| 55-6994 | SCREW - clamp | 1 | ||
| 55-6996 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6991 | INSERT - threaded | 1 | ||
| 19 | 55-2536 | CLAMP - tube | 3 | |
| 55-7041 | SCREW - clamp | 3 | ||
| 55-7089 | FLATWASHER | 3 | ||
| 55-7404 | LOCKWASHER | 3 | ||
| 55-9365 | NUT - captive | 3 | ||
| 20 | 91-758 | CLAMP - tube | 1 | |
| 55-6990 | SCREW - clamp | 1 | ||
| 55-4638 | FLATWASHER | 1 | ||
| 55-4608 | LOCKWASHER | 1 | ||
| 55-6991 | INSERT - threaded | 1 | ||
| 21 | 91-9269 | NAMEPLATE - extended life coolant | 1 |
