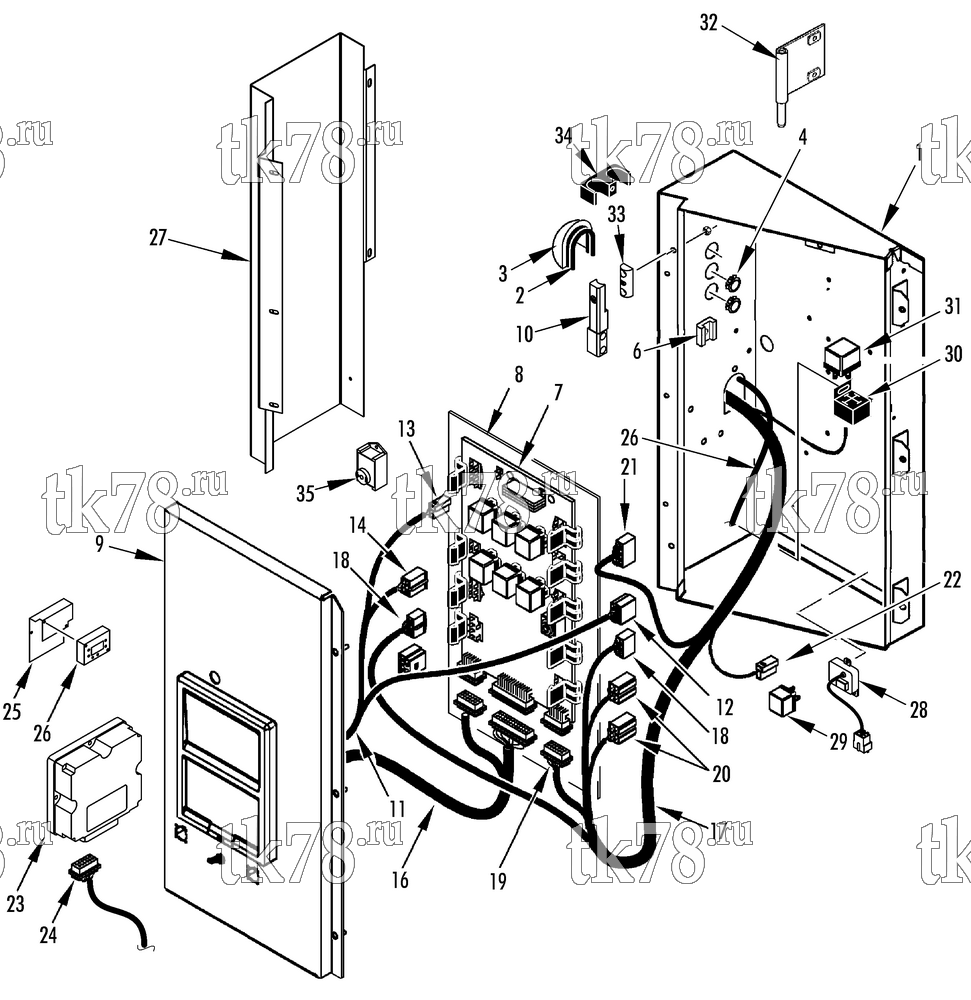

Установкa Thermo King SL-400 схема CONTROL BOX (SL-400 30 ETV) – 167A7
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6016 | BOX - control | 1 | |
| 2 | 33-2786 | GROMMET - shield | 1 | |
| 3 | 91-4503 | COVER - wire | 1 | |
| 33-3283 | GROMMET - springfast | 1 | ||
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 4 | 55-6010 | PLUG - button | 3 | |
| 5 | 41-4649 | INDICATOR - setpoint | 1 | |
| 6 | 99-6093 | MOUNT - cable tie | 7 | |
| 55-4133 | RIVET - mount | 7 | ||
| 7 | 41-3061 | BOARD - relay (see 153E9) | 1 | |
| 55-9763 | NUT - plate | 10 | ||
| 8 | 92-573 | PLATE - relay board | 1 | |
| 9 | NSS | COVER - control box (see 167A8) | 1 | |
| 10 | 92-577 | HINGE | 2 | |
| 55-9480 | SCREW - hinge to cover | 4 | ||
| 55-9481 | SCREW - hinge to box | 4 | ||
| 11 | 41-3764 | HARNESS - switch (see 167A8) | 1 | |
| 12 | 44-5622 | CONNECTOR (6-pin) | 1 | |
| 13 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 14 | 44-9585 | CONNECTOR (2-pin) | 1 | |
| 15 | 41-2860 | HARNESS - ETV | 1 | |
| 16 | 41-3765 | HARNESS - interconnect (see 167A8) | 1 | |
| 44-9768 | RECEPTACLE (36-pin) | 1 | ||
| 44-9769 | LOCK - connector | 1 | ||
| 17 | 41-4123 | HARNESS - main | 1 | |
| 18 | 44-5030 | CONNECTOR (6-pin) | 2 | |
| 19 | 44-9853 | RECEPTACLE (18-pin) | 1 | |
| 44-9854 | LOCK - receptacle | 1 | ||
| 20 | 44-5814 | CONNECTOR (4-pin) | 2 | |
| 21 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 22 | 44-6451 | CONNECTOR (1-pin) | 1 | |
| 23 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 55-5754 | NUT - datalogger | 6 | ||
| 55-3013 | FLATWASHER | 6 | ||
| 24 | 41-3767 | HARNESS - DAS (see 167A8) | 1 | |
| 44-9853 | RECEPTACLE (18-pin) | 1 | ||
| 44-9854 | LOCK - receptacle | 1 | ||
| 25 | 92-574 | BRACKET - controller | 1 | |
| 26 | 41-3355 | CONTROLLER - damper gear motor | 1 | |
| 10-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 38 690 ₽ |
|
|
|
PP-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 20 370 ₽ |
|
| 27 | 92-1168 | SHIELD - harness | 1 | |
| 55-9693 | SCREW - shield | 5 | ||
| 28 | 41-7067 | MODULE - timer | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 44-5827 | CONNECTOR - male (4-pin) | 1 | ||
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 55-9979 | SCREW (nylon) | 3 | ||
| 55-9980 | LOCKWASHER (nylon) | 3 | ||
| 55-9981 | NUT (nylon) | 3 | ||
| 55-8430 | SPACER - module | 3 | ||
| 29 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 | |
| 30 | 41-1325 | SOCKET - relay | 1 | |
| 31 | 41-478 | RELAY (1 pst) | 1 | |
| 32 | 91-8275 | HINGE - swing (control box) | 1 | |
| 55-2977 | SCREW - control box | 2 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 33 | 92-575 | SPACER - hinge to control box | 2 | |
| 34 | 91-2803 | CLAMP - harness | 2 | |
| 55-9967 | SCREW - clamp | 2 |
