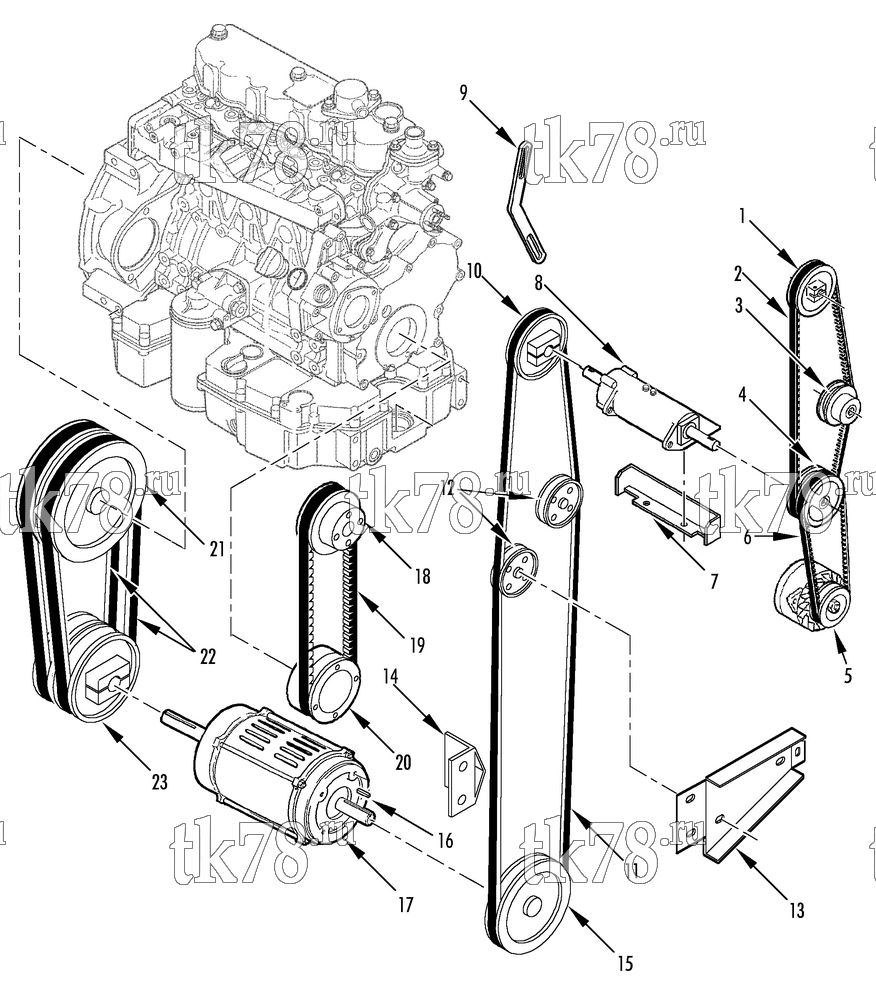

Установкa Thermo King SL-400 схема BELT GROUP (50s) – 148B13
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 77-2036 | PULLEY - fanshaft | 1 | |
| 77-2605 | PULLEY - fanshaft (5.87 dia, SL-300/400) | 1 | ||
| 55-6479 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-457 | KEY | 1 | ||
| 2 | 78-978 | BELT - idler to fan | 1 | |
|
10-78-978 | Ремень вентиляторов, SL | 3 930 ₽ |
|
|
PP-78-978 | Ремень вентиляторов, SL | 2 080 ₽ |
|
| 78-983 | BELT - idler to fan (SL-300/400) | 1 | ||
|
10-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 4 880 ₽ |
|
| PP-78-983 | Ремень вентиляторов, SL-400/SMX после 93г. | 3 590 ₽ |
|
|
| 3 | 77-2043 | PULLEY - idler (see 100B11) | 1 | |
| 91-4833 | PLATE - idler | 1 | ||
| 55-7571 | SCREW - plate | 1 | ||
| 55-5914 | FLATWASHER | 1 | ||
| 55-7569 | WASHER - special | 1 | ||
| 55-7570 | WASHER - special | 1 | ||
| 55-7003 | LOCKNUT | 1 | ||
| 4 | 77-2134 | PULLEY - jackshaft to fanshaft | 1 | |
| 55-457 | KEY | 2 | ||
| 55-6479 | SCREW - pulley | 4 | ||
| 55-790 | LOCKWASHER | 4 | ||
| 5 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 77-2022 | PULLEY - alternator (SL-100, 200, 300, & 400) | 1 | ||
| 6 | 78-336 | BELT - alternator | 1 | |
| 10-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 3 840 ₽ |
|
|
| PP-78-336 | Ремень генератора, SL/SMX 50 после 93г. | 980 ₽ |
|
|
| 7 | 91-4831 | ANGLE - jackshaft | 1 | |
| 55-4723 | SCREW - angle | 2 | ||
| 55-5006 | LOCKWASHER | 2 | ||
| 55-2769 | FLATWASHER | 2 | ||
| 91-4832 | NUTPLATE | 2 | ||
| 8 | 78-830 | JACKSHAFT (see 100F11) | 1 | |
| 55-8971 | SCREW - jackshaft | 2 | ||
| 55-7069 | FLATWASHER | 1 | ||
| 55-2292 | WASHER - special | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7006 | NUT | 2 | ||
| 9 | 91-4834 | ARM - adjusting | 1 | |
| 55-6215 | SCREW - arm | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-7069 | FLATWASHER | 2 | ||
| 55-2769 | WASHER - special | 2 | ||
| 55-7006 | NUT | 2 | ||
| 10 | 77-2206 | PULLEY - engine to jackshaft | 1 | |
| 11 | 78-928 | BELT - motor to jackshaft | 1 | |
| 10-78-928 | Ремень электромотор - промвал, SL/SMX 50 после 93г. | 9 040 ₽ |
|
|
|
PP-78-928 | Ремень электромотор - промвал, SL/SMX 50 после 93г. | 3 610 ₽ |
|
| 78-1085 | BELT - motor to jackshaft (R22 option, high RPM option) | 1 | ||
| 10-78-1085 | Ремень двигатель - промвал, SL-400 30 | 6 170 ₽ |
|
|
| PP-78-1085 | Ремень двигатель - промвал, SL-400 30 | 3 200 ₽ |
|
|
| 12 | 77-2525 | PULLEY - idler (assembly, see 152A14) | 1 | |
| 77-2525 OEM | Шкив, SL | 27 770 ₽ |
|
|
| 13 | 91-9349 | BRACKET - tensioner (see 152A14) | 1 | |
| 14 | 91-9350 | GUARD - belt (see 152A14) | 1 | |
| 15 | 77-2401 | PULLEY - fan drive | 1 | |
| 77-2480 | PULLEY - fan drive (SL-300400) | 1 | ||
| 55-6574 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 16 | 55-7482 | KEY - motor | 2 | |
| 17 | 104-735 | MOTOR (230-460/3/50-60, see 149A13) | 1 | |
| 18 | 11-9451 | PUMP - water (ELC compatible, see 142F7) | 1 | |
| 77-1346 | SPACER - pulley | 1 | ||
| 55-144 | SCREW | 3 | ||
| 55-371 | FLATWASHER | 3 | ||
| 55-421 | LOCKWASHER (internal thread) | 3 | ||
| 19 | 78-1340 | BELT | 1 | |
|
20-78-1968 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 5 210 ₽ |
|
| 10-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 3 460 ₽ |
|
|
|
PP-78-1340 | Ремень водяного насоса, SL/SLe/SLX/SLXe | 890 ₽ |
|
| 20 | 70-212 | PULLEY - crankshaft | 1 | |
| 21 | 107-342 | CLUTCH - 8-pin small shaft (SL-200) | 1 | |
| 107-343 | CLUTCH (8-pin large shaft, SL TCI, SL-300 & SL-400) | 1 | ||
|
10-107-343 | Сцепление, 8 втулок (large shaft) | 130 520 ₽ |
|
| 70-194 | KIT - clutch repair (for clutch 104-274) | 1 | ||
| 55-9092 | SCREW - clutch to compressor | 1 | ||
| 55-4002 | WASHER (small shaft) | 1 | ||
| 55-9232 | WASHER (large shaft) | 1 | ||
| 55-9032 | KEY | 1 | ||
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 22 | 78-617 | BELT - clutch (matched pair) | 1 | |
| 10-78-617 | Пара ремней двигатель - электромотор, SL/SMX | 8 690 ₽ |
|
|
| PP-78-617 | Пара ремней двигатель - электромотор, SL/SMX | 4 430 ₽ |
|
|
| 78-924 | BELT - clutch (SL-400 & high capacity SL-200) | 1 | ||
|
10-78-924 | Пара ремней двигатель - электромотор, SL-400 | 9 650 ₽ |
|
| PP-78-924 | Пара ремней двигатель - электромотор, SL-400 | 4 820 ₽ |
|
|
| 23 | 77-2040 | PULLEY - clutch | 1 | |
| 77-2478 | PULLEY - clutch (SL-400 & high capacity SL-200) | 1 | ||
| 55-6574 | SCREW - pulley | 2 | ||
| 55-790 | LOCKWASHER | 2 |
