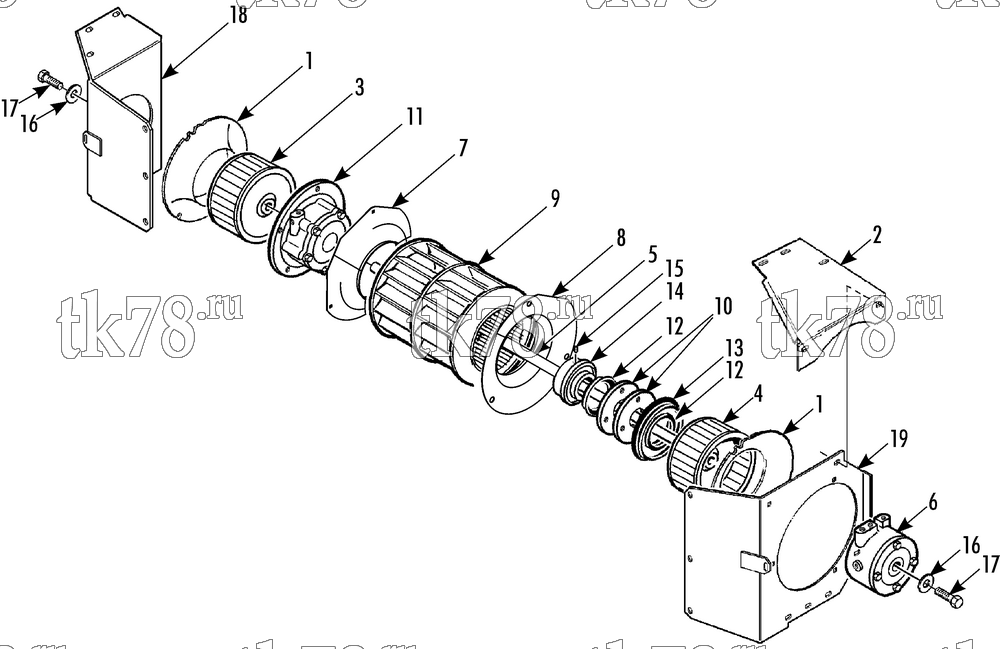

Установкa Thermo King SL-400 схема BLOWERS GROUP – 136E10
Обновление от: 5/31/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-7605 | ORIFICE - condenser (metal) | 2 | |
| 91-8541 | ORIFICE - condenser (plastic) | 2 | ||
| 55-5955 | SCREW - spinning | 21 | ||
| 55-405 | WASHER - dome | 11 | ||
| 55-6997 | NUT - captive | 6 | ||
| 55-5424 | SCREW (M8) | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 55-2769 | WASHER - special | 1 | ||
| 2 | 91-7608 | PANEL - access (upper) | 1 | |
| 55-5955 | SCREW - panel | 5 | ||
| 55-405 | WASHER - dome | 5 | ||
| 55-7012 | NUT - captive | 3 | ||
| 3 | 70-180 | KIT - blower & orifice (curbside, see note) | 1 | |
| 78-1096 | WHEEL - blower (condenser, curbside, plastic) | 1 | ||
| 4 | 70-181 | KIT - blower & orifice (roadside, see note) | 1 | |
| 78-1095 | WHEEL - blower (condenser, roadside, plastic) | 1 | ||
| 77-2031 | HUB - wheel (curbside) | 1 | ||
| 77-2027 | HUB - wheel (roadside) | 1 | ||
| 55-3240 | KEY - hub (square) | 1 | ||
| 55-457 | KEY - hub (woodruff) | 1 | ||
| 77-2028 | RING - hub | 1 | ||
| 55-6987 | SCREW - hub to wheel | 4 | ||
| 55-7066 | LOCKWASHER | 4 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 55-6992 | SCREW - hub to shaft | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 55-4613 | FLATWASHER | 2 | ||
| 5 | 77-2527 | SHAFT - fan | 1 | |
| 6 | 70-196 | BEARING (roadside, see 100B8) | 1 | |
| 91-2929 | NUTPLATE - housing | 2 | ||
| 55-6987 | SCREW - housing | 4 | ||
| 55-7342 | LOCKWASHER | 4 | ||
| 55-6988 | FLATWASHER | 4 | ||
| 7 | 78-1253 | ORIFICE - evaporator (curbside) | 1 | |
| 8 | 78-1254 | ORIFICE - evaporator (roadside) | 1 | |
| 55-6994 | SCREW - orifice | 7 | ||
| 55-3045 | WASHER - dome | 7 | ||
| 55-6997 | NUT | 7 | ||
| 9 | 78-1179 | WHEEL - blower (evaporator) | 1 | |
| 78-894 | WHEEL - blower (evaporator) | 1 | ||
| 77-2030 | HUB - wheel | 1 | ||
| 77-2028 | RING - hub | 1 | ||
| 55-3240 | KEY | 1 | ||
| 55-7080 | SCREW - hub to shaft | 2 | ||
| 55-7066 | LOCKWASHER | 2 | ||
| 55-6988 | FLATWASHER | 2 | ||
| 10 | 91-5110 | PLATE - seal | 2 | |
| 55-6994 | SCREW - plate | 8 | ||
| 55-3045 | LOCKWASHER - dome | 8 | ||
| 55-6991 | INSERT - threaded | 8 | ||
| 11 | 77-2530 | KIT - bearing (curbside, see 100B10) | 1 | |
| 55-7839 | SCREW - housing | 3 | ||
| 55-8537 | LOCKWASHER | 3 | ||
| 55-4931 | FLATWASHER | 3 | ||
| 12 | 33-2180 | SEAL - v-ring (1.93 id) | 2 | |
| 13 | 33-2179 | SEAL - v-ring (2.48 id) | 1 | |
| 14 | 77-2029 | COLLAR - shaft seal | 1 | |
| 15 | 55-4731 | SCREW - set | 1 | |
| 16 | 55-7196 | WASHER - special | 2 | |
| 17 | 55-5424 | SCREW - shaft | 2 | |
| 18 | 91-7607 | PANEL - blower (curbside) | 1 | |
| 19 | 91-7606 | PANEL - blower (roadside) | 1 |
