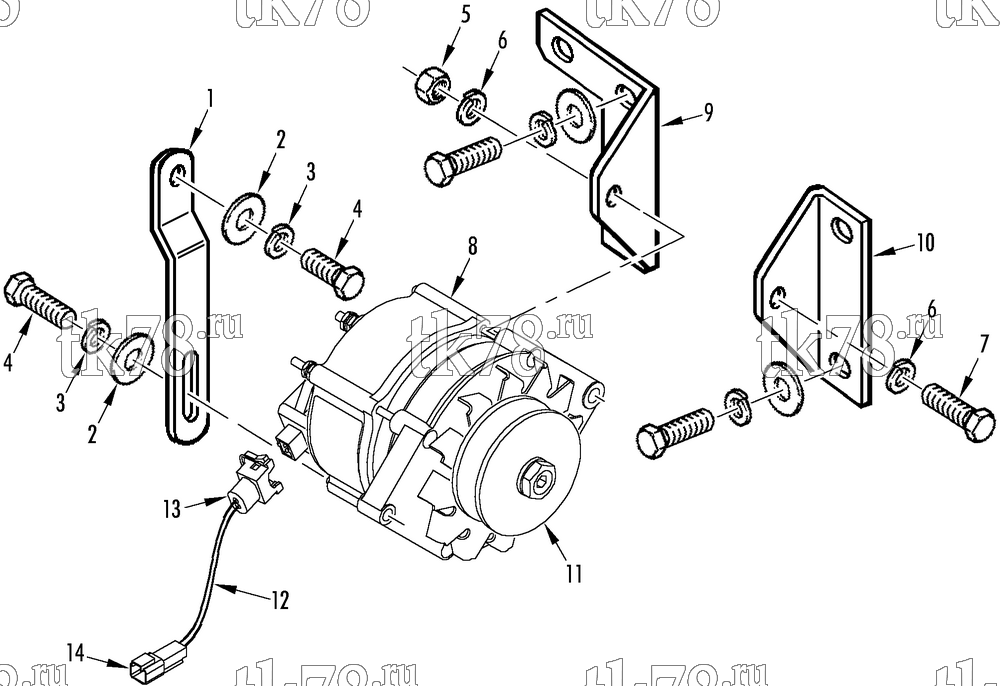

Установкa Thermo King SL-400 схема ALTERNATOR MOUNTING – 111E13
Обновление от: 11/28/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 91-4843 | ARM - alternator adjusting | 1 | |
| 2 | 55-2292 | WASHER - special | 2 | |
| 3 | 55-790 | LOCKWASHER | 4 | |
| 4 | 55-5424 | SCREW - arm to jackshaft | 4 | |
| 5 | 55-7005 | NUT | 1 | |
| 6 | 55-7072 | FLATWASHER | 2 | |
| 7 | 55-8586 | SCREW - alternator | 1 | |
| 8 | 45-2254 | ALTERNATOR (37 amp, see 208F4) | 1 | |
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 41-8461 | ALTERNATOR (37 amp, Standard Life Plus) | 1 | ||
|
|
10-41-6780 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
|
|
10-45-2589 | Генератор 37A, SB-XXX/SMX/SMX-II/SL/SLe SB-II/III | 13 870 ₽ |
|
| 845-2254 | ALTERNATOR (37 amp, remanufactured) | 1 | ||
| 45-2256 | ALTERNATOR (65 amp, see 242F5) | 1 | ||
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 41-8463 | ALTERNATOR (65 amp, Standard Life Plus, CW) | 1 | ||
|
|
10-45-2590 | Генератор 65A, UT800/1200 | 13 870 ₽ |
|
|
|
10-41-6781 | Генератор 65A, SB-XXX/SMX/SMX-II/SL/SLe/SLX/SLXe SB-II/III | 13 840 ₽ |
|
| 845-2256 | ALTERNATOR (65 amp remanufactured) | 1 | ||
| 45-2258 | ALTERNATOR (120 amp, Multi-Temp, see 208F6) | 1 | ||
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 41-8465 | ALTERNATOR (120 amp new exchange) | 1 | ||
|
|
10-41-6782 | Генератор 120A, SB-XXX/SB-III/SMX/SMX-II/SL/SLe | 14 230 ₽ |
|
| 845-2258 | ALTERNATOR (120 amp remanufactured) | 1 | ||
| 9 | 91-4845 | BRACKET - alternator (curbside) | 1 | |
| 10 | 91-4844 | BRACKET - alternator (roadside) | 1 | |
| 55-6215 | SCREW - bracket | 5 | ||
| 55-790 | LOCKWASHER | 5 | ||
| 55-7069 | FLATWASHER | 5 | ||
| 11 | 77-2022 | PULLEY (50s) | 1 | |
| 77-2144 | PULLEY (30s) | 1 | ||
| 12 | 41-213 | HARNESS - alternator | 1 | |
| 13 | 44-9607 | CONNECTOR - alternator | 1 | |
| 41-277 | TERMINAL | 2 | ||
| 14 | 44-9589 | RECEPTACLE (2-pin, see 112D9) | 1 |
