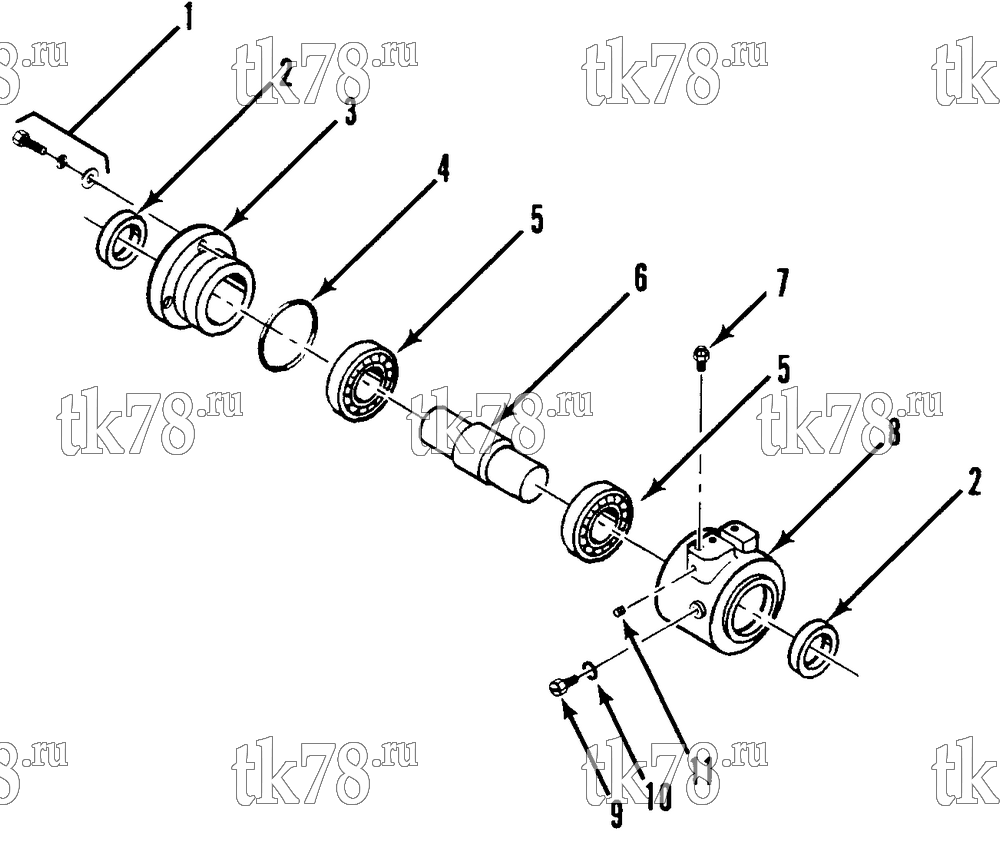

Установкa Thermo King SL-200e Tier 2 Engine схема BEARING ASSEMBLY (ROADSIDE) – 100B10
Обновление от: 3/9/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 70-196 | KIT - bearing | 1 | ||
| 1 | 55-5424 | SCREW - end cap | 4 | |
| 55-790 | LOCKWASHER | 4 | ||
| 55-7069 | FLATWASHER | 4 | ||
| 2 | 33-2135 | SEAL - oil | 2 | |
| 33-2135 OEM | Сальник вала вентиляторов, SL/SMX | 2 600 ₽ |
|
|
| 10-33-2135 | Сальник вала вентиляторов, SL/SMX | 1 030 ₽ |
|
|
| 203-278 | GREASE (gallon) | A/R | ||
| 3 | 91-4161 | CAP - end | 1 | |
| 91-3149 | SHIM (0.005 thk) | A/R | ||
| 91-3150 | SHIM (0.007 thk) | A/R | ||
| 91-2938 | SHIM (0.020 thk) | A/R | ||
| 4 | 33-2181 | O-RING | 1 | |
| 5 | 77-2538 | BEARING & CUP | 1 | |
| 77-2538 OEM | Подшипник вала вентиляторов, SL/SLe/SMX/SMX-II | 17 400 ₽ |
|
|
|
10-77-2538 | Подшипник вала вентиляторов, SL/SLe/SMX/SMX-II | 1 770 ₽ |
|
| 6 | 77-2529 | RACE - inner | 1 | |
| 77-2529 OEM | Вал левой опоры вентилятора SMX/SL/SLe | 20 770 ₽ |
|
|
| 7 | 55-6418 | VENT - air | 1 | |
| 55-6416 | CAP | 1 | ||
| 8 | 77-2032 | RACE - outer | 1 | |
| 9 | 55-3350 | SCREW - oil plug | 1 | |
| 10 | 33-1009 | O-RING | 1 | |
| 11 | 55-2909 | PLUG - pipe | 1 |
