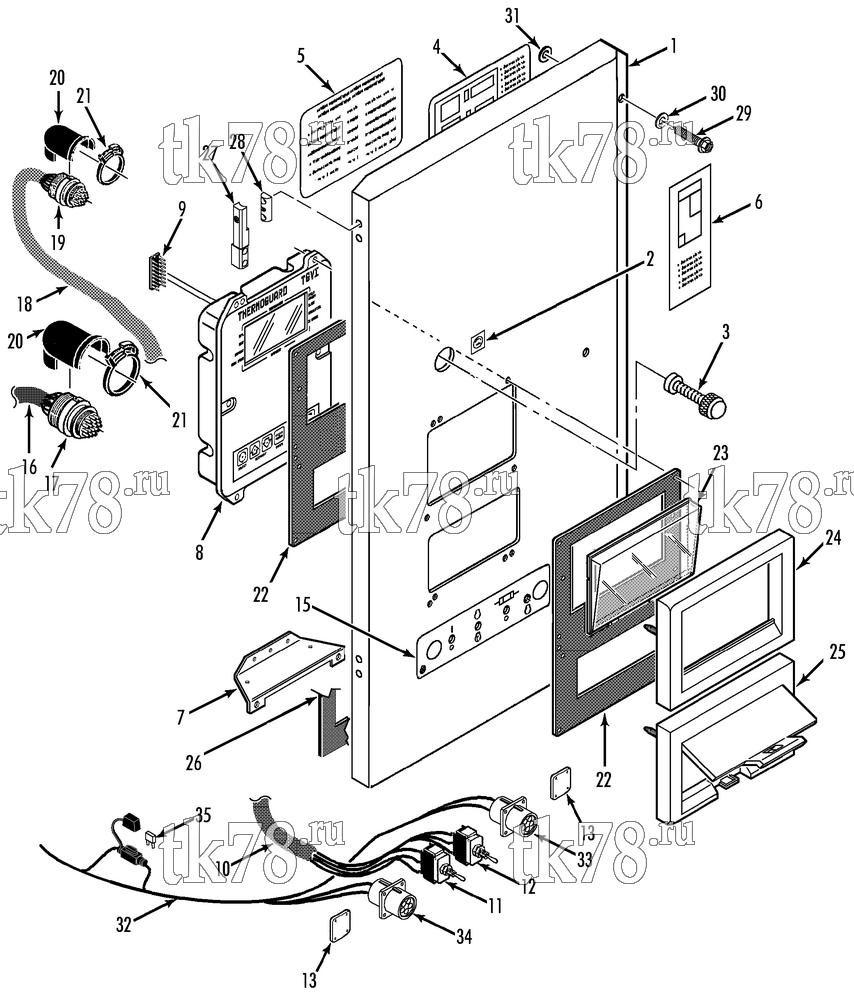

Установкa Thermo King SL-100e схема CONTROL BOX COVER (SL-100e/200e 50 w/ TG VI) – 173B5
Обновление от: 5/3/09
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6287 | COVER - control box | 1 | |
| 2 | 91-606 | NAMEPLATE - reset | 1 | |
| 3 | 44-8413 | BUTTON - reset | 1 | |
| 91-606 | NAMEPLATE - reset button | 1 | ||
| 4 | 92-174 | NAMEPLATE - relay board | 1 | |
| 5 | 91-9362 | NAMEPLATE - factory settings | 1 | |
| 6 | 92-1951 | NAMEPLATE - relay | 1 | |
| 7 | 91-7140 | BRACKET - harness | 1 | |
| 8 | 45-2180 | CONTROLLER - microprocessor (Cycle Sentry) | 1 | |
| 45-1767 OEM | Контроллер TG VI, SL/SLe | по запросу |
|
|
| 45-2181 | CONTROLLER - microprocessor (Cycle Sentry & modulation) | 1 | ||
| 9 | 40-931 | KIT - eprom chip | 1 | |
| 91-8114 | FACEPLATE | 1 | ||
| 10-91-8114 | Панель кнопок, SL-100e/200e | 4 250 ₽ |
|
|
| 55-4976 | SCREW - controller (1 in long) | 6 | ||
| 55-5612 | SCREW - controller (1-1/4 in long) | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 10 | 41-4655 | HARNESS - switch | 1 | |
| 11 | 41-4165 | SWITCH - on/off | 1 | |
| 41-2020 | RESISTOR (1 Kohm) | 1 | ||
| 12 | 44-7930 | SWITCH - diesel/electric | 1 | |
| 13 | 91-7718 | COVER - tracker | 1 | |
| 92-1910 | COVER - DAS | 1 | ||
| 15 | 92-1934 | NAMEPLATE - switch panel (50) | 1 | |
| 16 | 41-4653 | HARNESS - sensor | 1 | |
| 17 | 41-744 | CONNECTOR - circular (19-pin, see 166C9) | 1 | |
| 18 | 41-4654 | HARNESS - interconnect | 1 | |
| 19 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 20 | 41-2255 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 21 | 55-7618 | CLAMP (plastic) | 2 | |
| 91-7143 | BEZEL - TG VI (complete) | 1 | ||
| 22 | 33-2797 | GASKET - bezel | 2 | |
| 23 | 91-7142 | WINDOW - bezel | 1 | |
| 24 | 91-7141 | BEZEL (upper) | 1 | |
| 25 | 91-7926 | BEZEL (lower) | 1 | |
| 26 | 33-2973 | GASKET - control box | 1 | |
| 27 | 92-577 | HINGE - door | 4 | |
| 55-9480 | SCREW - hinge to box | 2 | ||
| 55-9481 | SCREW - hinge to door | 2 | ||
| 28 | 92-575 | SPACER - hinge | 2 | |
| 29 | 55-9482 | SCREW - cover | 3 | |
| 30 | 55-7089 | FLATWASHER - sealing | 3 | |
| 31 | 55-9483 | WASHER - retaining | 3 | |
| 32 | 41-3766 | HARNESS - DAS | 1 | |
| 41-4295 | HARNESS - R-COM | 1 | ||
| 44-8329 | RECEPTACLE (DAS printer) | 1 | ||
| 33 | 44-8333 | CAP - receptacle | 1 | |
| 99-3685 | CHAIN - cap | 1 | ||
| 34 | 41-2405 | CONNECTOR - receptacle (DAS download) | 1 | |
| 41-2406 | CAP - receptacle | 1 | ||
| 99-3685 | CHAIN - cap | 1 | ||
| 35 | 41-1932 | FUSE (1 amp, RCOM & 8 circuit) | 1 | |
| 41-2543 | FUSE (2 amp, PA circuit) | 1 |
