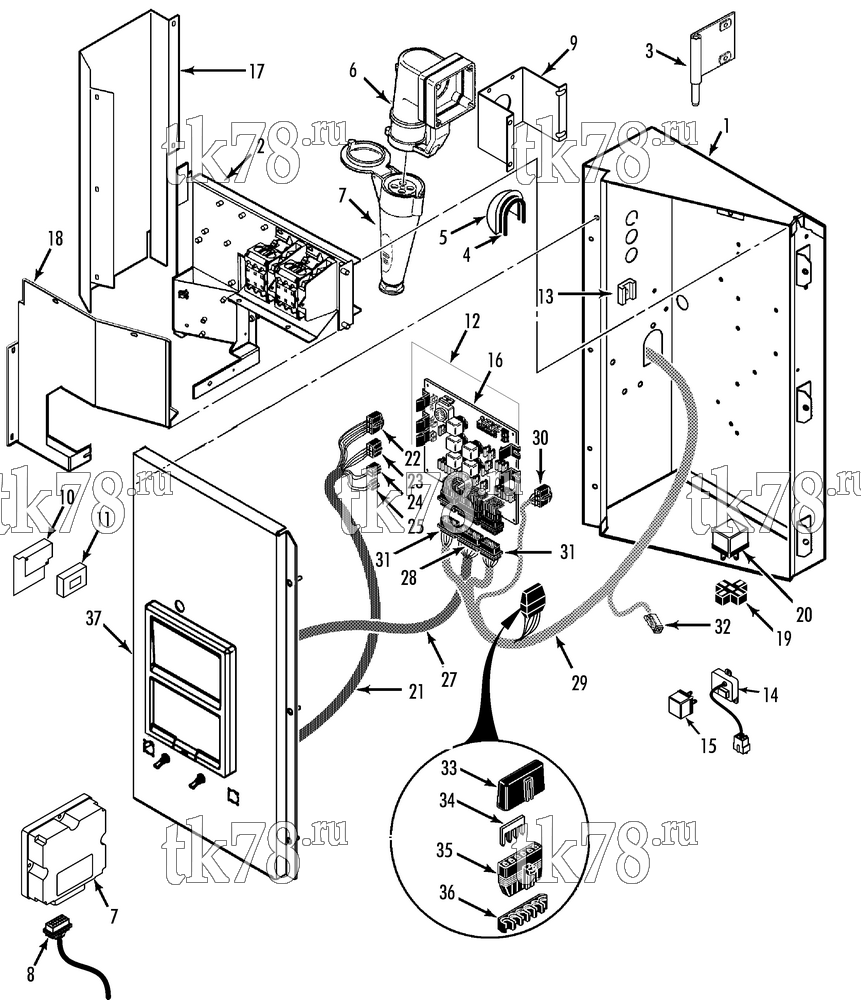

Установкa Thermo King SL-100e схема CONTROL BOX (SL-100e/200e, 50s) – 173B4
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-6016 | BOX - control | 1 | |
| 2 | NSS | TRAY - high voltage (see 166C9) | 1 | |
| 55-2991 | SCREW - tray | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 3 | 91-8275 | HINGE - swing (control box) | 2 | |
| 55-1587 | SCREW - hinge | 4 | ||
| 55-2977 | SCREW - control box | 2 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 4 | 33-3870 | GASKET - shield | 1 | |
| 5 | 92-3139 | COVER - wire | 1 | |
| 33-3283 | GROMMET | 1 | ||
| 55-1587 | SCREW - cover | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 6 | 41-519 | RECEPTACLE - power (380/3/50, mates w/ 41-520) | 1 | |
| 99-9052 | COVER - receptacle | 1 | ||
| 33-1697 | GASKET - receptacle | 1 | ||
| 55-2750 | SCREW - receptacle | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-4223 | NUT | 4 | ||
| 7 | 45-2247 | DATALOGGER - DAS IV | 1 | |
| 8 | 41-3253 | HARNESS - sensor (DAS) | 1 | |
| 44-9853 | RECEPTACLE (18-pin) | 1 | ||
| 44-9854 | LOCK - receptacle | 1 | ||
| 9 | 92-1169 | BRACKET - receptacle | 1 | |
| 55-9966 | SCREW - bracket | 4 | ||
| 55-7089 | FLATWASHER | 4 | ||
| 55-7034 | NUT | 4 | ||
| 55-5112 | CONNECTOR - harness | 1 | ||
| 10 | 92-574 | BRACKET - controller | 1 | |
| 11 | 41-3355 | CONTROLLER - damper gear motor | 1 | |
| 10-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 38 690 ₽ |
|
|
|
PP-41-3355 | Контроллер заслонки, SMX/SMX-II/SL/SLe | 20 370 ₽ |
|
| 12 | 92-1932 | PLATE - pc board | 1 | |
| 55-9763 | NUT - plate | 16 | ||
| 13 | 99-6093 | MOUNT - cable tie | 7 | |
| 55-4133 | RIVET - mount | 7 | ||
| 14 | 41-7067 | MODULE - timer | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 44-5827 | CONNECTOR - male (4-pin) | 1 | ||
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 55-9979 | SCREW - module | 3 | ||
| 55-9980 | WASHER - module | 6 | ||
| 55-9981 | NUT - module | 3 | ||
| 55-8430 | SPACER - module | 3 | ||
| 15 | 41-893 | RELAY - solenoid timer (used with previous solenoid timers) | 1 | |
| 16 | 41-3727 | BOARD - relay (see 173A6) | 1 | |
| 55-9477 | SCREW - board | 11 | ||
| 55-2998 | LOCKWASHER (internal tooth) | 11 | ||
| 17 | 92-1168 | SHIELD - harness (control box) | 1 | |
| 55-3027 | SCREW - shield | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 18 | 92-1167 | SHIELD - high voltage | 1 | |
| 55-9967 | SCREW - shield | 5 | ||
| 55-2964 | LOCKWASHER | 5 | ||
| 55-2001 | FLATWASHER | 5 | ||
| 19 | 41-1325 | SOCKET - mini plug (intake heater) | 1 | |
| 20 | 41-478 | RELAY (70 amp) | 1 | |
| 21 | 41-4655 | HARNESS - switch | 1 | |
| 22 | 44-5719 | CONNECTOR (8-pin) | 1 | |
| 23 | 44-5224 | CONNECTOR (4-pin) | 1 | |
| 24 | 44-5219 | CONNECTOR (2-pin) | 1 | |
| 25 | 44-6519 | CONNECTOR (2-pin) | 1 | |
| 26 | 41-4653 | HARNESS - sensor | 1 | |
| 27 | 41-4654 | HARNESS - interconnect | 1 | |
| 28 | 44-9768 | RECEPTACLE (36-pin) | 1 | |
| 44-9769 | LOCK - connector | 1 | ||
| 29 | 41-4652 | HARNESS - main | 1 | |
| 30 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 31 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 32 | 44-8920 | RECEPTACLE - remote lights | 1 | |
| 33 | 41-1787 | COVER - connector | 1 | |
| 34 | 41-2651 | BUSBAR (4-pin) | 1 | |
| 35 | 41-1789 | CONNECTOR - tower (6-pin) | 1 | |
| 36 | 41-1790 | LOCK - secondary (6-pin connector) | 1 | |
| 37 | NSS | COVER - control box (see 173B5) | 1 |
