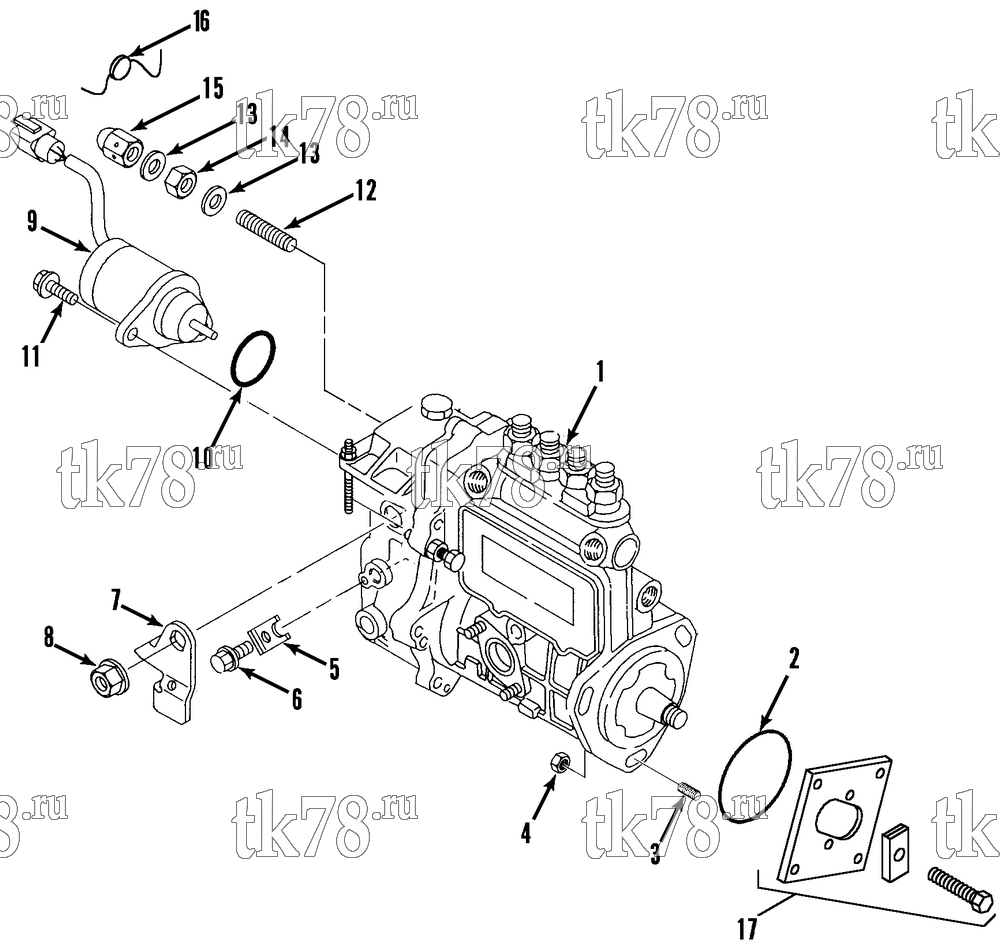

Установкa Thermo King SL-100e схема FUEL INJECTION PUMP GROUP (TK482E, Engines Manufactured 1/99 & After) – 152D7
Обновление от: 3/24/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 101-322 | PUMP - fuel injection (TK 482E) | 1 | |
| 2 | 33-1953 | O-RING - injection pump | 1 | |
| 3 | 55-5784 | STUD - injection pump | 3 | |
| 4 | 55-5810 | NUT | 3 | |
| 5 | 11-6125 | RETAINER - shaft | 1 | |
| 6 | 55-5822 | SCREW - retainer | 1 | |
| 7 | 12-925 | LEVER - control | 1 | |
| 8 | 55-5810 | NUT | 1 | |
| 9 | 42-100 | SOLENOID - stop | 1 | |
|
10-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 8 670 ₽ |
|
| PP-42-100 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 4 870 ₽ |
|
|
|
PP-41-6383 | Соленоид отсечки топлива, SB/SL/SLe/SLX/SLXe/TS/T-Series | 2 000 ₽ |
|
| 10 | 33-2230 | O-RING - solenoid | 1 | |
|
10-33-2230 | Уплотнительное кольцо соленоида отсечки топлива | 490 ₽ |
|
| 11 | 55-8448 | SCREW - solenoid | 2 | |
| 12 | 55-8870 | BOLT - fuel control | 1 | |
| 13 | 55-8620 | WASHER - sealing | 2 | |
| 14 | 55-4615 | NUT | 1 | |
| 15 | 55-4670 | NUT - cap | 1 | |
| 16 | 11-5170 | SEAL - lead | 1 | |
| 11-9205 | SEAL - lead | 1 | ||
| 17 | 204-1011 | TOOL - injection pump gear remover | 1 |
