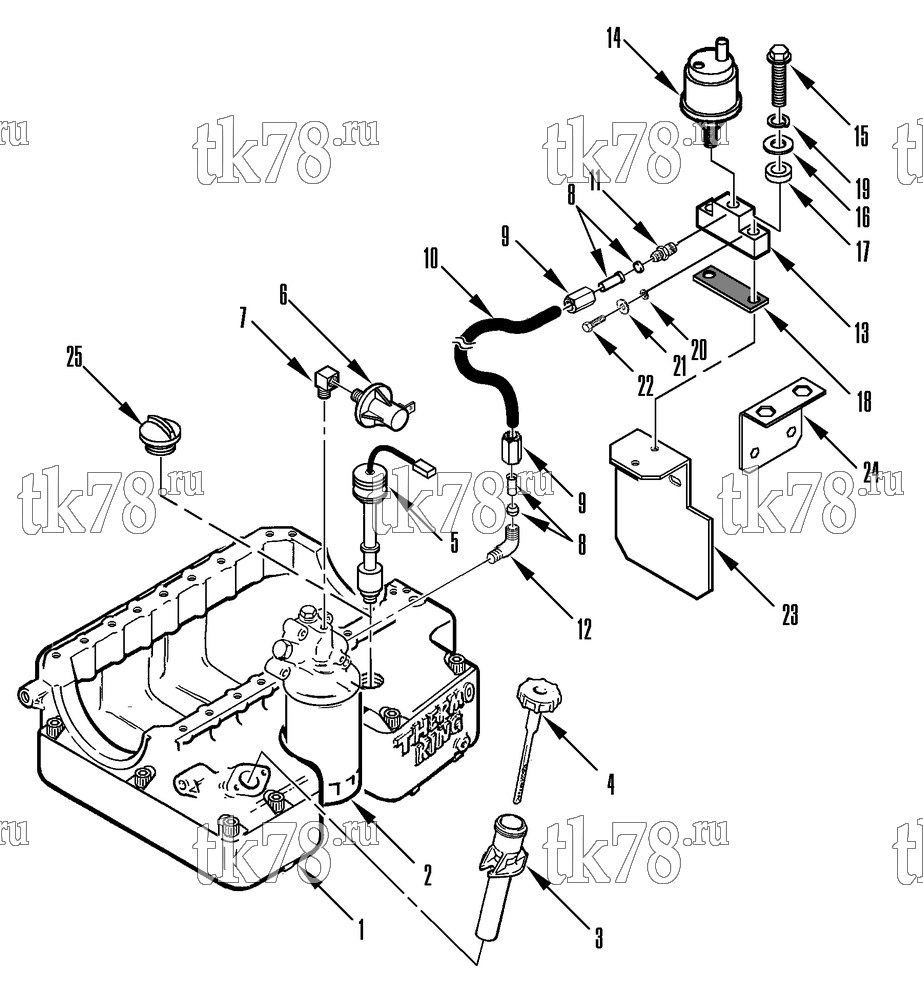

Установкa Thermo King SGSM схема OIL BASE GROUP (se 2.2 ENGINE) – 146G7
Обновление от: 12/10/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-811 | BASE - oil (see 100C6) | 1 | |
| 2 | 11-7382 | FILTER - oil (see 106B12) | 1 | |
|
US-11-7382 | Фильтр масляный, Yanmar 482 / 486, SB/SB-III/SMX | 2 160 ₽ |
|
|
10-11-7382 | Фильтр масляный, Yanmar 482 / 486, SB/SB-III/SMX | 940 ₽ |
|
| 3 | 11-4989 | TUBE - oil fill | 1 | |
| 33-144 | O-RING - tube | 1 | ||
| 55-5955 | SCREW - oil fill tube | 2 | ||
| 55-4608 | LOCKWASHER | 2 | ||
| 55-4607 | FLATWASHER | 2 | ||
| 4 | 11-7486 | DIPSTICK | 1 | |
|
10-11-7486 | Масляный щуп, Isuzu 2.2 DI (D201), SB-I/II/III / SMX/SMX-II | 2 000 ₽ |
|
| 33-2965 | GASKET - dipstick | 1 | ||
| 5 | 41-402 | SWITCH - oil level (mounts in 1.3 in dia hole) | 1 | |
|
41-402 OEM | Датчик уровня масла | 10 090 ₽ |
|
|
10-41-402 | Датчик уровня масла | 6 190 ₽ |
|
| 33-3877 | GASKET - switch | 1 | ||
|
10-33-3877 | Уплотнитель датчика уровня масла | 1 030 ₽ |
|
| 6 | 41-7063 | SWITCH - oil pressure | 1 | |
| 10-41-7063 | Датчик давления масла, SB-XXX/SB-III | 3 280 ₽ |
|
|
| 7 | 55-2505 | ELBOW | 1 | |
| 8 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 9 | 11-4941 | NUT - hose | 2 | |
| 10 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 11 | 55-4515 | FITTING - hose | 2 | |
| 12 | 11-4380 | ELBOW - hose | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 13 | 55-8665 | ELBOW - oil pressure switch | 1 | |
| 14 | 44-8883 | SENSOR - oil pressure transducer | 1 | |
|
10-44-8883 | Сенсор давления масла, SB/SB-III/SMX-II/SL/SLe/TS-Series (SR) | 9 810 ₽ |
|
|
PP-44-8883 | Сенсор давления масла, SB/SB-III/SMX-II/SL/SLe/TS-Series (SR) | 2 930 ₽ |
|
| 15 | 55-3031 | SCREW - elbow | 2 | |
| 16 | 55-2001 | FLATWASHER | 2 | |
| 17 | 55-7616 | WASHER - insulating | 2 | |
| 18 | 33-2458 | MAT - isolator (oil pressure sensor) | 1 | |
| 19 | 55-2964 | LOCKWASHER | 2 | |
| 55-4560 | NUT | 2 | ||
| 20 | 55-2998 | LOCKWASHER (internal tooth) | 1 | |
| 21 | 55-3013 | FLATWASHER | 1 | |
| 22 | 55-3515 | SCREW - terminal | 1 | |
| 23 | 91-8677 | BRACKET - sensor | 1 | |
| 24 | 91-9012 | BRACKET - sensor (SGCM) | 1 | |
| 55-3031 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 25 | 55-7732 | PLUG - oil level switch hole | 1 |
