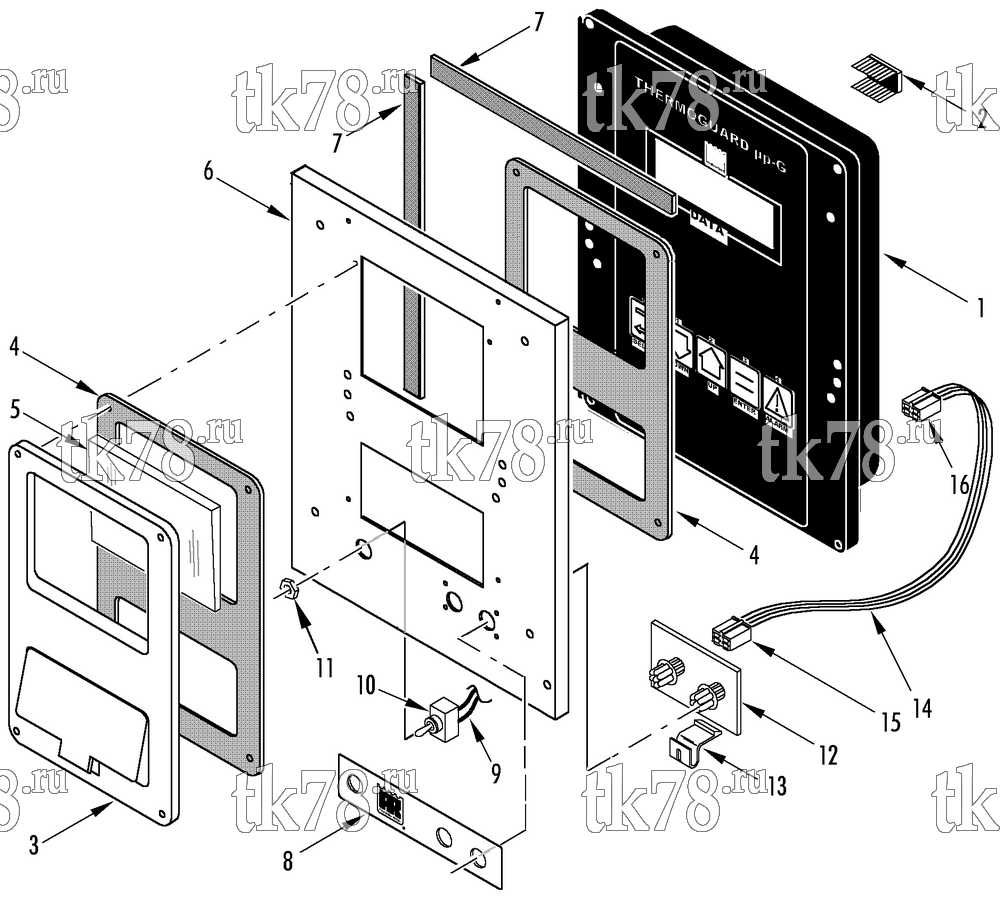

Установкa Thermo King SGSM схема CONTROL BOX COVER - mP-G (SGCM, SGSM, SGCO) – 146G6
Обновление от: 11/8/05
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1797 | CONTROLLER - mP-G (w/o chip) | 1 | |
| 2 | 40-913 | KIT - eprom chip (V0432) | 1 | |
| 55-3000 | SCREW - controller | 8 | ||
| 55-2996 | LOCKWASHER | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 3 | 91-7143 | BEZEL - TG VI (complete) | 1 | |
| 4 | 33-2797 | GASKET - bezel | 2 | |
| 5 | 91-7142 | WINDOW - bezel | 1 | |
| 6 | 91-8680 | COVER - mP-G | 1 | |
| 92-5310 | COVER - mP-G (Maersk blue) | 1 | ||
| 7 | 99-7246 | STRIP - gasket (9.7 & 10.2 lg) | A/R | |
| 8 | 91-8681 | NAMEPLATE - cover, microprocessor | 1 | |
| 9 | 41-2527 | HARNESS - on/off | 1 | |
| 10 | 44-7792 | SWITCH - on/off | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 44-5620 | CONNECTOR (2-pin, male) | 1 | ||
| 11 | 44-739 | BOOT - switch | 1 | |
| 12 | 41-2528 | BOARD - pc (indicator) | 1 | |
| 13 | 91-1277 | RETAINER - harness connector | 1 | |
| 55-2262 | RIVET - retainer | 1 | ||
| 55-3550 | FLATWASHER | 1 | ||
| 55-3256 | SCREW - board | 4 | ||
| 55-2998 | LOCKWASHER | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 14 | 41-2529 | HARNESS - indicator | 1 | |
| 15 | 44-5224 | CONNECTOR (4-pin, female) | 1 | |
| 16 | 44-5622 | CONNECTOR (6-pin, female) | 1 |
