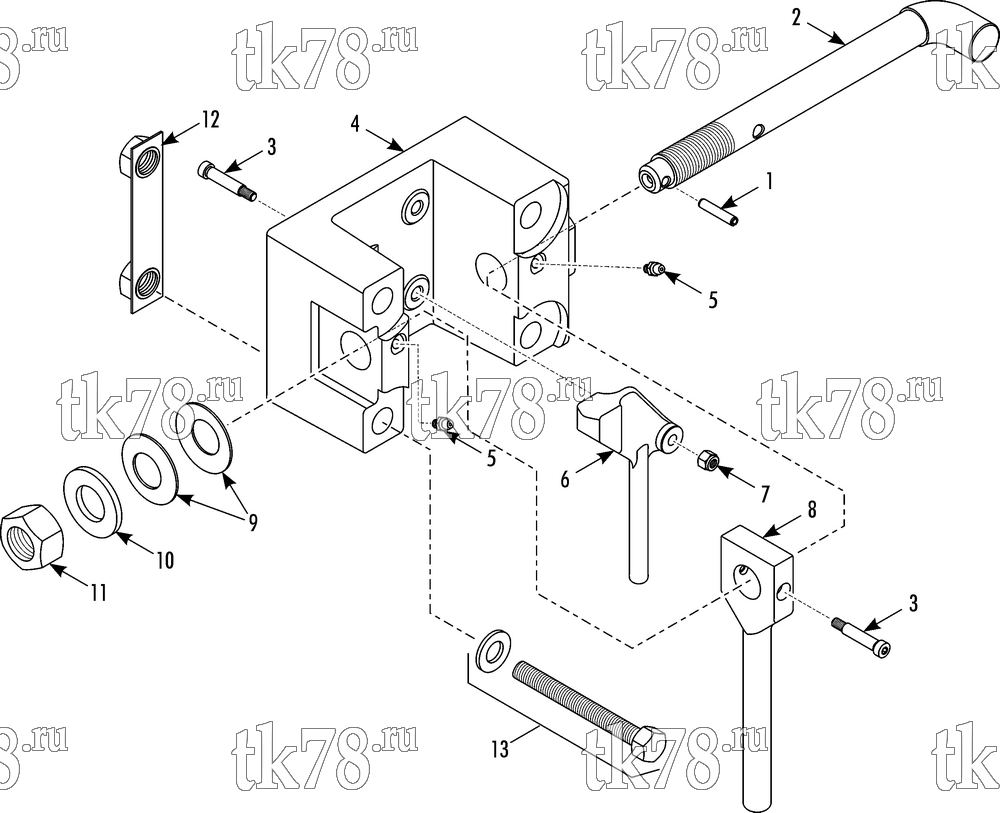

Установкa Thermo King SGCO 3000 схема UNIT MOUNTING BRACKET – 223G6
Обновление от: 5/29/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 92-6429 | BRACKET (lefthand) | 1 | ||
| 92-6722 | BRACKET (righthand) | 1 | ||
| 1 | 55-2925 | PIN - spring (slotted) | 1 | |
| 2 | 92-6430 | SHAFT - clamp | 1 | |
| 3 | 55-6030 | SCREW - shoulder | 2 | |
| 4 | NSS | BASE - clamp | 1 | |
| 5 | 55-4021 | FITTING - grease | 2 | |
| 6 | 91-114 | PAW - clamp | 1 | |
| 7 | 55-4118 | NUT | 2 | |
| 8 | 91-113 | HANDLE - clamp | 1 | |
| 9 | 55-6028 | WASHER - spring | 2 | |
| 10 | 55-6029 | WASHER - special | 1 | |
| 11 | 51-1677 | NUT | 1 | |
| 12 | 92-6423 | NUTSTRIP - bracket | 4 | |
| 13 | 55-5947 | SCREW - bracket | 8 | |
| 55-451 | LOCKWASHER | 8 |
