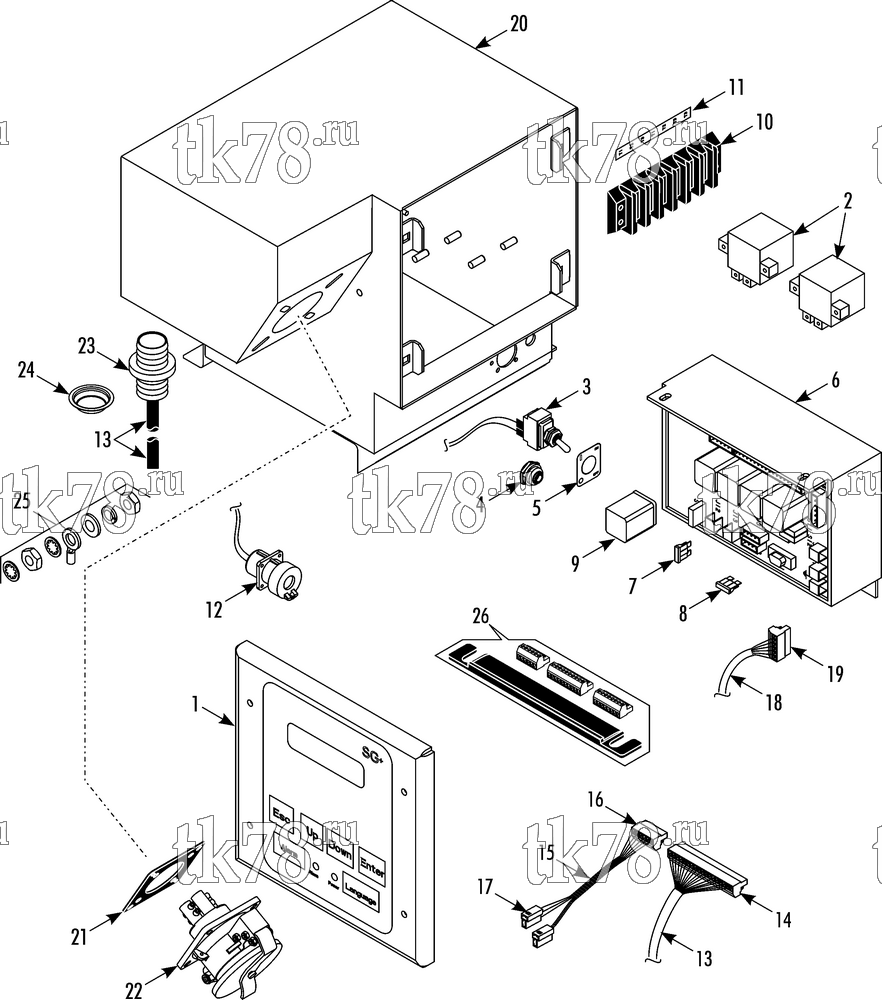

Установкa Thermo King SGCO 3000 схема CONTROL BOX SG+ 3000 – 222G7
Обновление от: 6/10/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-7841 | KEYPAD & DOOR | 1 | |
| 93-1061 | KEYPAD | 1 | ||
| 55-4526 | NUT - captive | 4 | ||
| 2 | 41-7836 | RELAY - power | 2 | |
| 3 | 41-7835 | HARNESS - switch | 1 | |
| 44-1196 | SWITCH - on/off | 1 | ||
| 4 | 44-739 | BOOT - switch | 1 | |
| 5 | 99-7642 | NAMEPLATE- on/off | 1 | |
| 6 | 45-2185 | CONTROLLER -SG+ 3000 | 1 | |
| 7 | 44-9758 | FUSE - (10 amp) | 1 | |
|
10-44-9758 | Предохранитель 10 ампер 10 шт | 1 860 ₽ |
|
| 8 | 41-1771 | FUSE - (30 amp) | 2 | |
| 30-41-1771 | Предохранитель 32V 30А | 460 ₽ |
|
|
| 9 | 41-7904 | RELAY | 5 | |
| 55-4953 | NUT - controller | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 10 | 44-9282 | BOARD TERMINAL (6 terminals) | 1 | |
| 11 | 91-860 | MARKSTRIP | 1 | |
| 12 | 41-8064 | HARNESS - download | 1 | |
| 41-2406 | CAP | 1 | ||
| 13 | 41-7941 | HARNESS - main | 1 | |
| 14 | 41-3608 | CONNECTOR - plug (18-pin) | 1 | |
| 15 | 41-7838 | HARNESS - relay | 1 | |
| 16 | 504-843 | CONNECTOR - plug (6-pin) | 1 | |
| 17 | 44-5219 | CONNECTOR - relay | 2 | |
| 18 | 41-7839 | HARNESS - exciter | 1 | |
| 19 | 41-7842 | CONNECTOR - plug (5-pin) | 1 | |
| 20 | 98-7816 | BOX - control | 1 | |
| 21 | 33-3168 | GASKET - receptacle | 1 | |
| 22 | 41-3404 | RECEPTACLE - 460 V | 1 | |
| 23 | 55-3539 | FITTING - barb | 1 | |
| 33-1056 | O-RING | 1 | ||
| 55-2636 | NUT - fitting | 1 | ||
| 24 | 51-1648 | PLUG - button | 1 | |
| 25 | 55-2965 | NUT - ground | 2 | |
| 55-2996 | LOCKWASHER (int tooth) | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 26 | 40-1197 | KIT - connectors (J1 & J4, replaces items 14 & 16) | 1 |
