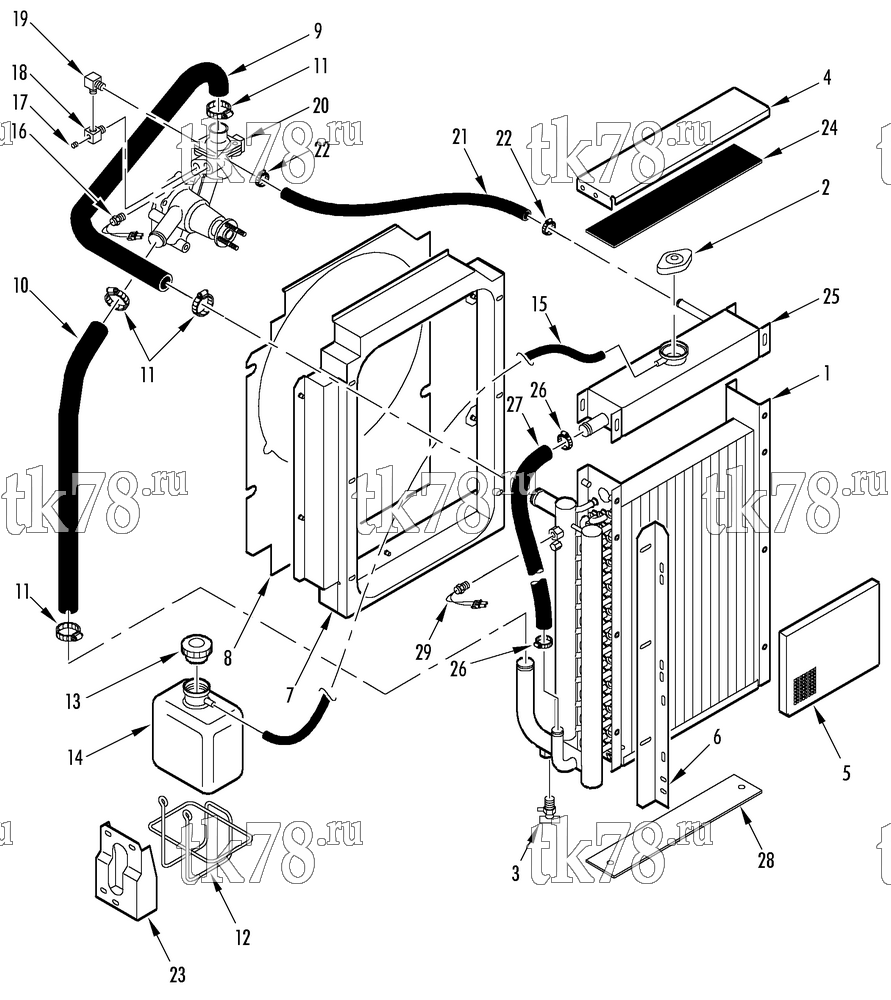

Установкa Thermo King SGCO 2000 схема ENGINE COOLING SYSTEM – 158B8
Обновление от: 1/15/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-799 | RADIATOR | 1 | |
| 55-8752 | INSERT | 6 | ||
| 55-3018 | SCREW - radiator | 6 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 12 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 2 | 11-8913 | CAP - radiator | 1 | |
| 3 | 55-9011 | DRAIN COCK - radiator | 1 | |
| 4 | 91-8036 | BRACKET - radiator (top) | 1 | |
| 55-2979 | SCREW - bracket | 7 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 55-4953 | NUT | 7 | ||
| 5 | 92-1350 | SCREEN - radiator | 1 | |
| 6 | 91-8035 | ANGLE - radiator (front) | 1 | |
| 55-2957 | SCREW - angle | 5 | ||
| 55-2979 | SCREW | 2 | ||
| 55-2086 | FLATWASHER | 14 | ||
| 55-4953 | NUT | 7 | ||
| 7 | 98-5711 | SHROUD - radiator | 1 | |
| 55-3018 | SCREW - shroud | 6 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 8 | 98-5723 | ORIFICE - radiator | 1 | |
| 55-3018 | SCREW - orifice | 6 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-3045 | WASHER - dome | 6 | ||
| 9 | 11-9524 | HOSE - water pump to radiator (silicone) | 1 | |
| 10 | 11-9525 | HOSE - radiator to engine (silicone) | 1 | |
| 11 | 55-5400 | CLAMP - hose | 4 | |
| 12 | 11-4693 | HANGER - overflow tank | 1 | |
| 55-2977 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-6526 | INSERT | 2 | ||
| 13 | 99-8301 | CAP & CHAIN - overflow tank | 1 | |
| 14 | 11-4607 | TANK - overflow | 1 | |
| 15 | 99-1655 | HOSE - overflow | 1 | |
| 55-2796 | CLAMP - hose | 4 | ||
| 16 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 8 970 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 720 ₽ |
|
| 55-5023 | BUSHING | 1 | ||
| 17 | 55-2554 | PLUG - pipe | 1 | |
| 18 | 55-5090 | TEE - pipe | 1 | |
| 19 | 55-9091 | ELBOW - pipe | 1 | |
| 20 | 13-509 | PUMP - water (ELC compatible, see 149C12) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 21 | 12-538 | HOSE - water pump | 1 | |
| 22 | 55-6731 | CLAMP - hose | 2 | |
| 23 | 91-7217 | BRACKET - overflow tank | 1 | |
| 55-2977 | SCREW - bracket | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 24 | 91-7782 | PAD - radiator | 1 | |
| 25 | 11-8888 | TANK - expansion | 1 | |
| 55-3021 | SCREW - tank | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 26 | 55-5400 | CLAMP - hose | 2 | |
| 27 | 11-8891 | HOSE - outlet | 1 | |
| 28 | 91-7497 | COVER - access | 1 | |
| 55-2955 | SCREW - cover | 2 | ||
| 29 | 41-1818 | SENSOR - water level | 1 | |
| 41-1818 OEM | Датчик уровня охлаждающей жидкости | 13 580 ₽ |
|
