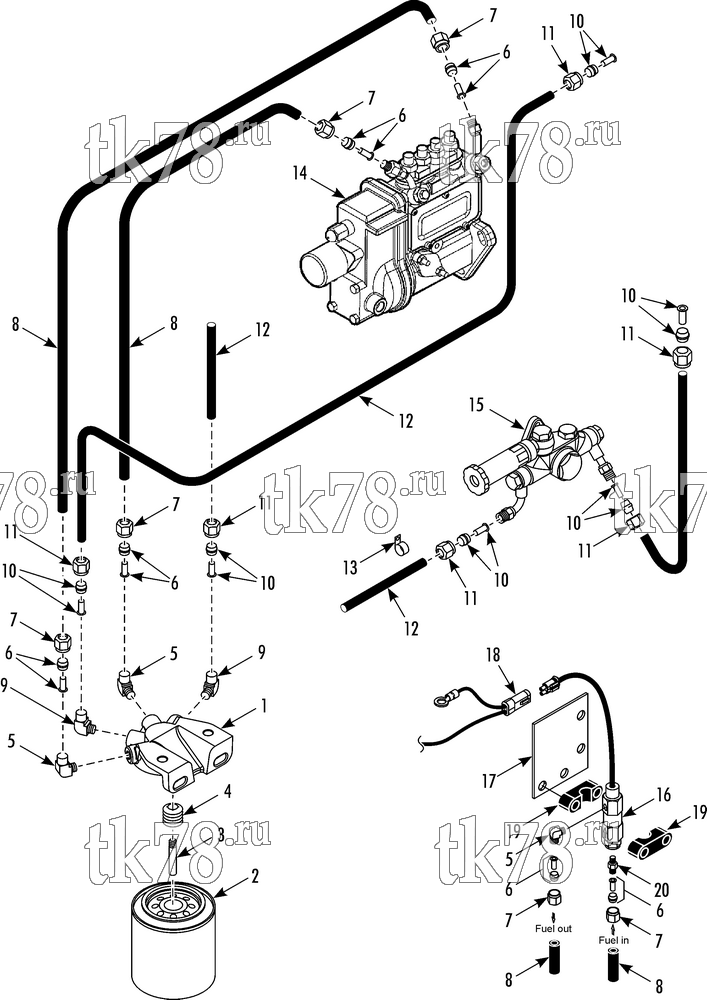

Установкa Thermo King SGCO 2000-151 for Maersk Sealand схема FUEL FILTER & HOSES – 165H0
Обновление от: 12/3/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9015 | HEAD - fuel filter | 1 | |
| 55-3490 | SCREW - base | 2 | ||
| 55-4954 | NUT - base | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 2 | 11-9342 | FILTER - fuel (EMI 3000) | 1 | |
|
US-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 1 610 ₽ |
|
|
10-11-9342 | Фильтр топливный, SL/SLe/SLX/SLXe | 590 ₽ |
|
| PP-11-9342 | Фильтр топливный, SLX/SLXe | 350 ₽ |
|
|
|
11-9342 OEM | Фильтр топливный EMI 3000, SL/SLe/SLX/SLXe | по запросу |
|
| 3 | 11-9016 | SHAFT - water bleed | 1 | |
| 4 | 11-9017 | SPUD - fuel filter | 1 | |
| 203-393 | SEALER - thread | A/R | ||
| 5 | 11-5320 | ELBOW (1/4) | 2 | |
| 6 | 10-243 | KIT - sleeve & eyelet (1/4) | 4 | |
| 7 | 11-4841 | NUT (1/4) | 4 | |
| 8 | 11-4367 | HOSE (1/4 od x 35 ft lg) | A/R | |
| 9 | 11-4380 | ELBOW - hose fitting (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10 | 10-242 | KIT - sleeve & eyelet (3/8) | 6 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 11 | 11-4941 | NUT (3/8) | 6 | |
| 12 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 13 | 55-4203 | CLAMP - hose | 2 | |
| 55-5022 | SCREW - clamp | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 14 | 101-321 | PUMP - fuel injection (see 152D4) | 1 | |
| 15 | 11-7433 | PUMP - fuel (see 142F8) | 1 | |
|
11-7433 OEM | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 24 100 ₽ |
|
|
PP-11-7433 | Топливный насос подкачки, SB/SB-III/SMX/SMX-II/SL/SLe/SLX/SLXe | 6 680 ₽ |
|
| 40-1016 | KIT - fuel heater | 1 | ||
| 16 | 41-8319 | HEATER - fuel (12V) | 1 | |
| 17 | 92-7631 | PLATE - fuel heater | 1 | |
| 18 | 41-9323 | HARNESS | 1 | |
| 19 | 92-315 | CLAMP - fuel heater | 2 | |
| 55-5677 | SCREW - clamp | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 20 | 55-4515 | CONNECTOR | 1 |
