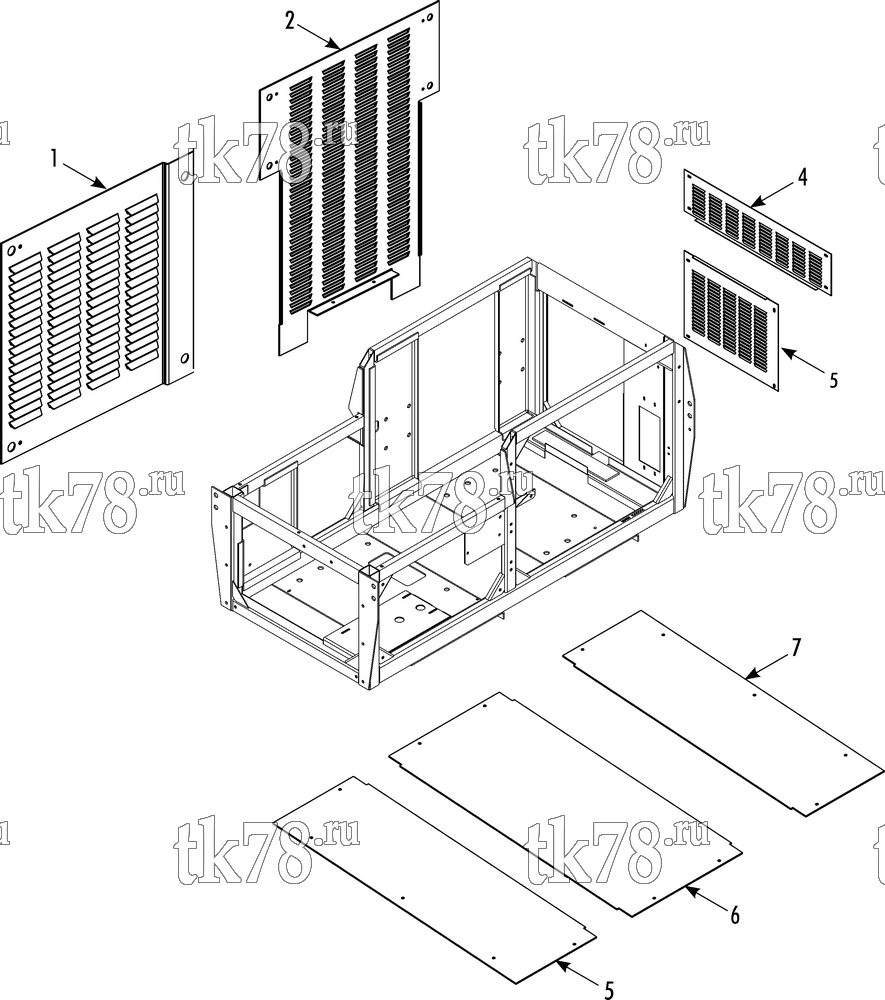

Установкa Thermo King SGCM 3000 схема CM BOTTOM PANEL KIT – 261G3
Обновление от: 1/9/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 90-2449 | KIT - CM bottom panels | 1 | ||
| 1 | 98-9174 | PANEL - rear (muffler side) | 1 | |
| 2 | 98-9175 | PANEL - rear (engine side) | 1 | |
| 3 | 98-7206 | PANEL - front (upper) | 1 | |
| 4 | 98-7208 | PANEL - front (lower) | 1 | |
| 5 | 98-9176 | PANEL - bottom (generator end) | 1 | |
| 6 | 98-9177 | PANEL - bottom (center) | 1 | |
| 7 | 98-9178 | PANEL - bottom (receptacle end) | 1 | |
| 55-2864 | RIVET - panel | 25 | ||
| 55-4740 | WASHER - special | 25 |
