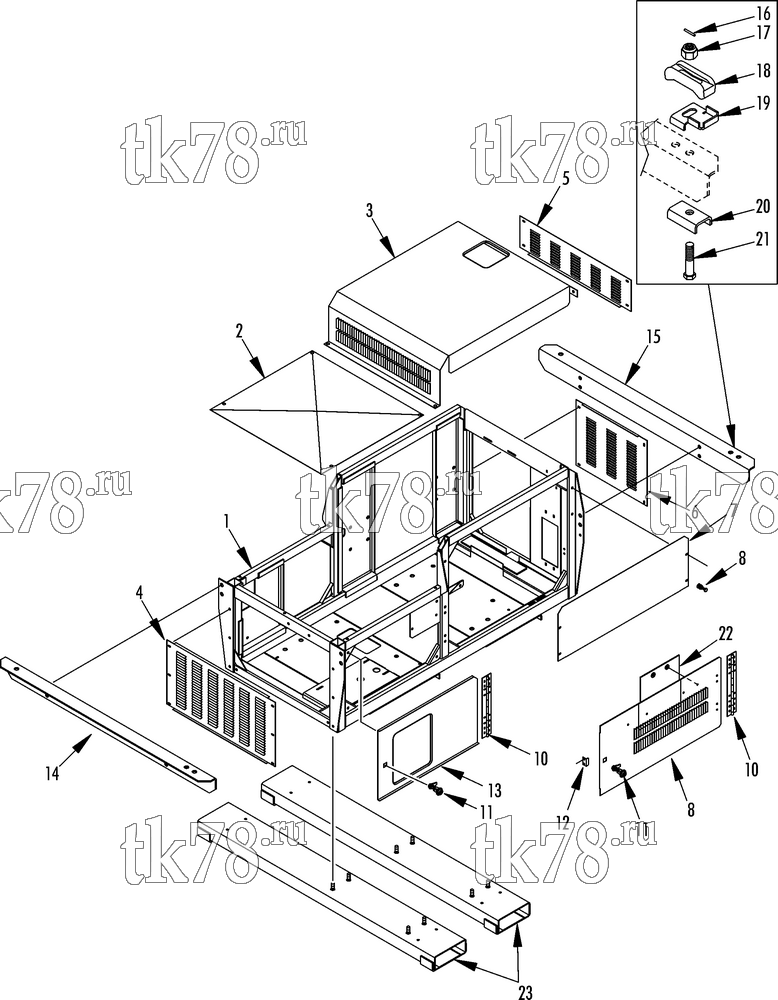

Установкa Thermo King SGCM 3000 схема STRUCTURAL COMPONENTS – 223C2
Обновление от: 6/17/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-7364 | FRAME - assembly (w/ welded fork pockets) | 1 | |
| 98-7337 | FRAME - assembly (Maersk blue,w/ welded fork pockets) | 1 | ||
| 98-7367 | FRAME - assembly (Toyo, w/ welded fork pockets) | 1 | ||
| 2 | 98-7204 | PANEL - top, rear | 1 | |
| 3 | 98-7202 | PANEL - top | 1 | |
| 98-7344 | PANEL - top (Maersk blue) | 1 | ||
| 4 | 98-7822 | PANEL - lower, rear | 1 | |
| 98-7347 | PANEL - lower, rear (Maersk blue) | 1 | ||
| 5 | 98-7206 | PANEL - front | 1 | |
| 6 | 98-7208 | PANEL - radiator | 1 | |
| 98-7340 | PANEL - radiator (Maersk blue) | 1 | ||
| 7 | 98-7207 | PANEL - upper right | 1 | |
| 98-7341 | PANEL - upper right (Maersk blue) | 1 | ||
| 8 | 55-7731 | SCREW - door | A/R | |
| 55-1800 | LOCKWASHER | A/R | ||
| 55-4742 | WASHER - special | A/R | ||
| 51-1170 | WASHER - nylon | A/R | ||
| 55-6721 | INSERT - threaded | A/R | ||
| 9 | 98-7859 | DOOR - front right | 1 | |
| 98-7802 | DOOR - front right (Maersk blue) | 1 | ||
| 10 | 92-6380 | HINGE - door | 2 | |
| 11 | 92-260 | LATCH - door (includes nut) | 2 | |
| 12 | 92-6306 | BRACKET - latch | 1 | |
| 55-3027 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 13 | 98-7860 | DOOR - rear right | 1 | |
| 98-7903 | PANEL - rear right (Maersk blue) | 1 | ||
| 14 | 92-5403 | ANGLE - unit mounting (rear) | 1 | |
| 15 | 98-5514 | ANGLE - unit mounting (front) | 1 | |
| 55-5204 | SCREW - angle | 8 | ||
| 55-2576 | FLATWASHER | 16 | ||
| 55-5205 | NUT | 8 | ||
| 16 | 51-1654 | PIN - spring | 4 | |
| 17 | 55-4470 | NUT | 4 | |
| 18 | 92-3438 | CLIP - unit mounting | 4 | |
| 19 | 92-6720 | BRACKET - clip | 4 | |
| 20 | 91-632 | CHANNEL - unit mounting | 4 | |
| 21 | 55-7502 | BOLT - unit | 4 | |
| 55-7731 | SCREW - hinge | 8 | ||
| 55-1587 | SCREW - hinge (hh) | 8 | ||
| 55-4953 | NUT | 8 | ||
| 55-1800 | LOCKWASHER | 16 | ||
| 22 | 91-5703 | POUCH - service records | 1 | |
| 91-9447 | SUPPORT - pouch | 1 | ||
| 55-1587 | SCREW - pouch | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 23 | 92-5307 | POCKET - fork (Maersk blue) | 2 | |
| 55-2173 | FLATWASHER | 8 | ||
| 55-4952 | NUT | 8 |
