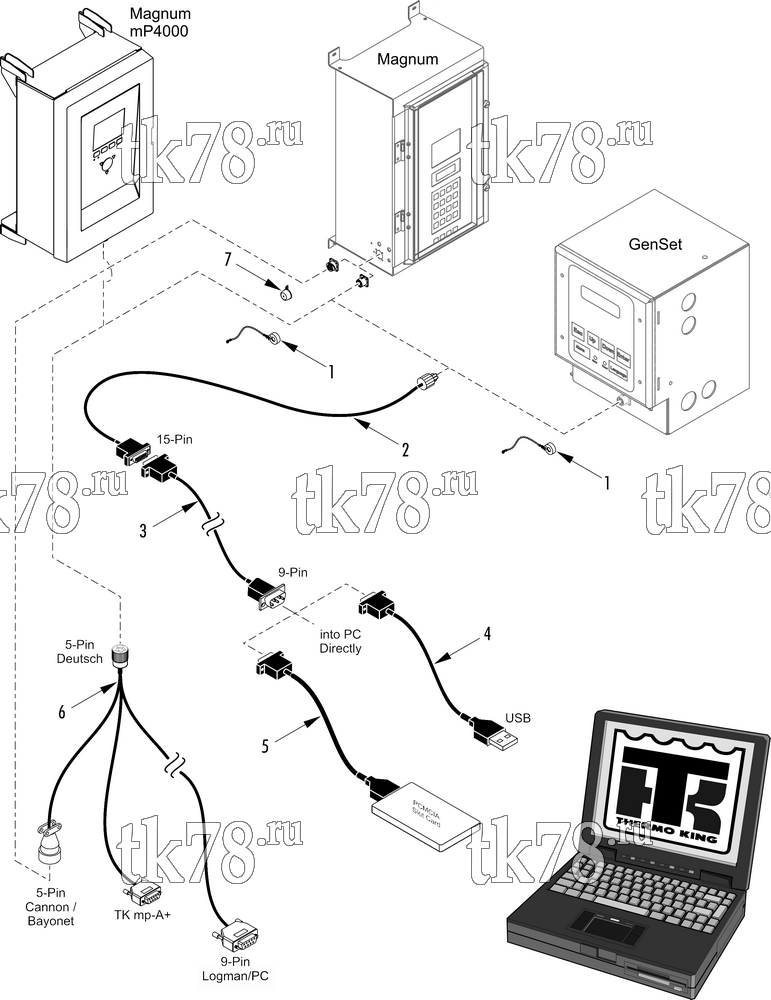

Установкa Thermo King SGCM 3000 Maersk схема DOWNLOAD CABLES – 226E2
Обновление от: 1/17/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 41-2406 | CAP - dust (5-pin Deutsch) | 1 | |
| 99-3685 | CHAIN - cap | 1 | ||
| 2 | 204-918 | CABLE - data (5-pin Deutsch to 15-pin D connectors) | 1 | |
| 204-974 | CABLE - data (5-pin Cannon bayonet to 15-pin D connectors) | 1 | ||
| 204-975 | CABLE - data (5-pin Cannon threaded to 15-pin D) | 1 | ||
| 3 | 44-9417 | CABLE - data (15-pin D connector, 9-pin D PC, 20 ft) | 1 | |
| 44-9418 | CABLE - data (15-pin D connector, 9-pin D PC, 50 ft) | 1 | ||
| 4 | 204-1109 | ADAPTER - 9-pin D PC connector to USB | 1 | |
| 5 | N/A | ADAPTER - 9-pin D PC to PC card (see service bulletin C061) | 1 | |
| 6 | 41-8065 | CABLE - data download | 1 | |
| 7 | 41-3588 | CAP - dust (5-pin Cannon) | 1 |
