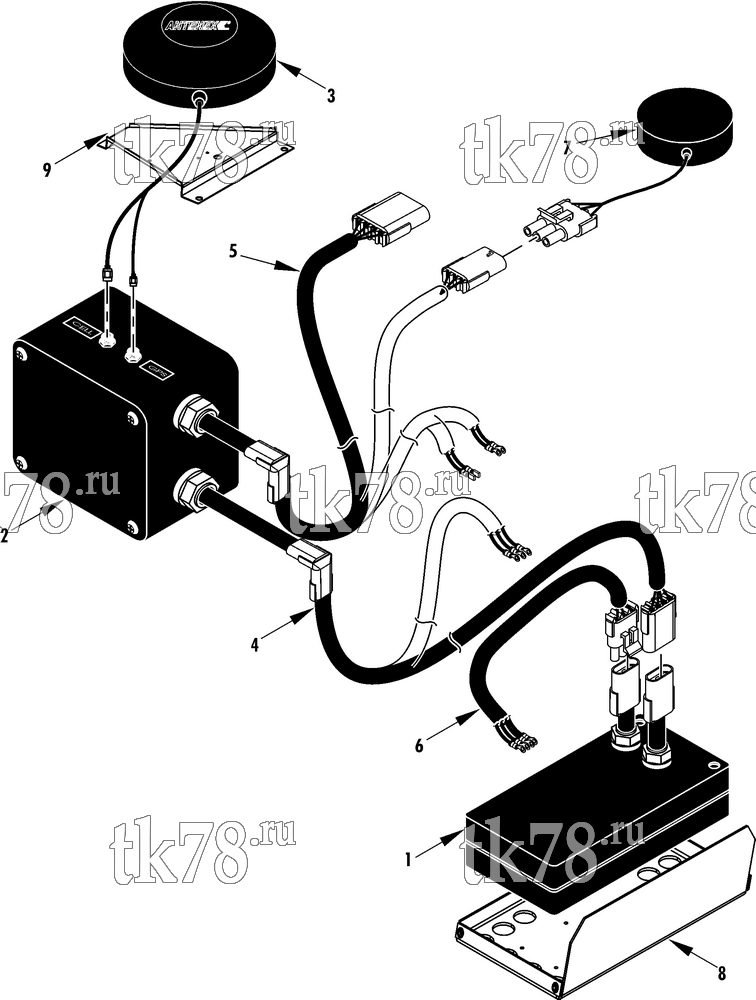

Установкa Thermo King SGCM 3000 Maersk схема GENTRAK GROUP – 223G0
Обновление от: 11/3/07
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | N/A | GENTRAK II (not supplied by TK, B0210) | 1 | |
| 2 | N/A | MODEM (not supplied by TK, B0143) | 1 | |
| 3 | N/A | ANTENNA Gentrac II (not supplied by TK, S0051) | 1 | |
| 4 | N/A | HARNESS - power (not supplied by TK, B2020B) | 1 | |
| 5 | N/A | HARNESS - sensor (not supplied by TK, B0201C) | 1 | |
| 6 | N/A | HARNESS - extension (not supplied by TK, B0139B) | 1 | |
| 7 | N/A | SENSOR - fuel (not supplied by TK, 26.0" M0226-26)" | 1 | |
| 8 | 92-6427 | BRACKET - Gentrak (SGCO ONLY) | 1 | |
| 9 | 92-6414 | BRACKET - antenna (SGCO ONLY) | 1 | |
| 55-2977 | SCREW - bracket | 4 |
