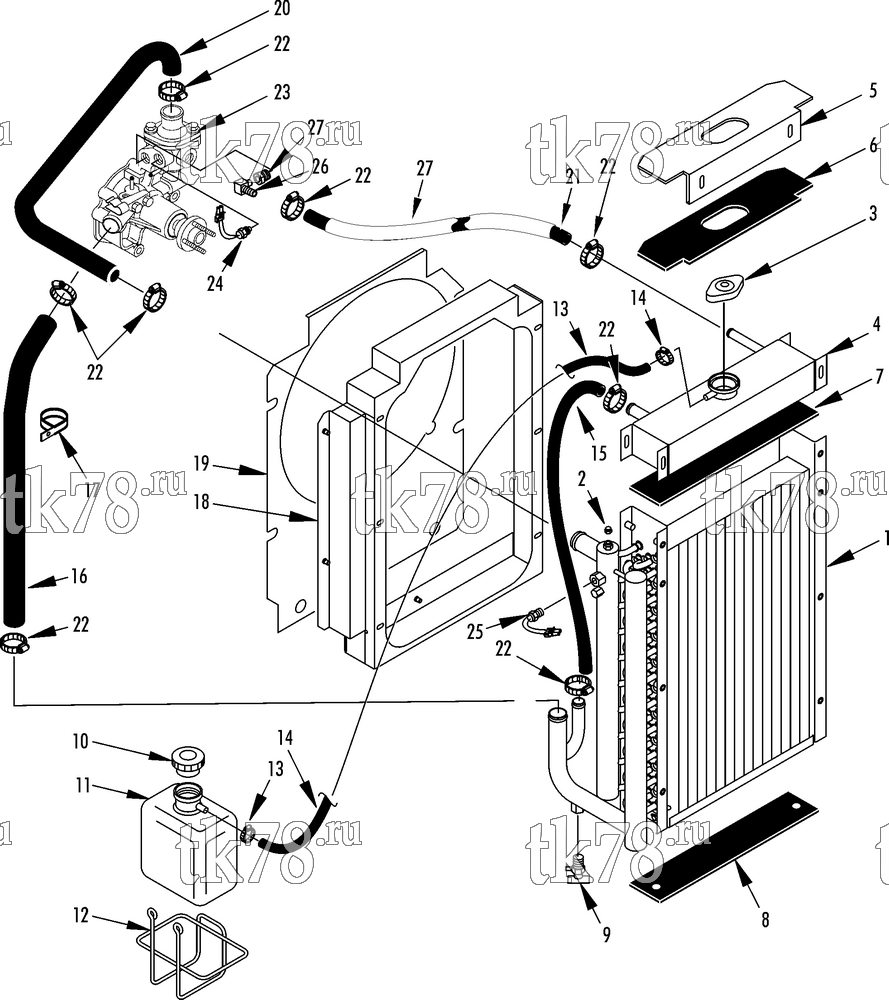

Установкa Thermo King SGCM 3000 Maersk схема ENGINE COOLING SYSTEM – 222G0
Обновление от: 9/24/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-883 | RADIATOR | 1 | |
| 12-880 | RADIATOR (Maersk) | 1 | ||
| 2 | 55-1983 | CAP - vent | 1 | |
| 3 | 11-7983 | CAP - radiator (steel) | 1 | |
| 11-8913 | CAP - radiator (stainless steel) | 1 | ||
| 4 | 11-8912 | TANK - expansion | 1 | |
| 55-3021 | SCREW - tank | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 5 | 91-8039 | BRACKET - radiator | 1 | |
| 92-5308 | BRACKET - radiator (Maersk blue) | 1 | ||
| 55-2957 | SCREW - bracket | 2 | ||
| 55-2086 | WASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 6 | 91-8041 | PAD - expansion tank | 1 | |
| 7 | 91-7782 | PAD - radiator (top) | 1 | |
| 8 | 91-1834 | PAD - radiator (bottom) | 1 | |
| 203-396 | ADHESIVE - radiator pad | A/R | ||
| 9 | 55-9011 | COCK - drain (radiator) | 1 | |
| 10 | 99-8301 | CAP & CHAIN - overflow tank (see 119E11) | 1 | |
| 11 | 11-4607 | TANK - overflow | 1 | |
| 12 | 11-4693 | HANGER - overflow tank | 1 | |
| 55-1587 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 13 | 98-771 | HOSE - overflow (25 ft) | A/R | |
| 14 | 55-2796 | CLAMP - hose | 2 | |
| 15 | 11-8891 | HOSE - outlet | 1 | |
| 16 | 11-9525 | HOSE - engine to radiator | 1 | |
| 17 | 55-6156 | CLAMP - hose support | 1 | |
| 18 | 98-5824 | SHROUD - radiator | 1 | |
| 98-7329 | SHROUD - radiator (Maersk blue) | 1 | ||
| 55-8752 | INSERT - threaded | 6 | ||
| 19 | 98-5825 | ORIFICE - radiator | 1 | |
| 98-5723 | ORIFICE - radiator (Maersk blue) | 1 | ||
| 55-2995 | SCREW - orifice | 6 | ||
| 55-4740 | FLATWASHER | 6 | ||
| 20 | 11-9524 | HOSE - radiator to engine (top) | 1 | |
| 21 | 12-538 | HOSE - inlet (silicone) | A/R | |
| 22 | 55-5400 | CLAMP - hose | 8 | |
| 23 | 13-509 | PUMP - water (ELC compatible, see 204F0) | 1 | |
| 10-13-2572 | Водяной насос, Yanmar TK 482 / 486 / 486V | 37 520 ₽ |
|
|
| 10-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 26 160 ₽ |
|
|
|
PP-13-2268 | Водяной насос, Yanmar TK 482 / 486 / 486V | 8 320 ₽ |
|
|
PP-13-509 | Водяной насос, Yanmar TK 482 / 486 / 486V | 7 900 ₽ |
|
| 24 | 41-6539 | SENSOR - water temperature | 1 | |
|
10-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 8 970 ₽ |
|
|
PP-41-6539 | Датчик температуры двигателя Yanmar 370 / 374 / 376 / 395 / 482 / 486 / 486V | 2 720 ₽ |
|
| 25 | 41-1818 | SENSOR - water level | 1 | |
| 41-1818 OEM | Датчик уровня охлаждающей жидкости | 13 580 ₽ |
|
|
| 26 | 55-8653 | ELBOW - hose | 1 | |
| 27 | 55-1592 | BUSHING | 1 | |
| 28 | 13-950 | SLEEVING FIBERGLASS H-TEMP 7 | 1 |
