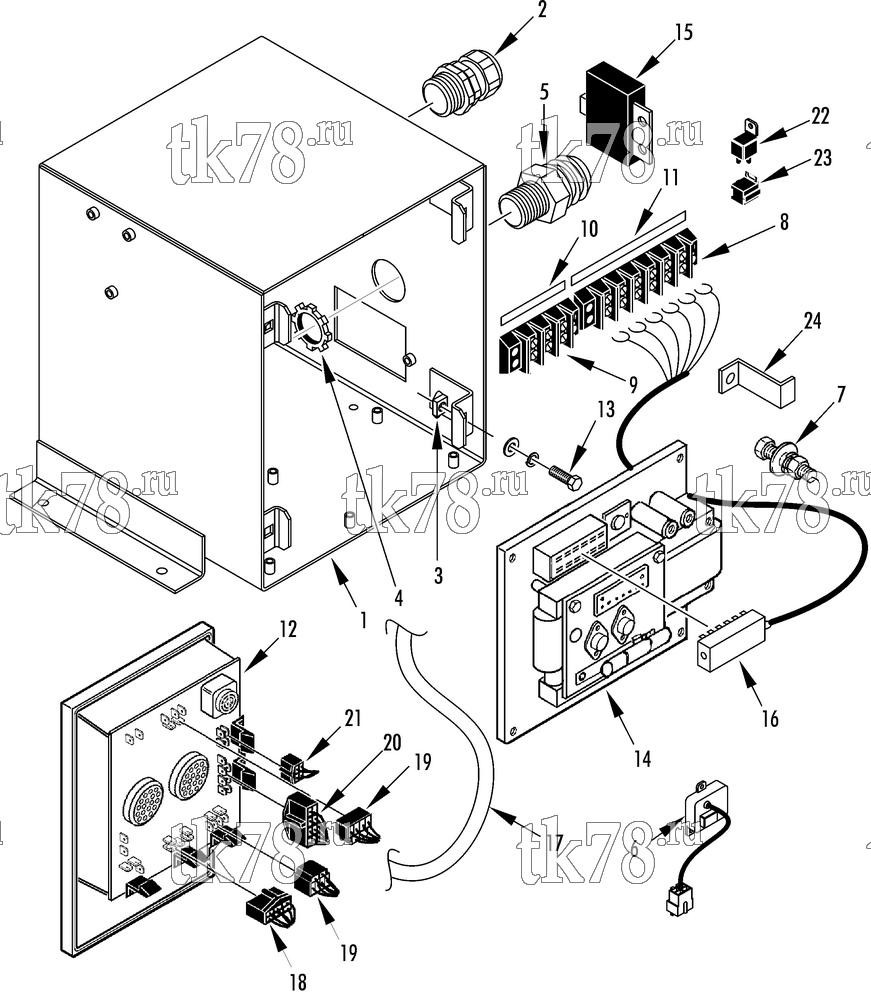

Установкa Thermo King SGCM 2000 Tier 2 Engine схема CONTROL BOX (SGCM & SGSM 2000) – 209G1
Обновление от: 7/21/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5827 | BOX - control | 1 | |
| 98-7348 | BOX - control (Maersk blue) | 1 | ||
| 55-2977 | SCREW - box | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 2 | ||
| 55-8711 | INSERT | 2 | ||
| 2 | 55-5112 | CONNECTOR - cable (power receptacle) | 1 | |
| 3 | 55-3059 | NUT - captive (cover) | 4 | |
| 4 | 55-2636 | NUT | 1 | |
| 5 | 55-3539 | GRIP - cable (engine harness) | 1 | |
| 33-1056 | O-RING | 1 | ||
| 6 | 41-7067 | MODULE - timer (fuel solenoid) | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 44-5827 | CONNECTOR - male (4-pin) | 1 | ||
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 7 | 55-3000 | SCREW - ground | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2965 | NUT | 2 | ||
| 8 | 44-9282 | BOARD - terminal | 1 | |
| 9 | 44-5555 | BOARD - terminal | 1 | |
| 55-2990 | NUT - board | 4 | ||
| 55-2202 | LOCKWASHER | 4 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 10 | 99-3855 | MARKSTRIP | 1 | |
| 11 | 91-860 | MARKSTRIP | 1 | |
| 12 | NSS | COVER (see 146G6 & 130G8) | 1 | |
| 13 | 55-2979 | SCREW - cover | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 14 | 45-1719 | EXCITER (see 131B4) | 1 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 15 | 44-3345 | REGULATOR - voltage | 1 | |
| 55-2995 | SCREW - regulator | 3 | ||
| 55-2964 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 3 | ||
| 16 | 41-1418 | PLUG - exciter | 1 | |
| 41-1418 | PLUG (12 contact) | 1 | ||
| 17 | 41-3772 | HARNESS - main | 1 | |
| 18 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 19 | 44-5622 | CONNECTOR (6-pin, female) | 2 | |
| 20 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 21 | 44-5814 | CONNECTOR (4-pin, female) | 1 | |
| 44-5219 | CONNECTOR (2-pin, female) | 2 | ||
| 44-6451 | CONNECTOR (1-pin, female) | 2 | ||
| 44-5620 | CONNECTOR (2-pin, male) | 1 | ||
| 22 | 41-478 | RELAY - air heater glow plug | 1 | |
| 55-2965 | NUT | 1 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 23 | 41-1325 | SOCKET - mini plug | 1 | |
| 24 | 91-6841 | BRACKET - exciter tray | 2 |
