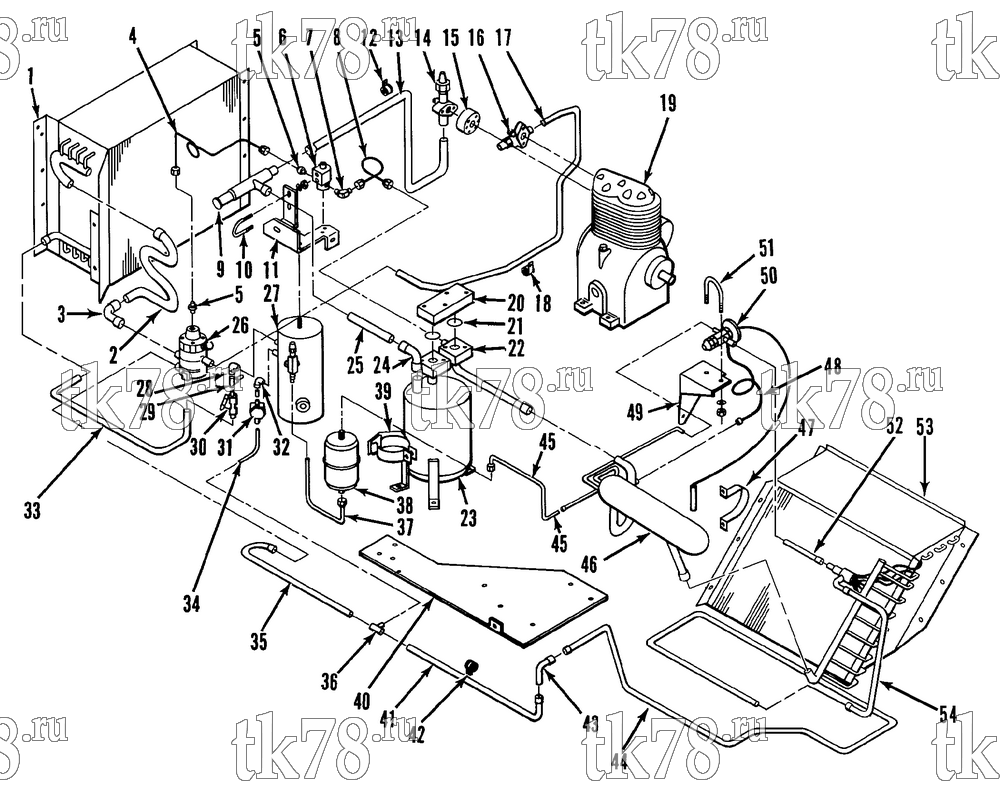

Установкa Thermo King SDZ 30 & 50 EMEIA схема REFRIGERATION COMPONENTS (UNTIL 6/91) – 81G11
Обновление от: 1/30/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1333 | COIL - condenser (see 82A4) | 1 | |
| 2 | 66-4799 | TUBE - 3-way to condenser | 1 | |
| 3 | 55-1541 | ELBOW | 1 | |
| 4 | 66-4807 | TUBE - 3-way to pilot solenoid | 1 | |
| 5 | 55-459 | COUPLING | 2 | |
| 6 | 66-2009 | VALVE - pilot solenoid | 1 | |
|
10-66-2009 | Управляющий клапан, KD/MD/TD/RD-II / SB-I/II/III | 18 500 ₽ |
|
| 44-3803 | COIL (3/8 bore) | 1 | ||
| 41-1525 | COIL (7/16 bore) | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 55-4523 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-8786 | NUT - valve | 1 | ||
| 7 | 55-4489 | ELBOW | 1 | |
| 8 | 66-4804 | TUBE - pilot solenoid | 1 | |
| 9 | 66-4725 | VALVE - cpr | 1 | |
| 10 | 55-5211 | U-BOLT | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 11 | 91-256 | MOUNT - solenoid & regulator | 1 | |
| 12 | 55-3359 | CLAMP | 1 | |
| 55-2977 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 13 | 66-4812 | TUBE - regulator to valve | 1 | |
| 14 | 66-8186 | VALVE - suction (see 25C13) | 1 | |
| 55-153 | SCREW - valve (1-3/4) | 1 | ||
| 55-201 | SCREW - valve (2 lg) | 1 | ||
| 55-896 | FLATWASHER | 2 | ||
| 55-5631 | SPACER (0.96 lg) | 1 | ||
| 33-2805 | GASKET | 1 | ||
|
33-2805 OEM | Прокладка коллектора армированная, X426/430 | 800 ₽ |
|
|
10-33-2805 | Прокладка коллектора армированная, X426/430 | 620 ₽ |
|
|
10-33-2546 | Прокладка коллектора, X426/430 | 340 ₽ |
|
|
PP-33-2805 | Прокладка коллектора, X426/430 | 50 ₽ |
|
| 15 | 22-719 | ADAPTER - suction | 1 | |
| 16 | 22-188 | VALVE - discharge (see 25C14) | 1 | |
|
10-22-188 | Клапан, Discharge | 8 260 ₽ |
|
| 55-2186 | COUPLING (5/8 x 3/4) | 1 | ||
| 33-2541 | GASKET - valve | 1 | ||
| 55-1469 | SCREW - valve | 2 | ||
| 55-896 | FLATWASHER | 2 | ||
| 17 | 66-4813 | TUBE - discharge to 3-way | 1 | |
| 18 | 55-570 | CLAMP - tube | 1 | |
| 55-3000 | SCREW - clamp | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 55-4560 | NUT | 1 | ||
| 19 | 102-474 | COMPRESSOR - D214 (see 92E12) | 1 | |
| 55-2916 | SCREW - compressor | 4 | ||
| 55-2363 | LOCKWASHER | 4 | ||
| 55-2641 | FLATWASHER | 4 | ||
| 91-222 | NUTSTRIP | 2 | ||
| 55-2270 | RIVET | 4 | ||
| 20 | 66-4810 | CAP - suction | 1 | |
| 55-4951 | PLUG - pipe | 1 | ||
| 55-3565 | SCREW - cap | 4 | ||
| 55-2959 | LOCKWASHER | 4 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 21 | 33-727 | O-RING | 2 | |
| 22 | 66-4794 | TUBE - exchanger to accumulator | 1 | |
| 55-459 | COUPLING - pilot solenoid tube | 1 | ||
| 23 | 67-860 | TANK - accumulator | 1 | |
| 55-2969 | SCREW - tank | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2114 | NUT | 2 | ||
| 24 | 66-637 | ELBOW | 1 | |
| 25 | 66-4811 | TUBE - accumulator to regulator | 1 | |
| 26 | 61-1236 | VALVE - 3-way (see 101B6) | 1 | |
| 55-643 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 27 | 67-1189 | TANK - receiver | 1 | |
|
10-67-1189 | Бак фреона, KD/MD/RD/TD/URD | 16 670 ₽ |
|
| 66-8339 | INDICATOR - liquid | 1 | ||
| 66-9257 | BALL | 1 | ||
| 33-1222 | O-RING | 1 | ||
| 55-2640 | NUT - tank | 2 | ||
| 55-2363 | LOCKWASHER | 2 | ||
| 55-2641 | FLATWASHER | 2 | ||
| 28 | 55-3250 | ELBOW | 1 | |
| 29 | 66-4801 | TUBE & SADDLE | 1 | |
| 55-3295 | FITTING - saddle | 1 | ||
| 66-7392 | VALVE - relief (high pressure) | 1 | ||
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 33-1015 | O-RING - valve | 1 | ||
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 30 | 66-3655 | VALVE - check (1/2 od, see 9G12) | 1 | |
| 31 | 66-3654 | VALVE - check (3/8, see 9G12) | 1 | |
| 32 | 66-4805 | TUBE | 1 | |
| 55-3250 | ELBOW (3/8) | 1 | ||
| 33 | 66-4802 | TUBE - check valve to condenser | 1 | |
| 34 | 66-4806 | TUBE - tee to check | 1 | |
| 35 | 66-4808 | TUBE - 3-way to tee | 1 | |
| 36 | 55-2181 | TEE | 1 | |
| 37 | 66-4803 | TUBE - receiver to drier | 1 | |
| 38 | 66-814 | DEHYDRATOR | 1 | |
|
10-66-814 | Дегидратор, KD/MD/RD-II | 5 700 ₽ |
|
| 39 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-2977 | SCREW - hanger | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 40 | 91-255 | PLATE - refrigeration components | 1 | |
| 55-2977 | SCREW - plate | 5 | ||
| 55-2086 | FLATWASHER | 10 | ||
| 55-4953 | NUT | 5 | ||
| 41 | 66-4809 | TUBE - defrost | 1 | |
| 42 | 55-549 | CLAMP (1/2 dia) | 3 | |
| 55-2995 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-2965 | NUT | 2 | ||
| 43 | 66-4826 | TUBE - defrost | 1 | |
| 44 | 66-4796 | TUBE - defrost | 1 | |
| 45 | 66-4795 | TUBE - drier to exchanger | 1 | |
| 46 | 67-859 | TANK - exchanger | 1 | |
| 66-874 | FITTING - equalizer tube | 1 | ||
| 47 | 99-978 | CLAMP - tank | 2 | |
| 55-1587 | SCREW - clamp | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 48 | 66-4798 | LINE - equalizer | 1 | |
| 49 | 91-241 | BRACKET - expansion | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 50 | 66-4793 | VALVE - expansion | 1 | |
| 51 | 55-5211 | U-BOLT - valve | 1 | |
| 55-4560 | NUT | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 52 | 66-4800 | TUBE - expansion to distributor | 1 | |
| 53 | 67-858 | COIL - evaporator | 1 | |
| 55-5121 | INSERT - threaded | 5 | ||
| 55-1587 | SCREW - coil | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-4953 | NUT | 1 | ||
| 54 | 66-4826 | TUBE - defrost | 1 |
