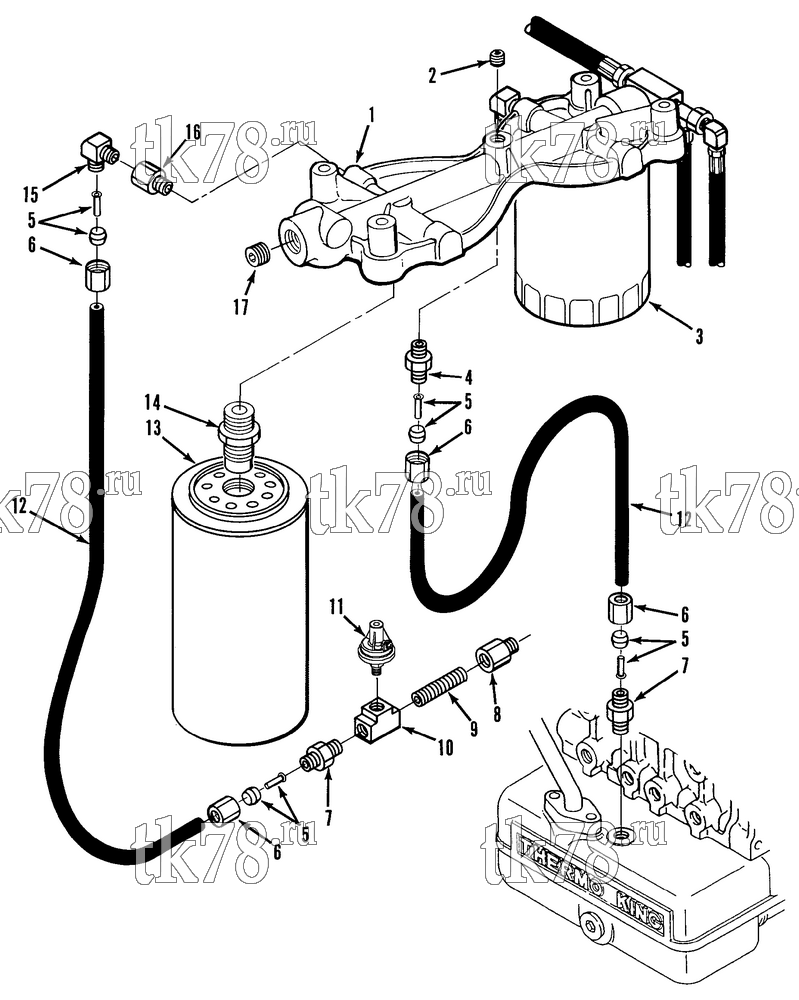

Установкa Thermo King SDZ 30 & 50 EMEIA w/TK 2.49 Engine схема BYPASS OIL FILTER (OPTIONAL) – 83E1
Обновление от: 7/31/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-5941 | BRACKET - fuel filter | 1 | |
| 55-3565 | SCREW - bracket | 4 | ||
| 55-2958 | FLATWASHER | 8 | ||
| 55-4954 | NUT | 4 | ||
| 2 | 55-433 | PLUG - pipe | 1 | |
| 3 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 4 | 11-5437 | COUPLING (3/8) | 1 | |
| 5 | 10-242 | KIT - sleeve & eyelet (3/8) | 4 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 6 | 11-4941 | NUT (3/8) | 4 | |
| 7 | 55-4515 | CONNECTOR (3/8) | 2 | |
| 8 | 11-7055 | ADAPTER - oil pressure | 1 | |
| 9 | 55-2116 | NIPPLE - pipe | 1 | |
| 10 | 55-665 | TEE (female) | 1 | |
| 11 | 41-6865 | SWITCH - oil pressure | 1 | |
|
10-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 9 310 ₽ |
|
|
PP-41-6865 | Сенсор давления масла, Yanmar, кроме 370 / 376 | 2 720 ₽ |
|
| 12 | 11-4372 | HOSE (3/8 od x 35 ft lg) | A/R | |
| 13 | 11-6228 | FILTER - oil bypass | 1 | |
|
11-9321 OEM | Фильтр масляный EMI 2000, MD/RD/KD/T-Series | 2 860 ₽ |
|
|
10-11-9321 | Фильтр масляный, MD/RD/KD/T-Series | 720 ₽ |
|
| 14 | 55-3164 | ADAPTER - filter | 1 | |
| 15 | 11-4380 | ELBOW (3/8) | 1 | |
|
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 16 | 11-9595 | FITTING - restricted | 1 | |
| 17 | 55-193 | PLUG - pipe | 1 | |
| 11-6229 | HOSE - fuel filter to engine | 1 |
