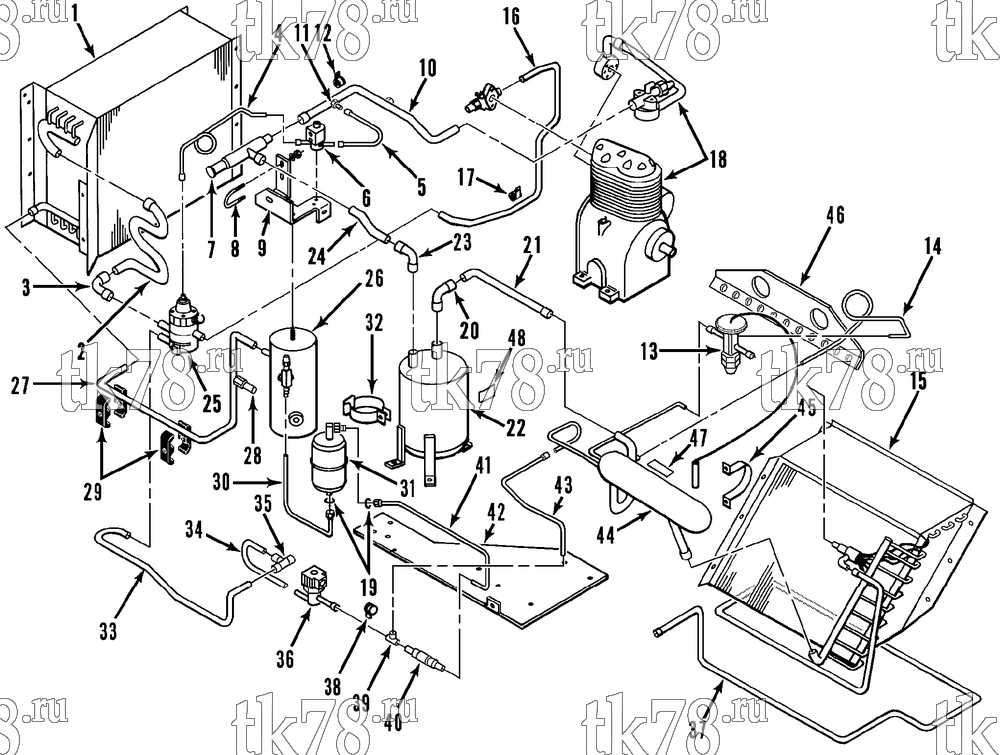

Установкa Thermo King SDZ 30 & 50 EMEIA w/TK 2.49 Engine схема REFRIGERATION COMPONENTS (7/92 & After) – 117D3
Обновление от: 4/7/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1333 | COIL - condenser (see 82A4) | 1 | |
| 2 | 66-4799 | TUBE - 3-way to condenser | 1 | |
| 3 | 55-3441 | ELBOW | 1 | |
| 4 | 66-6034 | TUBE - 3-way to pilot solenoid | 1 | |
| 5 | 66-6139 | TUBE - pilot solenoid | 1 | |
| 6 | 66-5908 | VALVE - pilot solenoid | 1 | |
|
10-66-5908 | Соленоид, KD-II/MD-II/RD-II/SB-III/V-Series | 28 750 ₽ |
|
| 41-1525 | COIL | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE - valve | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 55-4523 | SCREW - solenoid | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 7 | 66-4725 | VALVE - epr | 1 | |
| 8 | 55-5211 | U-BOLT | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT (hexstop) | 2 | ||
| 9 | 91-3118 | MOUNT - solenoid & regulator | 1 | |
| 10 | 66-6854 | TUBE - regulator to valve | 1 | |
| 11 | 66-5752 | FITTING | 1 | |
| 12 | 55-4552 | CLAMP - tube | 1 | |
| 55-2977 | SCREW - clamp | 1 | ||
| 55-1800 | LOCKWASHER | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 13 | 66-4793 | VALVE - expansion (R12, R134a) | 1 | |
| 66-5891 | VALVE - expansion (R502, R404A) | 1 | ||
| 55-5211 | U-BOLT | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 14 | 66-6033 | TUBE - equalizer | 1 | |
| 15 | 67-1332 | COIL - evaporator (see 102D13) | 1 | |
| 16 | 66-4813 | TUBE - discharge valve | 1 | |
| 17 | 55-570 | CLAMP - tube | 1 | |
| 55-2977 | SCREW - clamp | 1 | ||
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 18 | NSS | COMPRESSOR (see 125F10) | 1 | |
| 19 | 33-1015 | O-RING | 2 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 20 | 55-1122 | ELBOW | 2 | |
| 21 | 66-6852 | TUBE - exchanger to accumulator | 1 | |
| 22 | 67-1135 | TANK - accumulator (see 82A4) | 1 | |
| 23 | 66-637 | ELBOW | 2 | |
| 24 | 66-4950 | TUBE - accumulator to regulator | 1 | |
| 25 | 61-1236 | VALVE - 3-way (see 101B6) | 1 | |
| 55-3618 | SCREW - valve | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 26 | 67-1180 | TANK - receiver (see 125F4) | 1 | |
| 27 | 66-6030 | TUBE - receiver to condenser | 1 | |
| 66-3571 | FITTING - saddle | 1 | ||
| 28 | 66-7392 | VALVE - relief (see 119B8) | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 29 | 91-445 | CLAMP - tube | 4 | |
| 55-3121 | SCREW - clamp | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | LOCKNUT | 2 | ||
| 30 | 66-6035 | TUBE - receiver to drier | 1 | |
| 31 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 32 | 55-2365 | HANGER - dehydrator | 1 | |
| 55-1587 | SCREW - hanger | 1 | ||
| 55-2979 | SCREW - closing (hanger) | 1 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 33 | 66-6853 | TUBE - valve to tee | 1 | |
| 91-759 | CLAMP | 1 | ||
| 34 | 66-6039 | TUBE - valve to tee | 1 | |
| 35 | 55-2181 | TEE | 1 | |
| 36 | 61-283 | VALVE - solenoid (see 125C10, for connector see 115D14) | 1 | |
| 55-3029 | SCREW - valve | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 37 | 66-6027 | TUBE - defrost | 1 | |
| 38 | 55-6388 | CLAMP | 3 | |
| 55-2979 | SCREW - clamp | 1 | ||
| 55-7079 | SPACER | 1 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 39 | 55-3251 | TEE | 1 | |
| 66-6037 | TUBE - tee to valve | 2 | ||
| 40 | 66-5763 | VALVE - check | 1 | |
| 41 | 66-6038 | TUBE - valve to drier | 1 | |
| 55-8268 | SHOULDER | 1 | ||
| 55-8267 | NUT - shoulder | 1 | ||
| 42 | 91-255 | PLATE - refrigeration components | 1 | |
| 55-2977 | SCREW - tray (1 lg) | 3 | ||
| 55-3675 | SCREW - tray (1-3/4 lg) | 1 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | LOCKNUT | 4 | ||
| 43 | 66-6040 | TUBE - tee to exchanger | 1 | |
| 44 | 67-1017 | TANK - heat exchanger | 1 | |
| 45 | 99-8949 | CLAMP - tank | 2 | |
| 91-9862 | STRIP - neoprene (clamp) | 2 | ||
| 55-1587 | SCREW - tank | 3 | ||
| 55-1800 | LOCKWASHER | 3 | ||
| 55-2086 | FLATWASHER | 3 | ||
| 46 | 91-3114 | BRACKET - valve | 1 | |
| 55-1587 | SCREW - bracket | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 47 | 91-5270 | NAMEPLATE - pressure vessel | 1 | |
| 48 | 91-5271 | NAMEPLATE - pressure vessel | 1 |
