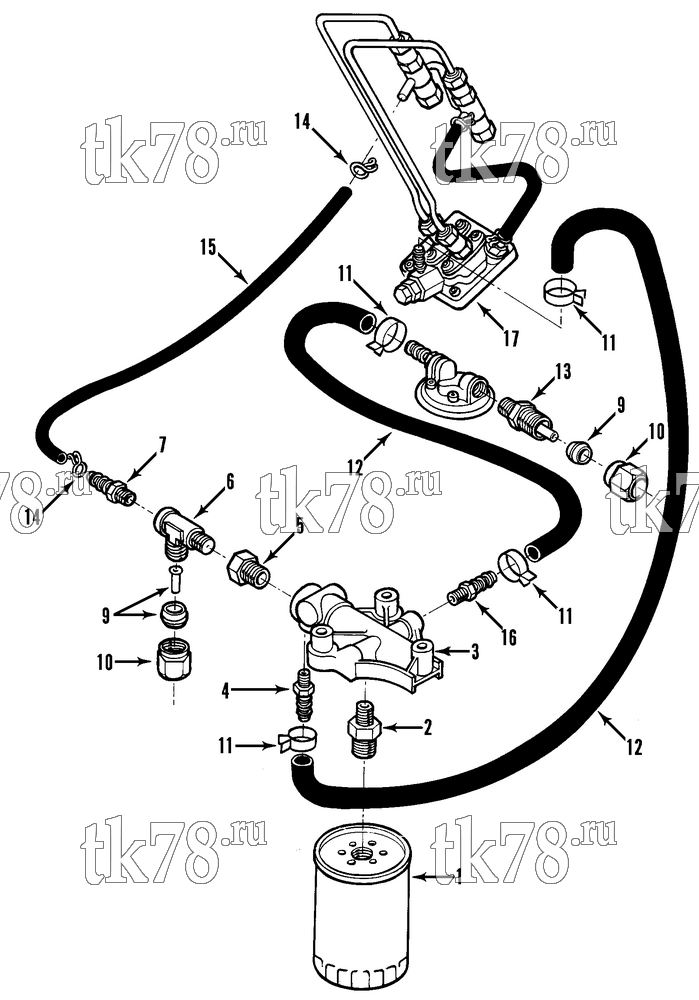

Установкa Thermo King SD-II & SD-II MAX схема FUEL FILTER GROUP (NYLON HOSE) – 137B11
Обновление от: 7/2/02
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-9098 | FILTER - fuel | 1 | |
|
11-9341 OEM | Фильтр топливный EMI 2000, MD/RD/KD/T-Series | 2 680 ₽ |
|
|
US-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 840 ₽ |
|
|
10-11-9341 | Фильтр топливный, MD/RD/KD/T-Series | 1 090 ₽ |
|
| 2 | 55-3168 | ADAPTER - fuel filter | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 3 | 11-6529 | BRACKET - fuel filter | 1 | |
| 55-7349 | SCREW - bracket (50 mm) | 1 | ||
| 55-7343 | SCREW - bracket (45 mm) | 2 | ||
| 55-7085 | FLATWASHER | 6 | ||
| 55-7339 | NUT | 3 | ||
| 55-8827 | CAP - nut (plastic) | 3 | ||
| 4 | 55-7809 | UNION | 1 | |
| 5 | 55-4799 | BUSHING | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 6 | 55-7331 | TEE | 1 | |
| 7 | 55-7808 | UNION | 1 | |
| 8 | Not Used | |||
| 9 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 10 | 55-7339 | NUT | 2 | |
| 11 | 55-8060 | CLAMP - hose | 4 | |
| 12 | 66-6857 | HOSE - fuel (cut to 610mm) | A/R | |
| 13 | 11-5639 | FITTING - hose | 1 | |
| 14 | 55-8048 | CLIP - hose | 2 | |
| 15 | 11-8332 | HOSE - fuel (cut to 470mm lg) | 1 | |
| 16 | 55-7810 | UNION | 1 | |
| 17 | NSS | INJECTION GROUP (see 122G8) | 1 |
