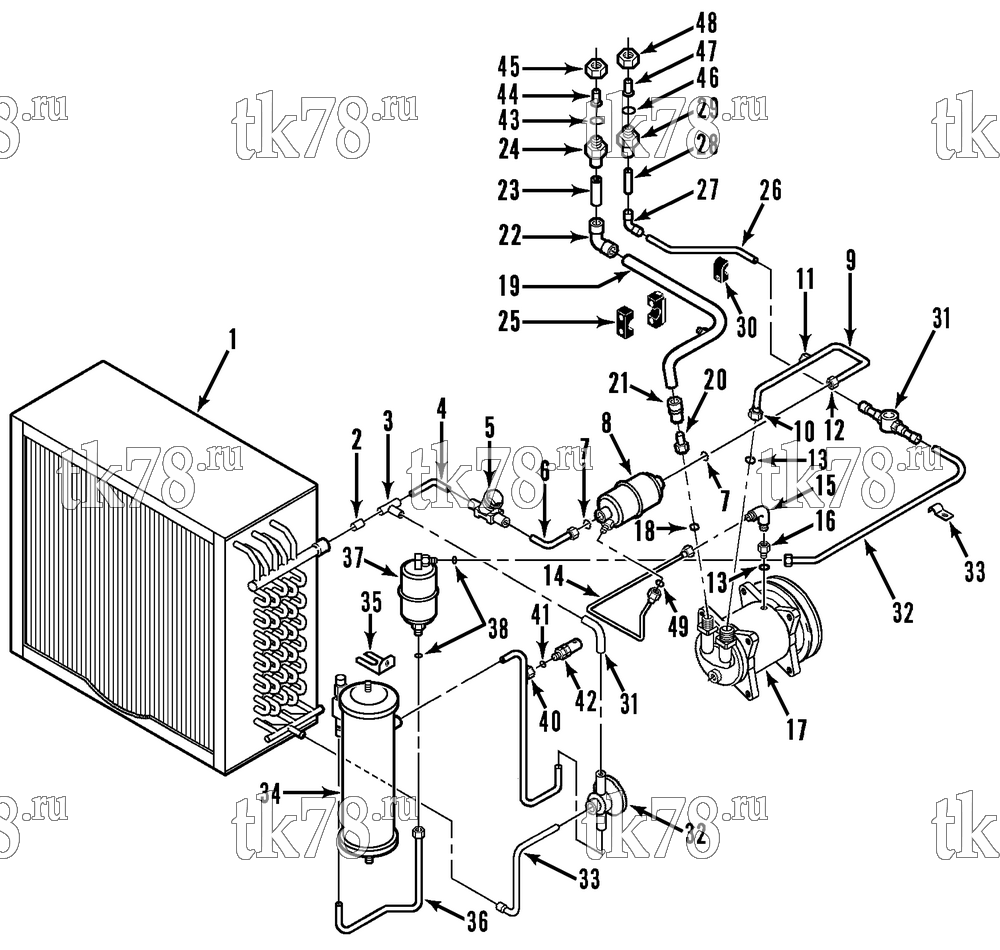

Установкa Thermo King SD-II & SD-II MAX схема REFRIGERATION - CONDENSER (R134a SCISSOR) – 129D9
Обновление от: 10/13/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 67-1234 | COIL - condenser (see 122A6) | 1 | |
| 91-8005 | NAMEPLATE - pressure | 1 | ||
| 2 | 66-7650 | TUBE - tee to bushing | 1 | |
| 3 | 66-8081 | TEE | 1 | |
| 4 | 66-7644 | TUBE - check valve to coil | 1 | |
| 5 | 66-3644 | VALVE - check (see 9G12) | 1 | |
| 6 | 66-8269 | TUBE - separator to check valve | 1 | |
| 7 | 33-566 | O-RING | 2 | |
| 8 | 66-8548 | SEPARATOR - oil | 1 | |
|
66-8548 OEM | Масляный сепаратор, V/VM-Series | 18 750 ₽ |
|
|
10-66-8548 | Масляный сепаратор, V/VM-Series | 4 870 ₽ |
|
| 9 | 66-8271 | TUBE - compressor to oil separator | 1 | |
| 10 | 66-7043 | FITTING - swivel (female) | 1 | |
| 11 | 55-7851 | UNION | 1 | |
| 12 | 55-6837 | NUT - tube | 1 | |
| 55-6838 | NUT - shoulder | 1 | ||
| 13 | 33-768 | GASKET - o-ring | 2 | |
| 14 | 66-7653 | TUBE - oil return | 1 | |
| 15 | 55-308 | ELBOW | 1 | |
| 16 | 22-879 | ADAPTER - oil separator | 1 | |
| 17 | 102-1028 | COMPRESSOR - 15XD (see 122A6) | 1 | |
| 18 | 33-2350 | O-RING | 1 | |
| 19 | 66-8083 | TUBE - suction bulkhead | 1 | |
| 20 | 66-7042 | FITTING - swivel | 1 | |
| 21 | 55-7528 | COUPLING | 1 | |
| 22 | 55-7385 | ELBOW | 1 | |
| 23 | 66-8272 | TUBE | 1 | |
| 24 | 55-8643 | ADAPTER (o-ring seal) | 1 | |
| 25 | 91-372 | CLAMP - tube | 1 | |
| 55-7027 | SCREW - clamp | 1 | ||
| 55-7378 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-7373 | NUT - captive | 1 | ||
| 26 | 66-8273 | TUBE - sight glass | 1 | |
| 27 | 55-4142 | ELBOW | 1 | |
| 28 | 66-8274 | TUBE | 1 | |
| 29 | 55-6403 | ADAPTER (o-ring seal) | 1 | |
| 30 | 55-6389 | CLAMP - tube | 1 | |
| 55-8464 | SCREW - clamp | 1 | ||
| 55-7378 | LOCKWASHER | 1 | ||
| 55-7075 | FLATWASHER | 1 | ||
| 55-6389 | NUT - captive | 1 | ||
| 31 | 66-7655 | TUBE - tee to valve | 1 | |
| 32 | 66-7651 | VALVE - head pressure control | 1 | |
| 33 | 66-7656 | TUBE - coil to valve | 1 | |
| 34 | 67-1180 | TANK - receiver (see 125F4) | 1 | |
| 55-5078 | NUT - tank | 2 | ||
| 55-2298 | WASHER - special | 2 | ||
| 35 | 91-6098 | BRACKET - receiver tank | 1 | |
| 55-7339 | NUT - bracket | 1 | ||
| 55-7069 | FLATWASHER | 1 | ||
| 36 | 66-7573 | TUBE - tank to dehydrator | 1 | |
| 55-8267 | NUT - dehydrator | 2 | ||
| 55-8268 | SHOULDER | 2 | ||
| 37 | 61-800 | DEHYDRATOR | 1 | |
|
10-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 2 550 ₽ |
|
|
PP-61-800 | Дегидратор, KD-II/MD-II/MD-XXX/RD-II/TD-II / T/TS-Series | 1 400 ₽ |
|
| 38 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 39 | 66-8082 | TUBE - coil to receiver | 1 | |
| 40 | 99-3060 | FITTING - saddle | 1 | |
| 41 | 33-1015 | O-RING | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 42 | 66-7392 | VALVE - relief | 1 | |
|
10-66-7392 | Предохранительный клапан | 3 480 ₽ |
|
| PP-66-7392 | Предохранительный клапан | 1 730 ₽ |
|
|
| 43 | 33-1222 | O-RING - suction | 1 | |
| 44 | 55-7162 | SHOULDER | 1 | |
| 45 | 55-7054 | NUT | 1 | |
| 46 | 33-566 | O-RING - discharge | 1 | |
| 47 | 55-6837 | SHOULDER | 1 | |
| 48 | 55-6838 | NUT | 1 | |
| 49 | 33-1461 | O-RING - oil return | 1 |
