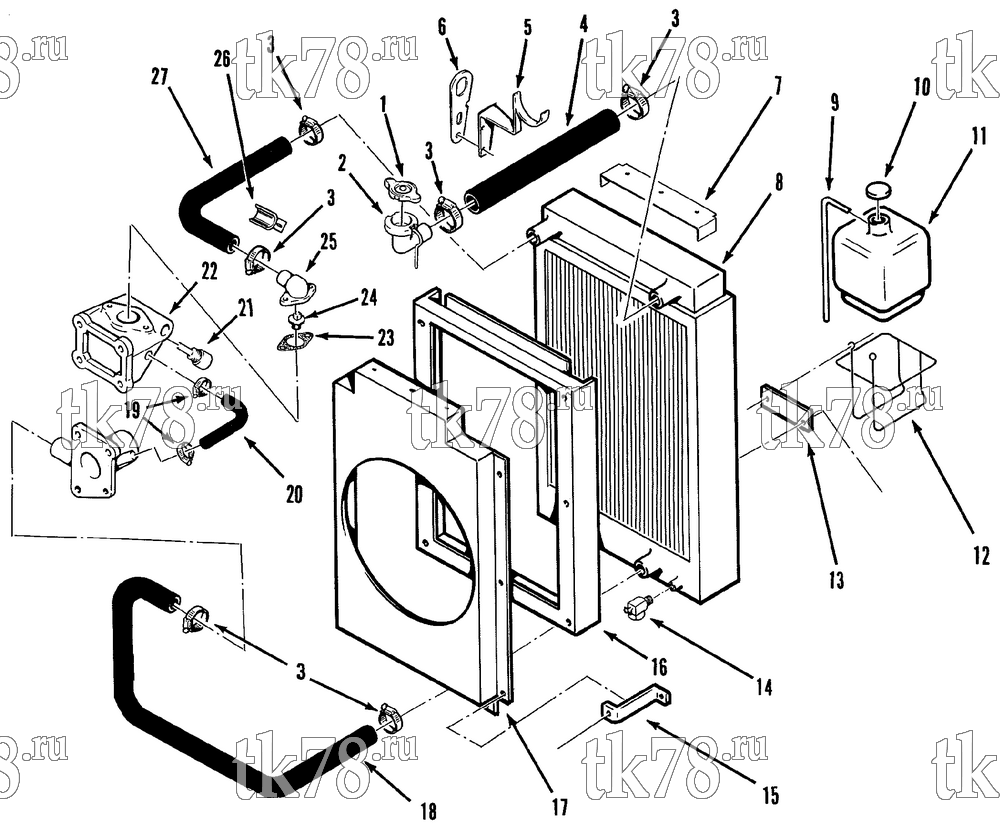

Установкa Thermo King SD-I 1012 M1 схема ENGINE COOLING SYSTEM – 82G9
Обновление от: 6/11/04
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-4915 | CAP - radiator | 1 | |
| 2 | 11-4031 | NECK - filler | 1 | |
| 99-215 | NECK - radiator filler | 1 | ||
| 3 | 55-558 | CLAMP - hose | 6 | |
| 4 | 11-6299 | HOSE - filler | 1 | |
| 5 | 99-9115 | BRACKET - hose support | 1 | |
| 6 | 91-463 | BRACKET - lifting eye | 1 | |
| 7 | 91-470 | COVER - radiator | 1 | |
| 8 | 12-435 | RADIATOR | 1 | |
| 9 | 99-1655 | HOSE - overflow | 1 | |
| 10 | 11-4665 | CAP - tank | 1 | |
| 11 | 11-4607 | TANK - overflow | 1 | |
| 12 | 11-4693 | HANGER - overflow tank | 1 | |
| 13 | 99-9114 | BRACKET - hanger | 1 | |
| 14 | 55-2158 | DRAIN COCK | 1 | |
| 15 | 99-3416 | CLAMP - radiator | 4 | |
| 16 | 98-2892 | SHROUD - radiator | 1 | |
| 17 | 98-1714 | PLENUM - radiator | 1 | |
| 18 | 11-6510 | HOSE - lower | 1 | |
| 19 | 55-3401 | CLAMP - hose | 2 | |
| 20 | 11-5932 | HOSE - bypass | 1 | |
| 21 | 44-5027 | SWITCH - water temperature | 1 | |
| 22 | 11-5860 | HOUSING - thermostat | 1 | |
| 23 | 33-487 | GASKET - thermostat housing | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 24 | 11-7702 | THERMOSTAT - engine water | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 25 | 11-3154 | ELBOW - water outlet | 1 | |
| 55-5424 | SCREW - elbow | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 26 | 91-465 | BRACKET - hose support | 1 |
