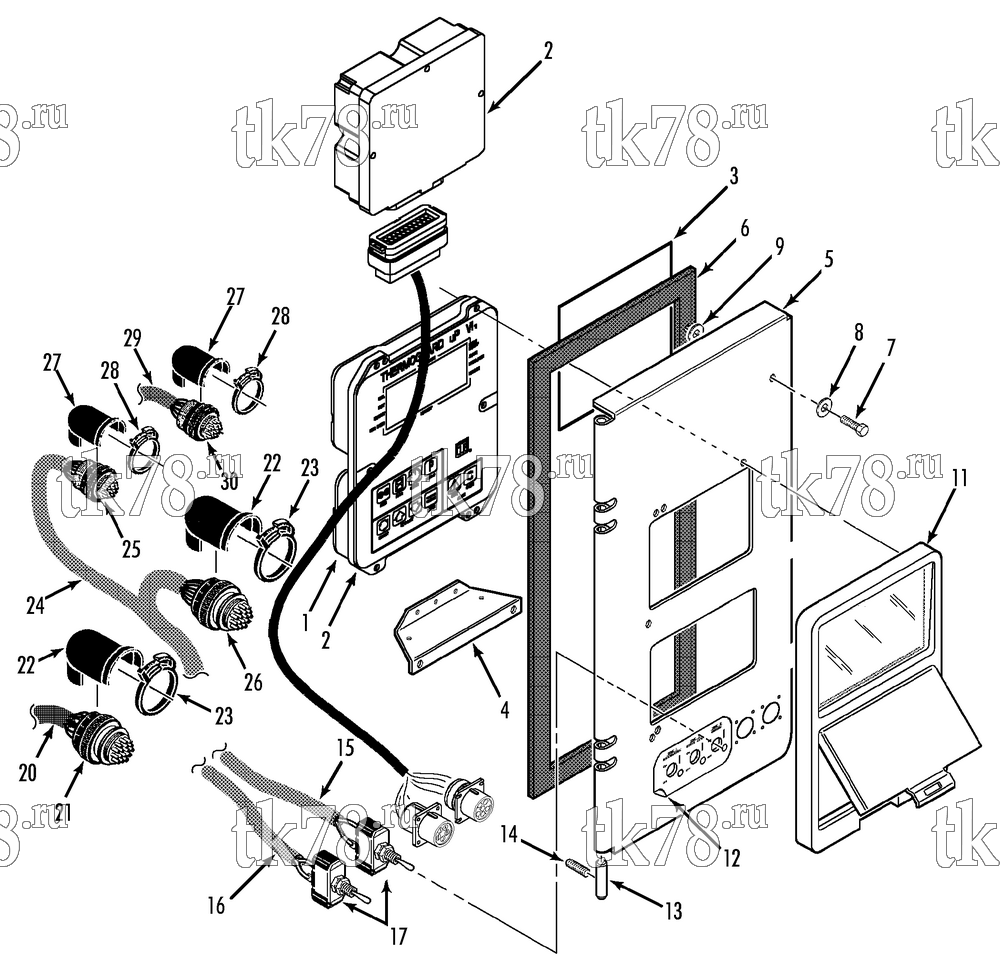

Установкa Thermo King SB-III WHISPER MULTI-TEMP SR схема CONTROL BOX COVER (WHISPER TCI-3 DAS, TLE 6/3) – 156B9
Обновление от: 12/15/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-2426 | CONTROLLER - microprocessor (reman, see 156B4) | 1 | |
| 2 | 45-2247 | DATALOGGER - DAS IV (see 156B7) | 1 | |
| 3 | 91-9748 | NAMEPLATE - relay board | 1 | |
| 4 | 91-5728 | BRACKET - harness | 1 | |
| 55-4331 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 5 | 98-7935 | DOOR - control box (w/ communications & DAS) | 1 | |
| 6 | 33-2216 | GASKET - door | 1 | |
| 7 | 55-6352 | SCREW - door | 2 | |
| 8 | 55-3028 | WASHER - sealer | 2 | |
| 9 | 55-6772 | WASHER - split | 2 | |
| 10 | 33-2899 | GASKET - bezel | 2 | |
| 11 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 12 | 92-137 | NAMEPLATE - switch | 1 | |
| 13 | 99-7900 | ROD - hinge | 2 | |
| 14 | 55-3473 | PIN - hinge | 2 | |
| 15 | 41-1287 | HARNESS - evaporator switch (zone 3, incl item 17) | 1 | |
| 16 | 41-1288 | HARNESS - evaporator switch (zone 2, incl item 17) | 1 | |
| 17 | 44-7792 | SWITCH (1pst) | 2 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 18 | 41-2895 | HARNESS - switch (host/zone 1, evaporator, incl item 19) | 1 | |
| 19 | 44-7792 | SWITCH (1pst) | 1 | |
|
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 20 | 41-2024 | HARNESS - sensor | 1 | |
| 21 | 41-745 | CONNECTOR - circular (37-pin) | 1 | |
| 33-3716 | SEAL - peripheral | 1 | ||
| 22 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 23 | 55-7618 | CLAMP (plastic) | 2 | |
| 24 | 41-3467 | HARNESS - interconnect | 1 | |
| 25 | 41-743 | CONNECTOR - circular | 1 | |
| 26 | 41-744 | CONNECTOR - circular | 1 | |
| 27 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 28 | 55-7617 | CLAMP (plastic) | 2 | |
| 29 | 41-2276 | HARNESS - remote control | 1 | |
| 41-2897 | HARNESS - remote (w/ logging) | 1 | ||
| 41-1878 | HARNESS - remote (w/ logging, for flush mount controller) | 1 | ||
| 30 | 41-746 | CONNECTOR - circular (9-pin) | 1 |
