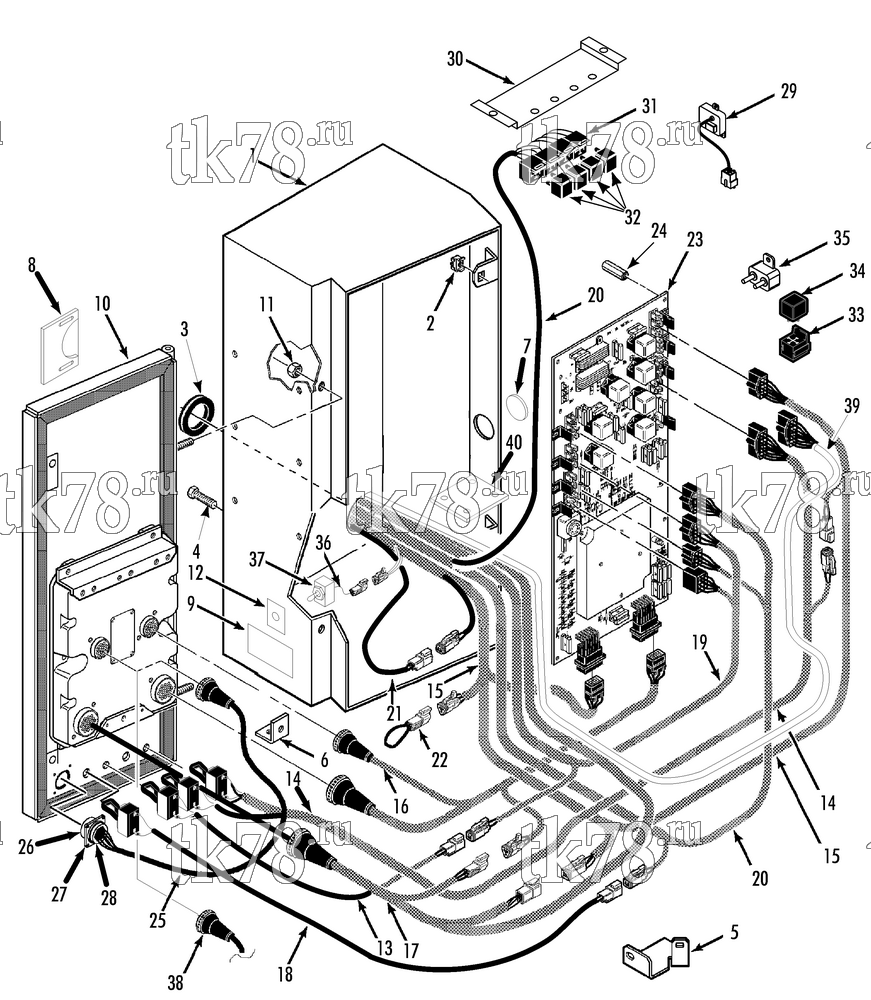

Установкa Thermo King SB-III WHISPER MULTI-TEMP SR схема CONTROL BOX ASSEMBLY (WHISPER TCI) – 151G3
Обновление от: 3/2/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5687 | BOX - control | 1 | |
| 2 | 55-3059 | NUT - captive | 2 | |
| 3 | 33-628 | GROMMET (2-1/8 id) | 1 | |
| 4 | 55-3000 | SCREW - ground | 1 | |
| 55-2996 | LOCKWASHER | 3 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2965 | NUT | 3 | ||
| 5 | 91-7745 | BRACKET - control box | 1 | |
| 55-3027 | SCREW - bracket | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-4560 | NUT | 1 | ||
| 6 | 91-2698 | ANGLE - control box | 2 | |
| 55-538 | SCREW - angle | 4 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-6875 | WASHER - special | 4 | ||
| 7 | 55-6474 | PLUG - button | 1 | |
| 8 | 91-9860 | PLATE - cover | 1 | |
| 55-9374 | SCREW - plate | 2 | ||
| 9 | 91-7135 | NAMEPLATE - blank | 1 | |
| 10 | NSS | COVER - box (see 151G1) | 1 | |
| 11 | 55-2114 | NUT - cover | 2 | |
| 55-4954 | LOCKNUT - cover | 2 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 12 | 93-554 | NAMEPLATE - on/off (w/ logging) | 1 | |
| 13 | 41-1374 | HARNESS - remote evaporator (zone 2, see 144G13) | 1 | |
| 41-1288 | HARNESS - evaporator switch (zone 3, see 144G13) | 1 | ||
| 14 | 41-2796 | HARNESS - switch (host/zone 1, see 157A1) | 1 | |
| 15 | 41-3466 | HARNESS - main (see 138D7) | 1 | |
| 16 | 41-2257 | HARNESS - interconnecting | 1 | |
| 17 | 41-2024 | HARNESS - sensor (see 138D3) | 1 | |
| 18 | 41-1287 | HARNESS - evaporator switch (zone 3, see 144G13) | 1 | |
| 19 | 41-2893 | HARNESS - evaporator (zone 2, see 144G14) | 1 | |
| 20 | 41-2892 | HARNESS - evaporator (zone 3, see 144G14) | 1 | |
| 21 | 41-3521 | HARNESS - alternator | 1 | |
| 44-9585 | PLUG (1-pin) | 1 | ||
| 22 | 41-1792 | JUMPER | 1 | |
| 23 | 41-7423 | BOARD - relay interface (see 156A13) | 1 | |
| 55-2997 | SCREW - standoff & relay board (3/8 lg) | 20 | ||
| 55-3845 | SCREW - relay board (1-1/2 lg) | 2 | ||
| 55-2998 | LOCKWASHER - internal thread | 9 | ||
| 24 | 99-9889 | SPACER - standoff (relay board) | 11 | |
| 25 | 41-4322 | HARNESS - datapack | 1 | |
| 26 | 41-1127 | CONNECTOR - receptacle (5-pin) | 1 | |
| 27 | 41-1126 | CLAMP - cable | 1 | |
| 28 | 41-1129 | CAP - dust | 1 | |
| 29 | 41-7067 | MODULE - timer | 1 | |
| 41-7067 OEM | Таймер | 5 960 ₽ |
|
|
| 44-5827 | CONNECTOR - male (4-pin) | 1 | ||
| 44-5139 | TERMINAL - fingrip (16-14 ga) | 4 | ||
| 51-2082 | SCREW - module | 3 | ||
| 55-3800 | LOCKWASHER - module | 3 | ||
| 55-8430 | SPACER - module | 3 | ||
| 30 | 91-9324 | PLATE - relay | 1 | |
| 55-3015 | SCREW - plate | 2 | ||
| 55-2996 | LOCKWASHER | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 31 | 44-5537 | SOCKET - relay | 2 | |
| 55-3015 | SCREW - socket | 2 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2965 | NUT | 2 | ||
| 32 | 41-895 | RELAY (1pdt) | 2 | |
|
30-41-895 | Реле | 1 650 ₽ |
|
| 33 | 41-1325 | SOCKET - mini plug | 1 | |
| 55-3843 | SCREW - socket | 1 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 34 | 41-478 | RELAY (1pst) | 1 | |
| 35 | 44-6146 | BREAKER - circuit (40 amp) | 1 | |
|
10-44-6146 | Автоматический выключатель, 40A | 2 220 ₽ |
|
| 55-3015 | SCREW - circuit breaker | 1 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2965 | NUT | 1 | ||
| 36 | 41-1791 | HARNESS - micro-P on/off | 1 | |
| 37 | 44-7792 | SWITCH (1pst) | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 38 | 41-3360 | HARNESS - remote | 1 | |
| 39 | 41-2029 | HARNESS - high voltage box to low voltage box (see 151F4 & 151F5) | 1 | |
| 40 | 91-6836 | COVER - connector | 1 | |
| 55-3427 | SCREW - cover | 4 | ||
| 55-2359 | FLATWASHER | 8 | ||
| 55-2350 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 |
