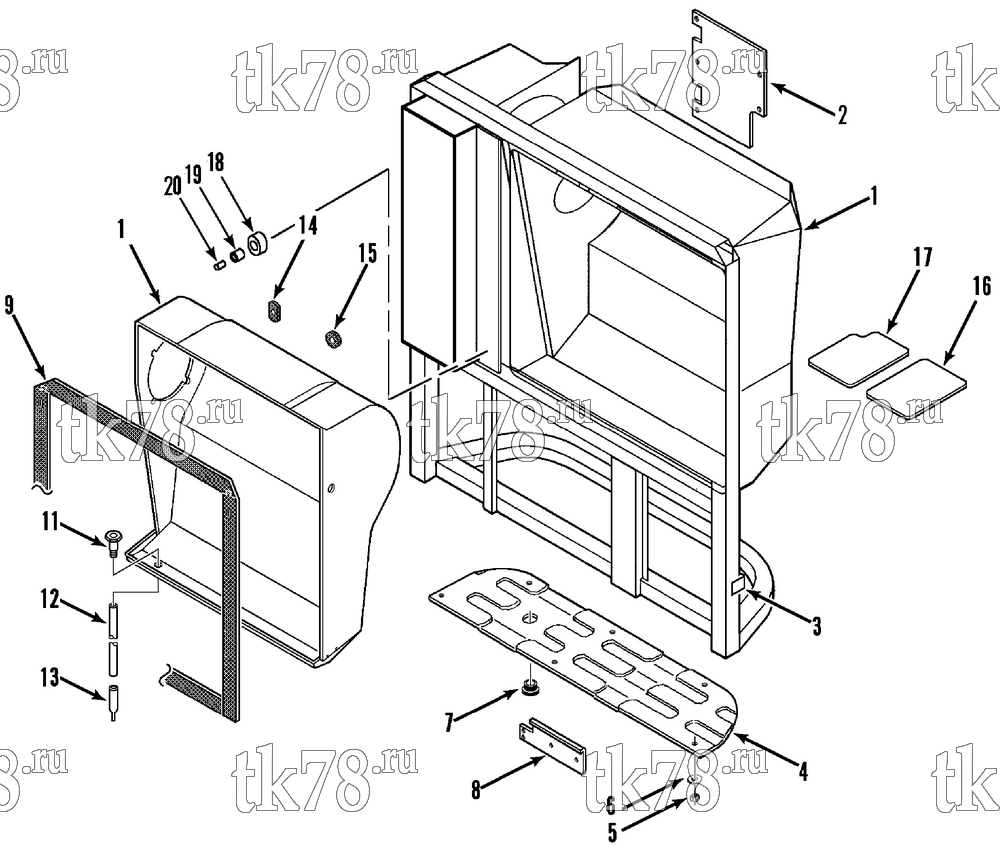

Установкa Thermo King SB-III WHISPER 25K схема CONDENSER & EVAPORATOR COVERS – 123D4
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3739 | FRAME - condenser (SB-III 30, SB-III 30 TC-2 & TC-3) | 1 | |
| 98-3740 | FRAME - condenser (SB-III 50, SB-III 50 TC-2) | 1 | ||
| 98-4301 | FRAME - condenser (SB-III 30 + SB-III SR DE-2 & DE-3) | 1 | ||
| 98-4871 | FRAME - condenser (SB-III 30 TC-2 & TC-3) | 1 | ||
| 98-4077 | FRAME - condenser (SB-III SR MP IV) | 1 | ||
| 98-4575 | FRAME - condenser (SB-III SE EMEIA) | 1 | ||
| 98-3487 | FRAME - condenser (SB-III 50 TC EMEIA) | 1 | ||
| 98-4606 | FRAME - cond (MAGNUM WHISPER, SB-III S, SB-III S SR) | 1 | ||
| 98-5149 | FRAME - condenser (SB-III 30 + 50 SLE EMEIA) | 1 | ||
| 98-5148 | FRAME - condenser (SB-III 50 MAX+, SR+ & WHISPER TCI) | 1 | ||
| 98-5171 | FRAME - cond (SB-III SR+ MAX+ & King of the Road, before 5/96) | 1 | ||
| 98-5277 | FRAME - condenser (SB-III 50 DE-3) | 1 | ||
| 98-5473 | FRAME - condenser (WHISPER DE, after 4/96) | 1 | ||
| 98-5171 | FRAME - cond (SB-III SR+, WHISPER, Multi-Temp, Grocery, WHISPER & WHISPER 25K after 4/96) | 1 | ||
| 2 | 91-739 | COVER - blower (EMEIA) | 1 | |
| 55-3018 | SCREW - cover | 5 | ||
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 5 | ||
| 55-2086 | FLATWASHER | 5 | ||
| 55-3085 | NUT - captive | 3 | ||
| 55-7489 | INSERT - threaded | 2 | ||
| 3 | 91-1149 | HINGE - grille | 6 | |
| 91-1150 | HINGE - panel (curbside) | 2 | ||
| 4 | 98-4653 | PANEL - bottom | 1 | |
| 5 | 55-4953 | NUT - panel | 6 | |
| 6 | 55-2945 | WASHER - special | 6 | |
| 7 | 55-7977 | PLUG - bottom | 1 | |
| 8 | 91-2659 | BRACKET - harness | 1 | |
| 55-1329 | SCREW - bracket | 4 | ||
| 9 | 33-2918 | GASKET - sill | 1 | |
| 10 | 98-3234 | LINER - evaporator | 1 | |
| 11 | 99-7947 | TUBE - drain | 2 | |
| 12 | 11-3305 | HOSE - drain (preformed) | 2 | |
| 13 | 66-1273 | VALVE - check | 2 | |
| 14 | 91-912 | WASHER - insulating (rectangle) | A/R | |
| 91-6842 | WASHER - insulating (round) | A/R | ||
| 15 | 99-7945 | WASHER - insulating | A/R | |
| 16 | 98-3294 | COVER - engine housing (EMEIA) | 1 | |
| 17 | 98-3295 | COVER - belts (EMEIA) | 1 | |
| 55-3136 | RIVET - cover | 5 | ||
| 18 | 91-9965 | INSULATION - suction tube | 1 | |
| 19 | 91-9966 | INSULATION - suction tube | 1 | |
| 20 | 91-9967 | INSULATION - suction tube | 1 |
