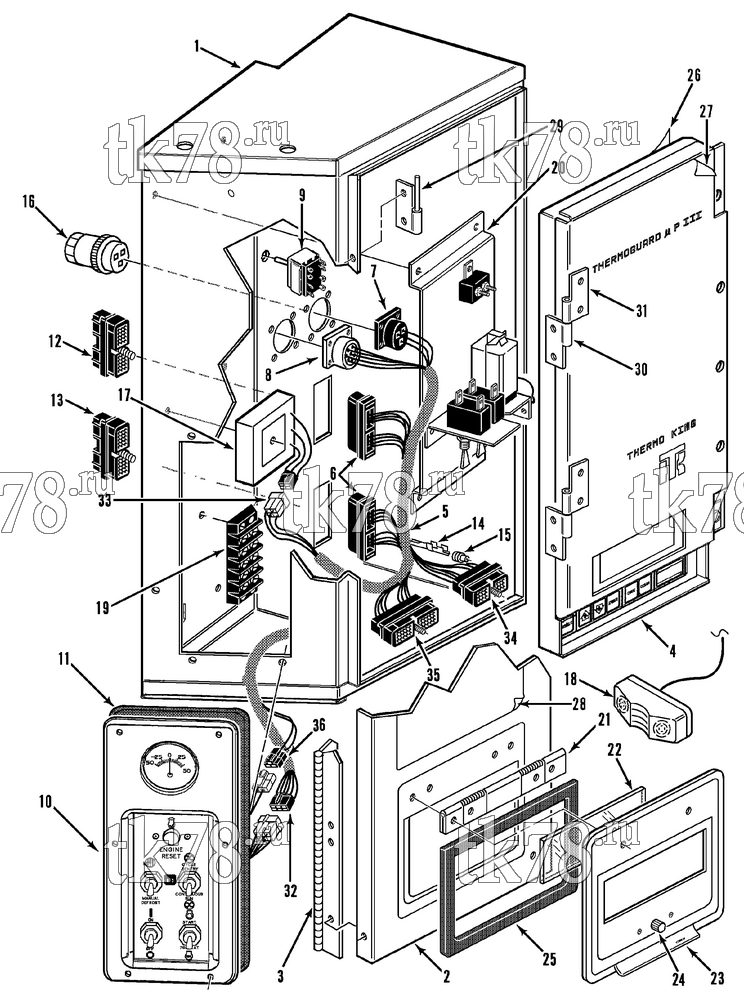

Установкa Thermo King SB-III SR & SR MP+ w/di 2.2 Engine схема CONTROL BOX ASSEMBLY (1/91 & After) – 97D1
Обновление от: 7/31/95
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3883 | BOX - control (microprocessor) | 1 | |
| 2 | 91-1441 | COVER - control box | 1 | |
| 99-8562 | STRIP - gasket (door) | A/R | ||
| 3 | 91-1442 | HINGE - cover | 1 | |
| 4 | 845-1427 | CONTROLLER - microprocessor (reman) | 1 | |
| 55-5396 | SCREW - panel | 3 | ||
| 55-6772 | LOCKWASHER | 3 | ||
| 55-3059 | NUT - captive | 3 | ||
| 5 | 44-8957 | HARNESS - control (incl 5, 6, 8, 14, 15, 32-35) | 1 | |
| 6 | 44-7829 | CONNECTOR - tower (22-pin) | 2 | |
| 44-7811 | LOCK - secondary | 4 | ||
| 7 | 44-8331 | CONNECTOR | 1 | |
| 44-5066 | TERMINAL - fingrip | 3 | ||
| 33-2037 | GASKET - connector | 1 | ||
| 8 | 44-8329 | RECEPTACLE | 1 | |
| 44-8330 | SOCKET | 1 | ||
| 44-8333 | CAP - dust | 1 | ||
| 44-8334 | STRAIN - relief | 1 | ||
| 9 | 44-8312 | SWITCH | 1 | |
| 44-3579 | STRIP - jumper | 1 | ||
| 91-2602 | NAMEPLATE - switch position | 1 | ||
| 10 | N/A | PANEL - switch (see 89F9) | 1 | |
| 11 | 33-2125 | GASKET - panel | 1 | |
| 12 | 44-8897 | PLUG (24-pin, part of main harness 44-8896) | 1 | |
| 13 | 44-8898 | PLUG (24-pin) | 1 | |
| 14 | 44-9587 | SOCKET | 40 | |
| 44-9602 | PLUG - cavity | 8 | ||
| 15 | 44-5837 | SEAL - cable (gray, 14-16 ga) | A/R | |
| 16 | 44-8937 | FINGRIP (10 gauge) | 3 | |
| 44-8319 | BOOT - heat shrinkable | 1 | ||
| 17 | 44-6697 | FLASHER - Sentry light (optional) | 1 | |
| 18 | 44-6878 | LIGHT - indicator (optional) | 1 | |
| 44-3711 | BULB - light | 2 | ||
| 19 | 44-4269 | BOARD - terminal | 1 | |
| 91-2063 | NAMEPLATE | 2 | ||
| 20 | N/A | PANEL - circuit breaker (see 96A4) | 1 | |
| 21 | 91-1591 | HINGE - door access | 1 | |
| 22 | 91-1593 | WINDOW | 1 | |
| 23 | 91-1590 | DOOR - access | 1 | |
| 55-5975 | SCREW - door & hinge | 4 | ||
| 55-2996 | LOCKWASHER | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 24 | 91-1592 | LATCH - door access | 1 | |
| 55-3010 | RIVET - latch | 2 | ||
| 91-2489 | NAMEPLATE - latch | 1 | ||
| 25 | 33-2045 | GASKET - access door | 1 | |
| 26 | 91-1602 | NAMEPLATE - relay location | 1 | |
| 27 | 91-1603 | NAMEPLATE - microprocessor | 1 | |
| 28 | 91-1607 | NAMEPLATE - operating instructions | 1 | |
| 29 | 91-1606 | HINGE (w/ pin) | 2 | |
| 30 | 91-1604 | HINGE - microprocessor | 2 | |
| 31 | 91-1605 | HINGE - microprocessor (top) | 1 | |
| 55-4576 | SCREW - hinge | 4 | ||
| 55-3013 | FLATWASHER | 4 | ||
| 55-2999 | NUT | 4 | ||
| 32 | 44-5030 | CONNECTOR (6-pin) | 1 | |
| 33 | 44-5814 | CONNECTOR (4-pin) | 1 | |
| 34 | 44-8858 | CONNECTOR (18-pin) | 1 | |
| 35 | 44-8857 | CONNECTOR (30-pin) | 1 | |
| 44-9240 | TERMINAL - female (16-20 ga) | 1 | ||
| 36 | 44-5219 | CONNECTOR (2-pin) | 1 |
