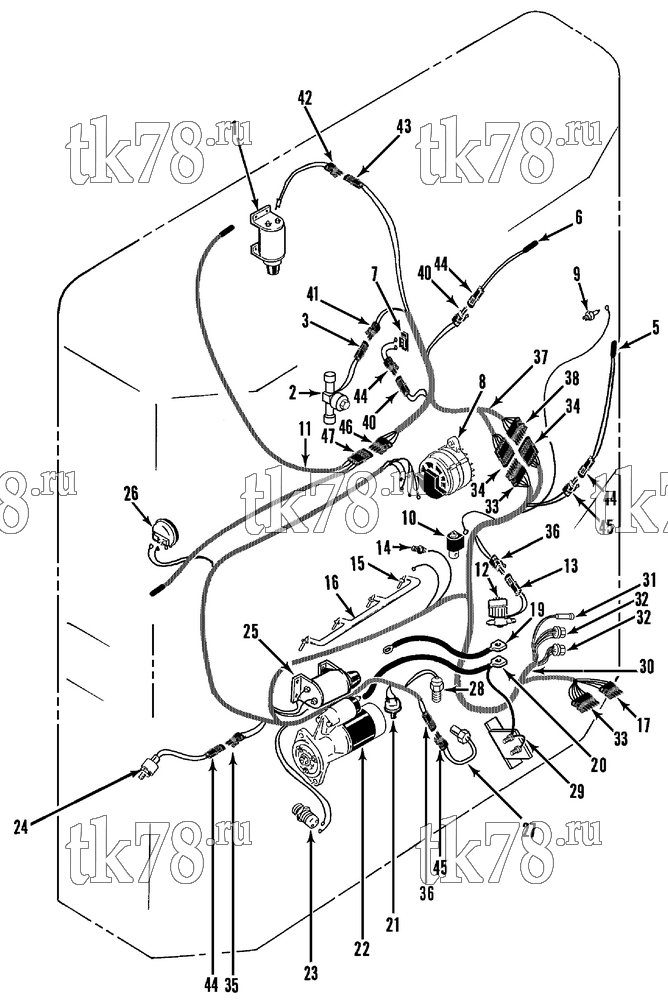

Установкa Thermo King SB-III SR & SR MP+ w/di 2.2 Engine схема ELECTRICAL COMPONENTS (12/90 & Before) – 89F8
Обновление от: 6/15/13
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 44-2823 | SOLENOID - defrost (see 66B11) | 1 | |
|
10-44-2823 | Соленоид оборотов двигателя | 5 370 ₽ |
|
| 44-6451 | CONNECTOR (1-pin) | 1 | ||
| 44-2756 | DIODE (silicone) | 1 | ||
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 2 | 66-7789 | VALVE - solenoid | 1 | |
| 3 | 44-5835 | CONNECTOR (2-pin) | 1 | |
| 4 | 44-6019 | BOLT - thermistor (Cycle Sentry) | 1 | |
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 55-4613 | FLATWASHER | 1 | ||
| 55-790 | LOCKWASHER | 1 | ||
| 5 | 44-8316 | SENSOR - ambient | 1 | |
| 6 | 44-8316 | SENSOR - temperature (evaporator) | 1 | |
| 44-5838 | CONNECTOR - tower (2-pin) | 1 | ||
| 7 | 44-8886 | SWITCH - temperature (emergency operation) | 1 | |
| 55-4507 | SCREW - switch | 3 | ||
| 55-2201 | FLATWASHER | 3 | ||
| 55-3800 | LOCKWASHER | 1 | ||
| 8 | 41-2195 | ALTERNATOR (37 amp, model EA, see 84D14, model 8MR) | 1 | |
|
10-41-2195 | Генератор 37A, MD/RD/TD-II / SB-II/III | 19 510 ₽ |
|
| 9 | 44-6534 | SENSOR - radiator | 1 | |
|
10-44-6534 | Сенсор радиатора | 8 830 ₽ |
|
| 10 | 66-5316 | VALVE - pilot solenoid | 1 | |
| 41-1525 | COIL - valve | 1 | ||
|
10-41-1525 | Катушка соленоида, 12V 8W | 15 030 ₽ |
|
| 44-2756 | DIODE - solenoid | 1 | ||
|
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 55-8786 | NUT - valve | 1 | ||
| 11 | 44-8315 | SENSOR - temperature (discharge & return air) | 1 | |
| 44-7881 | CONNECTOR - tower (4-pin) | 1 | ||
| 12 | 66-5374 | VALVE - solenoid (hot gas bypass, see 138A7) | 1 | |
| 13 | 44-5835 | CONNECTOR - shroud (2-pin) | 1 | |
| 14 | 44-3018 | SWITCH - water temperature | 1 | |
|
10-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 5 830 ₽ |
|
| PP-44-3018 | Датчик температуры двигателя, Yanmar / Isuzu | 2 200 ₽ |
|
|
| 15 | 41-7370 | GLOW PLUG | 4 | |
|
10-41-7370 | Свеча накаливания, Isuzu 2.2 DI (D201), SB/SB-II/SB-III/SMX/SMX-II | 2 000 ₽ |
|
| 16 | 44-6602 | CONNECTOR - glow plug | 1 | |
| 17 | 44-7881 | CONNECTOR - tower (4-pin) | 1 | |
| 18 | 44-7997 | TERMINAL - battery | 1 | |
| 19 | 44-8310 | CABLE - battery | 1 | |
| 44-7828 | BOOT - battery cable (black) | 1 | ||
| 20 | 44-8311 | CABLE - starter | 1 | |
| 44-7051 | BOOT - battery cable cover (red) | 1 | ||
| 21 | 44-4774 | SWITCH - oil pressure | 1 | |
|
10-44-4774 | Выключатель давления масла | 5 530 ₽ |
|
| 22 | 45-2325 | STARTER | 1 | |
| 23 | 44-6016 | SENSOR - rpm (Cycle Sentry) | 1 | |
|
10-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 8 900 ₽ |
|
| PP-44-6016 | Датчик оборотов двигателя, SB-I/II/III / MD-200/300 / TS-200/300 | 4 310 ₽ |
|
|
| 44-7620 | BOOT - rpm sensor | 1 | ||
| 24 | 41-3670 | SWITCH - hpco | 1 | |
| 44-5835 | CONNECTOR (2-pin) | 1 | ||
| 25 | 44-6544 | SOLENOID - engine | 1 | |
|
10-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 19 090 ₽ |
|
|
PP-44-6544 | Соленоид оборотов двигателя, MD-II/KD-II/SB-II/SB-III | 7 150 ₽ |
|
| 44-2756 | DIODE (silicone) | 1 | ||
|
|
10-44-2756 | Диод соленоида тяги | 1 920 ₽ |
|
| 26 | 44-6545 | SWITCH - air pressure | 1 | |
|
P-12-01039-08 | Выключатель размораживания, Maxima/Supra/ Vector 1350/1550/18XX/19XX | 16 490 ₽ |
|
| 27 | 44-6019 | BOLT - thermistor | 1 | |
|
|
10-44-6019 | Термистор | 4 880 ₽ |
|
| 44-5835 | CONNECTOR - shroud (2-pin) | 1 | ||
| 28 | 44-6727 | VALVE - solenoid (fuel) | 1 | |
|
10-44-6727 | Топливный соленоид, SB-II/III / SMX/SMX-II | 4 300 ₽ |
|
| 29 | 44-8244 | FUSE LINK (see 89F14) | 1 | |
|
10-44-8244 | Провод предохранителя | 1 790 ₽ |
|
| 30 | 44-8295 | HARNESS - main | 1 | |
| 31 | 44-8318 | PLUG (3-pin) | 1 | |
| 44-8319 | BOOT - heat shrinkable | 1 | ||
| 32 | 44-7884 | CONNECTOR - shroud (22-pin) | 2 | |
| 44-7811 | LOCK - secondary | 4 | ||
| 44-7812 | PLUG - cavity (green, for item 32) | 6 | ||
| 33 | 44-7872 | CONNECTOR - indicator lights & evaporator (6-pin) | 2 | |
| 34 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 35 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 36 | 44-5838 | CONNECTOR - tower (2-pin) | 3 | |
| 44-5836 | TERMINAL - male (14-16 ga) | A/R | ||
| 44-5839 | TERMINAL - female (14-16 ga) | A/R | ||
| 44-5837 | SEAL - cable (gray, 14-16 ga) | A/R | ||
| 37 | 44-8293 | HARNESS - evaporator | 1 | |
| 38 | 44-7872 | CONNECTOR - tower (6-pin) | 1 | |
| 39 | 44-8294 | CONNECTOR - shroud (6-pin) | 1 | |
| 40 | 44-5835 | CONNECTOR - shroud (2-pin) | 2 | |
| 41 | 44-5838 | CONNECTOR - tower (2-pin) | 1 | |
| 42 | 44-7330 | CONNECTOR - shroud (1-pin) | 1 | |
| 43 | 44-7327 | CONNECTOR - tower (1-pin) | 1 | |
| 44 | 44-5838 | CONNECTOR - tower (2-pin) | 2 | |
| 45 | 44-5835 | CONNECTOR (2-pin) | 2 | |
| 46 | 44-7880 | CONNECTOR - shroud (4-pin) | 1 |
