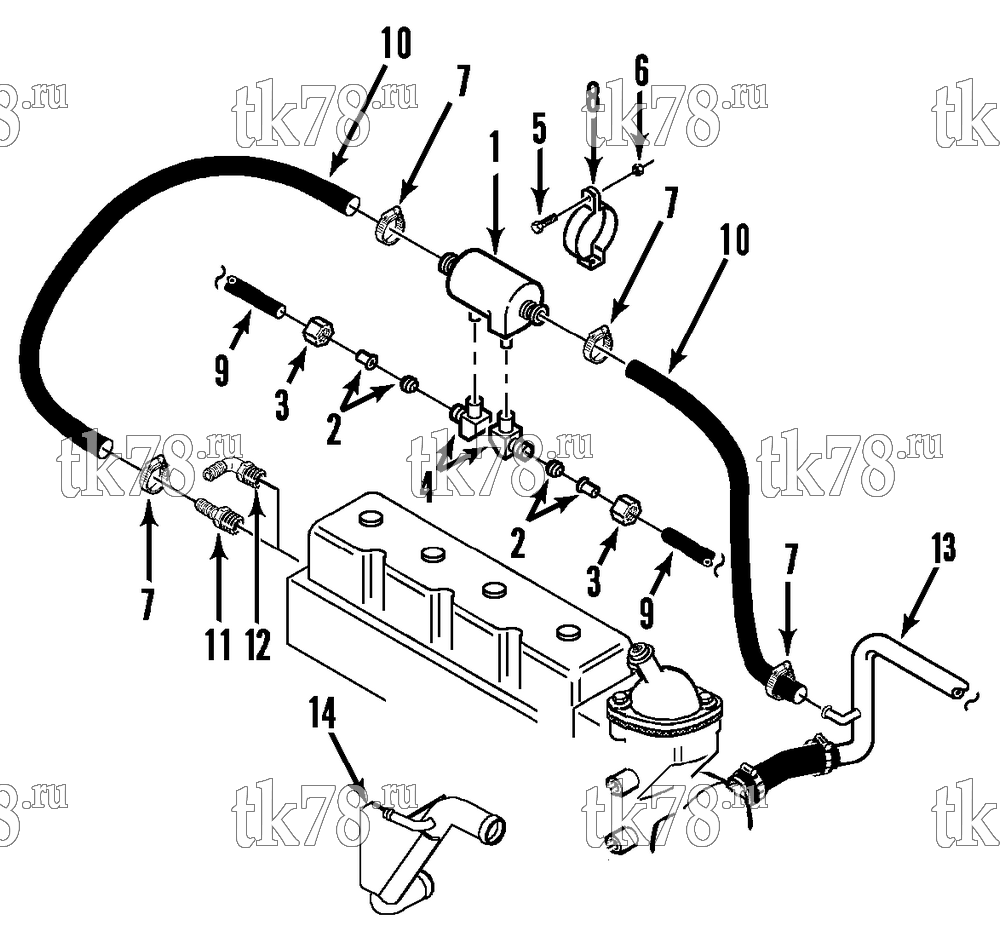

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема DIESEL FUEL HEATER (SB-III) – 150G14
Обновление от: 9/12/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 11-7760 | KIT - fuel heater | 1 | |
| 99-9591 | FITTING | 1 | ||
| 2 | 10-242 | KIT - sleeve & eyelet (3/8) | 2 | |
|
P-40-00342-02 | Фитинг топливной магистрали | 1 040 ₽ |
|
| 3 | 11-4941 | NUT - hose (3/8) | 2 | |
| 4 | 11-4959 | ELBOW | 2 | |
| 5 | 55-101 | SCREW | 2 | |
| 6 | 55-4118 | NUT | 2 | |
| 7 | 55-6731 | CLAMP - hose | 2 | |
| 55-2330 | BANDWRAP | 8 | ||
| 8 | 55-2537 | HANGER - fuel heater | 1 | |
| 55-538 | SCREW | 1 | ||
| 55-411 | FLATWASHER | 2 | ||
| 55-366 | LOCKWASHER | 1 | ||
| 55-291 | NUT | 1 | ||
| 9 | 11-4372 | HOSE (3/8 od x 35 ft lg, nylon) | A/R | |
| 10 | 12-538 | HOSE (3/8 id x 25 ft silicone) | A/R | |
| 11 | 55-7398 | ADAPTER - hose (se 2.2 engine) | 1 | |
| 12 | 55-8653 | ADAPTER - hose (TK 486 engine) | 1 | |
| 203-385 | SEALER - thread | A/R | ||
| 13 | 11-7691 | TUBE - radiator (se 2.2 & di 2.2 engines, option 048675) | 1 | |
| 14 | 13-962 | TUBE - radiator (TK 486 engine) | 1 |
