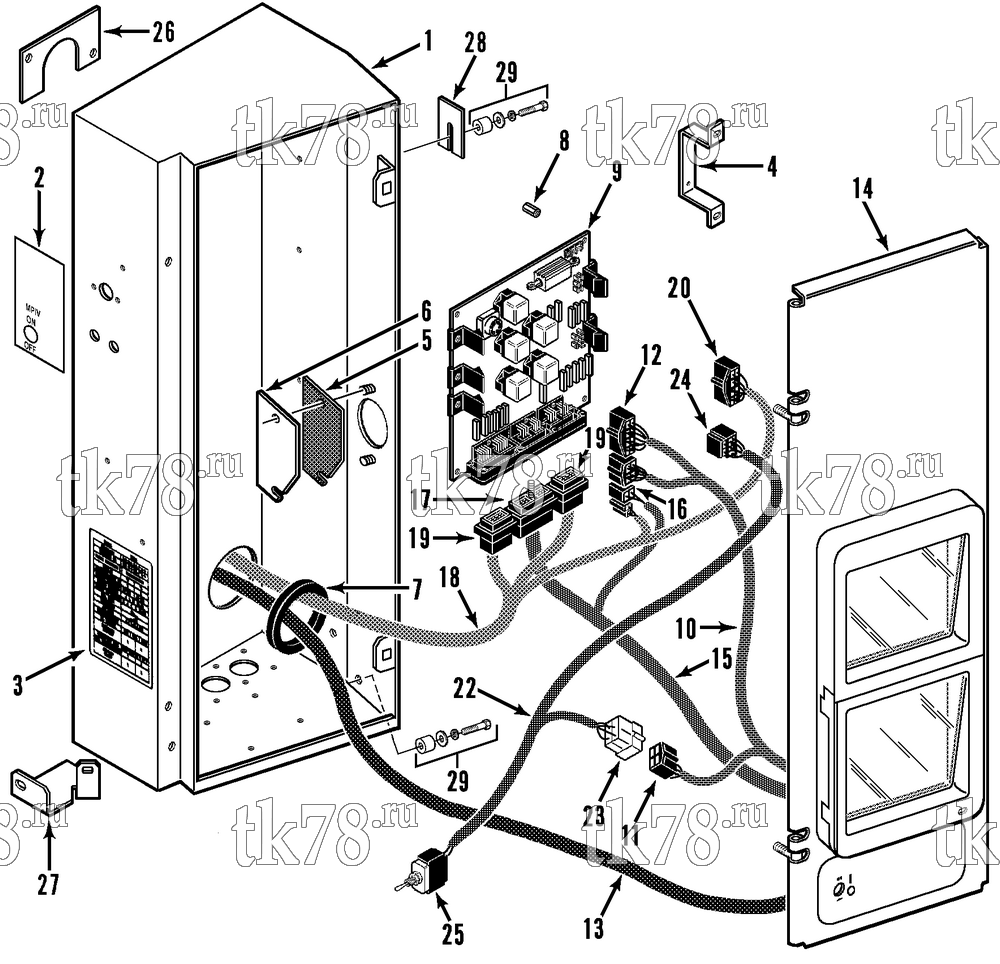

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема CONTROL BOX ASSEMBLY (SB-III 30 RAIL MP V) – 145E8
Обновление от: 6/1/00
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-5292 | BOX - control | 1 | |
| 55-3059 | NUT - captive (cover) | 2 | ||
| 2 | 91-5891 | NAMEPLATE - microprocessor | 1 | |
| 3 | 91-8066 | NAMEPLATE - sensor calibration | 1 | |
| 4 | 91-5726 | BRACKET - main harness | 1 | |
| 5 | 33-2233 | GASKET - cover | 1 | |
| 6 | 91-3455 | COVER | 1 | |
| 55-4560 | NUT - cover | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 7 | 33-930 | GROMMET (2-1/8 id) | 1 | |
| 8 | 99-9889 | SPACER - standoff (relay board) | 5 | |
| 9 | 41-3411 | BOARD - relay (see 120E15) | 1 | |
| 55-2001 | FLATWASHER | 2 | ||
| 55-2997 | SCREW - spacer & relay board | 10 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 203-393 | SEALER - thread | A/R | ||
| 10 | 41-2318 | HARNESS - switch | 1 | |
| 11 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 12 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 13 | 41-2181 | HARNESS - sensor | 1 | |
| 14 | NSS | COVER - box (see 145E7) | 1 | |
| 55-2114 | NUT - cover | 2 | ||
| 55-4954 | LOCKNUT - cover | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 203-392 | SEALER - antiseize | A/R | ||
| 15 | 41-2183 | HARNESS - interconnect | 1 | |
| 16 | 44-6451 | CONNECTOR (1-pin, female) | 1 | |
| 17 | 44-9769 | LOCK - receptacle (36-pin) | 1 | |
| 44-9768 | RECEPTACLE - lock | 1 | ||
| 18 | 41-2180 | HARNESS - main | 1 | |
| 19 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9855 | TERMINAL | 30 | ||
| 44-9854 | LOCK - receptacle (18-pin) | 2 | ||
| 20 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 55-544 | SCREW - box (1/4-20 x 1-1/4) | 1 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-7197 | WASHER - special | 1 | ||
| 21 | 55-538 | SCREW - box (1/4-20 x 5/8) | 3 | |
| 22 | 41-1791 | HARNESS - switch panel | 1 | |
| 23 | 44-5218 | CONNECTOR (4-pin, male) | 1 | |
| 24 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 25 | 44-7792 | SWITCH - power | 1 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
| 26 | 91-2699 | COVER - harness | 2 | |
| 55-3561 | SCREW - cover | 2 | ||
| 27 | 91-5724 | BRACKET - control box | 1 | |
| 55-165 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 28 | 91-5725 | SHIM - control box | 1 |
