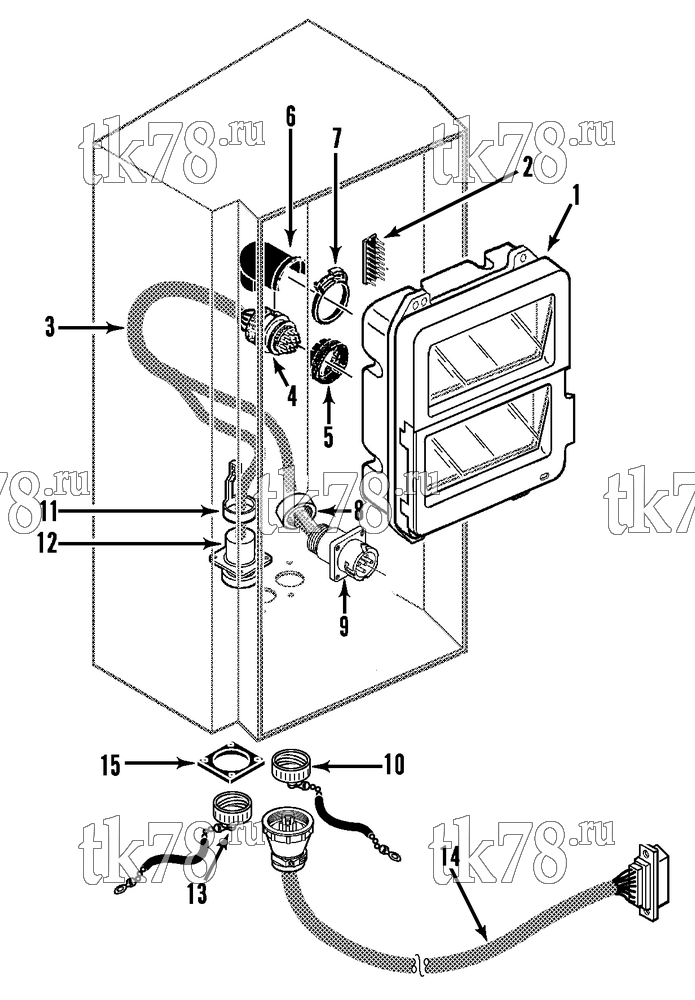

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема COMMUNICATIONS & DATA LOGGER (SB-III MP V) – 141E5
Обновление от: 11/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-2424 | CONTROLLER - microprocessor (datalogger & satellite communication capability) | 1 | |
| 845-2424 | CONTROLLER - microprocessor (datalogger & satellite communication capability, reman) | 1 | ||
| 2 | 40-634 | KIT - eprom chip | 1 | |
| 3 | 41-2185 | HARNESS - communication | 1 | |
| 4 | 41-746 | CONNECTOR (9-pin) | 1 | |
| 41-182 | TERMINAL - pin (controller end) | 9 | ||
| 5 | 41-747 | LOCKRING | 1 | |
| 6 | 41-224 | STRAIN RELIEF - connector (14-pin) | 1 | |
| 7 | 55-7617 | CLAMP (plastic) | 1 | |
| 8 | 41-1126 | CLAMP - cable | 1 | |
| 9 | 41-1127 | CONNECTOR - receptacle (5-pin) | 5 | |
| 44-9343 | PIN - terminal (data port connector) | 5 | ||
| 10 | 41-1129 | CAP - dust | 1 | |
| 11 | 44-8334 | STRAIN - relief | 1 | |
| 12 | 44-8329 | RECEPTACLE (6-pin) | 1 | |
| 44-9602 | PIN - sealing | 3 | ||
| 55-3427 | SCREW - receptacle | 4 | ||
| 55-2359 | FLATWASHER | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 | ||
| 13 | 44-8333 | CAP - dust | 1 | |
| 14 | 204-871 | CABLE - data (see 129A12) | 1 | |
| 15 | 91-8848 | SLEEVE - seal | 1 |
