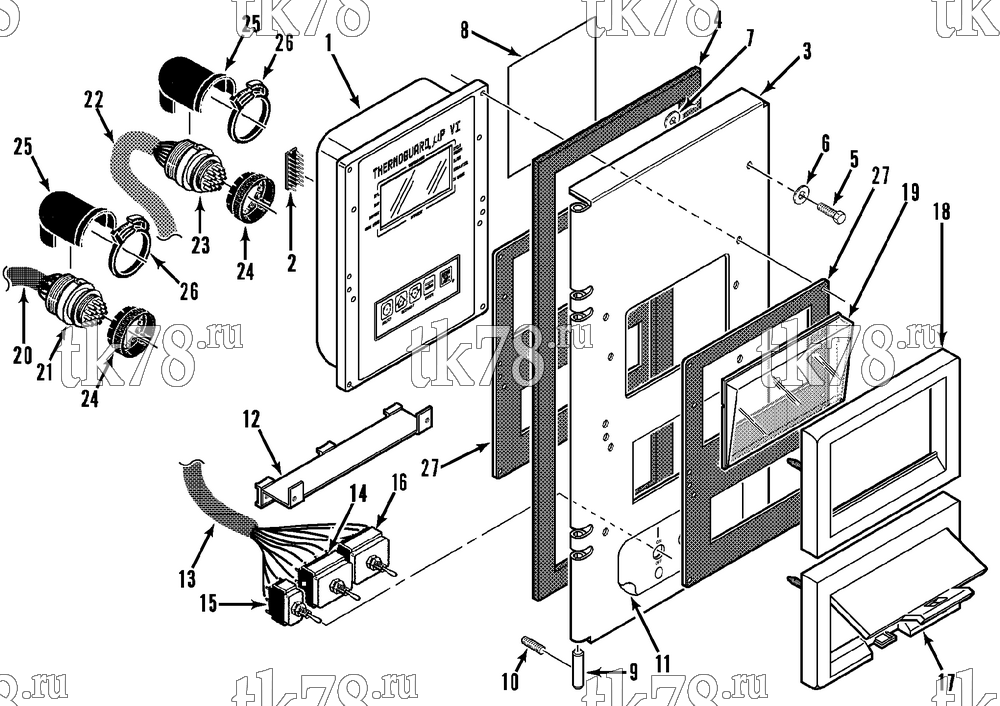

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема CONTROL BOX COVER (SB-III 50 TG VI) – 139A3
Обновление от: 11/28/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 45-1625 | CONTROLLER - TG VI | 1 | |
| 91-8113 | FACEPLATE | 1 | ||
| 45-2420 | CONTROLLER - TG VI (w/ Cycle Sentry) | 1 | ||
| 845-2420 | CONTROLLER - TG VI (w/ Cycle Sentry, reman) | 1 | ||
| 91-8114 | FACEPLATE | 1 | ||
| 10-91-8114 | Панель кнопок, SL-100e/200e | 4 250 ₽ |
|
|
| 45-2422 | CONTROLLER - TG VI (w/ Cycle Sentry & modulation) | 1 | ||
| 845-2422 | CONTROLLER - TG VI (w/ Cycle Sentry & modulation, reman) | 1 | ||
| 91-8115 | FACEPLATE | 1 | ||
| 55-4976 | SCREW - controller | 8 | ||
| 2 | 40-931 | KIT - eprom chip (V1082 TGVI) | 1 | |
| 3 | 91-7940 | DOOR - control box | 1 | |
| 4 | 33-2216 | GASKET - door | 1 | |
| 5 | 55-6352 | SCREW - door | 2 | |
| 6 | 55-3028 | WASHER - sealing | 2 | |
| 7 | 55-6772 | WASHER - split | 2 | |
| 8 | 91-6640 | NAMEPLATE - relay | 1 | |
| 9 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 10 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 91-8081 | NAMEPLATE - switch panel (TG VI, 50s) | 1 | ||
| 11 | 91-7923 | NAMEPLATE - switch panel (TG VI, 30s) | 1 | |
| 91-8082 | NAMEPLATE - switch panel (TG VI, w/ Cycle Sentry & phase reversal, 50s) | 1 | ||
| 91-8083 | NAMEPLATE - switch panel (TG VI, w/ Cycle Sentry & phase reversal, 50s) | 1 | ||
| 91-7139 | NAMEPLATE - switch panel (TG IV, w/ Cycle Sentry) | 1 | ||
| 91-7924 | NAMEPLATE - switch panel (TG IV, w/ Cycle Sentry & phase reversal) | 1 | ||
| 12 | 91-7140 | BRACKET - harness | 1 | |
| 13 | 41-2033 | HARNESS - switch | 1 | |
| 41-2137 | HARNESS - switch (w/ Cycle Sentry) | 1 | ||
| 14 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 15 | 44-7929 | SWITCH - on/off | 1 | |
|
10-44-7929 | Выключатель двухполюсный, SB-III/SMX/SMX-II/SL | 5 920 ₽ |
|
| 16 | 44-7930 | SWITCH - diesel/electric | 1 | |
| 17 | 91-7143 | BEZEL - TG VI (complete) | 1 | |
| 18 | 91-7141 | BEZEL (upper) | 1 | |
| 19 | 91-7142 | WINDOW - bezel | 1 | |
| 20 | 41-588 | HARNESS - sensor | 1 | |
| 21 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 22 | 41-2034 | HARNESS - interconnecting | 1 | |
| 23 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 24 | 41-748 | LOCKRING | 2 | |
| 25 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 26 | 55-7618 | CLAMP (plastic) | 2 | |
| 27 | 33-2797 | GASKET - bezel | 2 |
