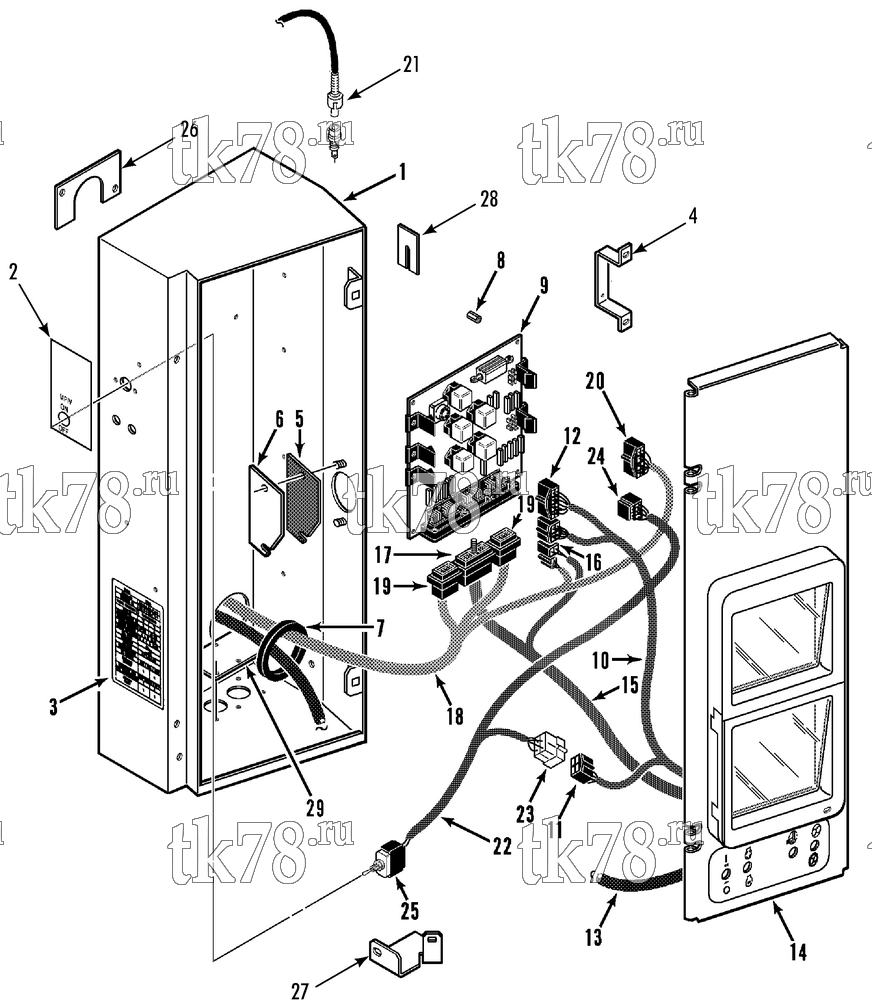

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема CONTROL BOX ASSEMBLY (SB-III SR+ MP IV+) – 120E3
Обновление от: 4/17/11
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4614 | BOX - control | 1 | |
| 55-3059 | NUT - captive | 2 | ||
| 2 | 91-5891 | NAMEPLATE - microprocessor | 1 | |
| 91-7135 | NAMEPLATE - blank | 1 | ||
| 3 | 91-6032 | NAMEPLATE - sensor grade | 1 | |
| 4 | 91-5726 | BRACKET - main harness | 1 | |
| 5 | 33-2233 | GASKET - cover | 1 | |
| 6 | 91-3455 | COVER | 1 | |
| 55-4560 | NUT - cover | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 7 | 33-930 | GROMMET (2-1/8 id) | 1 | |
| 8 | 91-5283 | SPACER - relay board | 5 | |
| 9 | 41-3411 | BOARD - relay (before 10/99, see 120E15) | 1 | |
| 41-3411 | BOARD - relay (10/99 & after, see 155G11) | 1 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2997 | SCREW - spacer & relay board | 10 | ||
| 55-2998 | LOCKWASHER | 10 | ||
| 203-393 | SEALER - thread | A/R | ||
| 10 | 41-7087 | HARNESS - switch | 1 | |
| 11 | 44-5224 | CONNECTOR (4-pin, female) | 1 | |
| 12 | 44-5719 | CONNECTOR (8-pin, female) | 1 | |
| 13 | 41-588 | HARNESS - sensor | 1 | |
| 14 | 91-3363 | DOOR - control box (see 126A12) | 1 | |
| 55-2114 | NUT - cover | 2 | ||
| 55-4954 | LOCKNUT - cover | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 4 | ||
| 55-3034 | WASHER - sealing | 2 | ||
| 15 | 41-1145 | HARNESS - interconnect | 1 | |
| 16 | 44-6451 | CONNECTOR (1-pin, female) | 1 | |
| 17 | 44-9769 | LOCK - receptacle (36-pin) | 1 | |
| 44-9768 | RECEPTACLE - lock | 1 | ||
| 18 | 41-1708 | HARNESS - main (before 3/95) | 1 | |
| 41-2751 | HARNESS - main (3/95 & after) | 1 | ||
| 19 | 44-9853 | RECEPTACLE (18-pin) | 2 | |
| 44-9855 | TERMINAL | 30 | ||
| 44-9854 | LOCK - receptacle (18-pin) | 2 | ||
| 20 | 44-5030 | CONNECTOR (6-pin, female) | 1 | |
| 21 | 204-209 | LEAD - thermistor (option 092315) | 1 | |
| 22 | 41-618 | HARNESS - switch panel (before 8/96) | 1 | |
| 41-2189 | HARNESS - non-logging (8/96 & after) | 1 | ||
| 41-2761 | HARNESS - microprocessor on/off (option 048505) | 1 | ||
| 23 | 44-5218 | CONNECTOR (4-pin, male) | 1 | |
| 24 | 44-5622 | CONNECTOR (6-pin, female) | 1 | |
| 25 | 44-7793 | SWITCH - power | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 26 | 91-2699 | COVER - harness | 2 | |
| 55-3561 | SCREW - cover | 2 | ||
| 27 | 91-5724 | BRACKET - control box | 1 | |
| 55-165 | SCREW - bracket | 2 | ||
| 55-366 | LOCKWASHER | 2 | ||
| 28 | 91-5725 | SHIM - control box | 1 | |
| 55-538 | SCREW - box (1/4-20 x 5/8) | 3 | ||
| 55-544 | SCREW - box (1/4-20 x 1-1/4) | 1 | ||
| 55-366 | LOCKWASHER | 6 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-7197 | WASHER - special | 1 | ||
| 29 | 91-6610 | COVER - tracker access | 1 | |
| 55-3427 | SCREW - cover | 4 | ||
| 55-2359 | FLATWASHER | 4 | ||
| 55-2360 | LOCKWASHER | 4 | ||
| 55-2361 | NUT | 4 |
