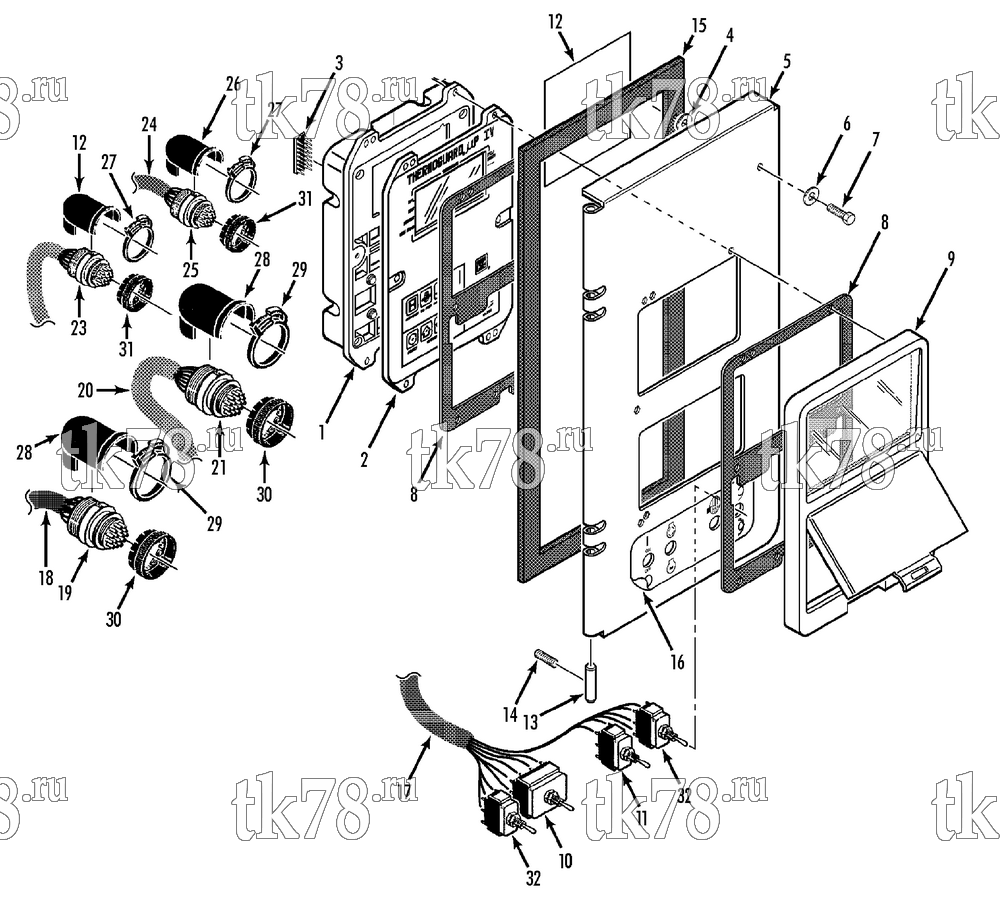

Установкa Thermo King SB-III SR MP IV+ TG VI & Rail w/se 2.2 Engine схема CONTROL BOX COVER (SB-III SR, 11/93 & After) – 120A1
Обновление от: 11/27/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 845-2419 | CONTROLLER - microprocessor (remanufactured) | 1 | |
| 2 | 91-9805 | FACEPLATE/OVERLAY | 1 | |
| 3 | 40-714 | KIT - eprom chip (V310) | 1 | |
| 55-4580 | SCREW - controller | 6 | ||
| 55-1800 | LOCKWASHER | 6 | ||
| 55-2086 | FLATWASHER | 6 | ||
| 4 | 55-6772 | WASHER - split | 2 | |
| 5 | 91-3363 | DOOR - control box | 1 | |
| 6 | 55-6772 | WASHER - split | 2 | |
| 55-3028 | WASHER - sealing | 2 | ||
| 7 | 55-6352 | SCREW - door | 2 | |
| 8 | 33-2894 | GASKET - bezel | 2 | |
| 9 | 91-9303 | BEZEL | 1 | |
|
10-91-9303 | Панель | 11 860 ₽ |
|
| 10 | 44-7932 | SWITCH - preheat/start | 1 | |
|
10-44-7932 | Выключатель старт / прогрев, SB-III/SMX/SMX-II / SL-100/200 | 7 550 ₽ |
|
| 11 | 44-7793 | SWITCH - defrost | 1 | |
|
10-44-7793 | Выключатель 1PST MOM | 8 890 ₽ |
|
| 12 | 91-4021 | NAMEPLATE - relay board | 1 | |
| 13 | 99-7900 | ROD - hinge | 2 | |
| 203-392 | SEALER - antiseize | A/R | ||
| 14 | 55-3473 | PIN - hinge | 2 | |
| 203-393 | SEALER - thread | A/R | ||
| 15 | 33-2216 | GASKET - door | 1 | |
| 16 | 91-3369 | NAMEPLATE - switch | 1 | |
| 17 | 41-591 | HARNESS - switch (incl items 32-34) | 1 | |
| 18 | 41-588 | HARNESS - sensor | 1 | |
| 19 | 41-744 | CONNECTOR - circular (19-pin) | 1 | |
| 20 | 41-590 | HARNESS - signal | 1 | |
| 21 | 41-743 | CONNECTOR - circular (17-pin) | 1 | |
| 22 | 44-9851 | HARNESS - interface | 1 | |
| 23 | 41-745 | CONNECTOR - circular (23-pin) | 1 | |
| 33-3716 | SEAL - peripheral | 1 | ||
| 24 | 44-9325 | HARNESS - communications (optional, see 103C8) | 1 | |
| 25 | 41-746 | CONNECTOR - circular (17-pin) | 1 | |
| 44-9327 | CONNECTOR (13-pin, female) | 1 | ||
| 26 | 41-224 | STRAIN RELIEF - connector (14-pin) | 2 | |
| 27 | 55-7617 | CLAMP (plastic) | 2 | |
| 28 | 41-225 | STRAIN RELIEF - connector (19-pin) | 2 | |
| 29 | 55-7618 | CLAMP (plastic) | 2 | |
| 30 | 41-748 | LOCKRING | 2 | |
| 31 | 41-747 | LOCKRING | 2 | |
| 32 | 44-7792 | SWITCH - on/off (Cycle Sentry) | 2 | |
|
10-44-7792 | Выключатель однополюсный, SB-II/III / SMX/SMX-II / SL-300/400 | 3 640 ₽ |
|
