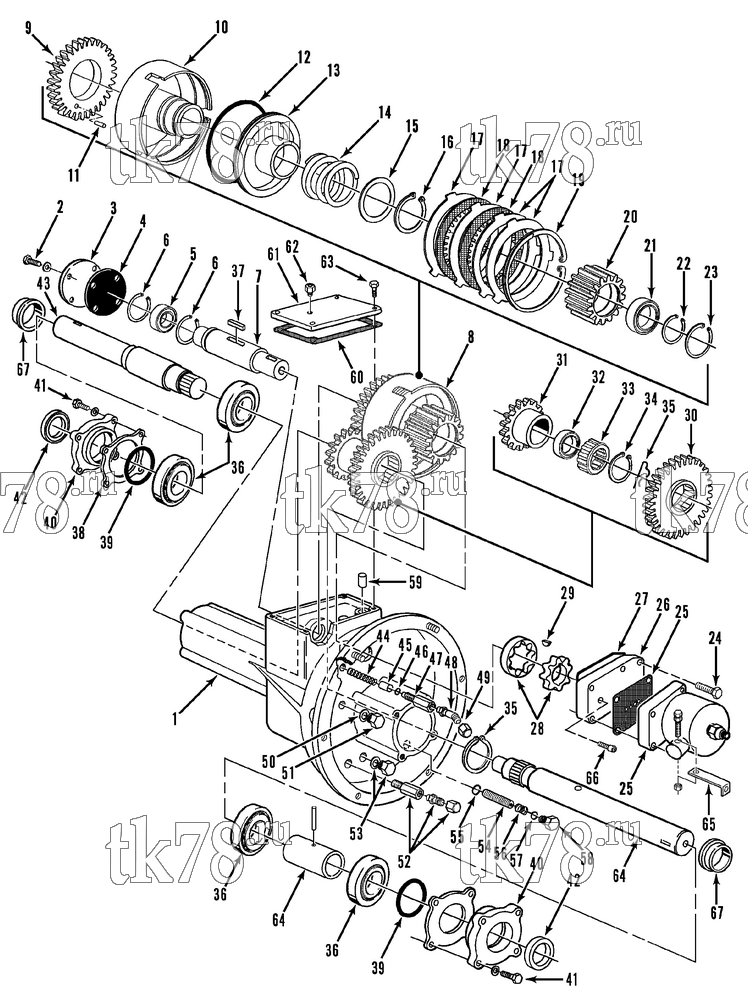

Установкa Thermo King SB-III SLE & MAX EMEIA 30 & 50 w/se 2.2 Engine схема TWO SPEED TRANSMISSION – 78A10
Обновление от: 3/1/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 78-693 | TRANSMISSION - two speed | 1 | ||
| 1 | 98-3178 | HOUSING | 1 | |
| 2 | 55-1510 | SCREW - cover | 4 | |
| 55-431 | FLATWASHER | 4 | ||
| 3 | 77-1547 | COVER - ball bearing | 1 | |
| 4 | 33-1602 | GASKET | 1 | |
| 5 | 77-1546 | BEARING - ball | 1 | |
| 6 | 55-5403 | RING - retaining (ext) | 1 | |
| 55-5375 | RING - retaining (int) | 1 | ||
| 7 | 77-1545 | SHAFT - counter | 1 | |
| 8 | 77-1745 | CLUTCH ASSEMBLY - pack | 1 | |
| 9 | 77-1749 | GEAR - counter shaft | 1 | |
| 10 | 77-1748 | HOUSING - piston (incl 9) | 1 | |
| 11 | 55-4211 | PIN - dowel | 1 | |
| 12 | 33-1175 | O-RING | 1 | |
|
10-33-1175 | О-ринг крышки масляного насоса компрессора X214/426/430 | 280 ₽ |
|
| 13 | 77-1538 | PISTON | 1 | |
| 14 | 77-1747 | SPRING - clutch | 1 | |
| 15 | 55-5372 | WASHER - spring support | 1 | |
| 16 | 55-464 | RING - retaining (ext) | 1 | |
| 17 | 77-1542 | PLATE - separator | 4 | |
| 18 | 77-1541 | PLATE - friction | 2 | |
| 19 | 55-5373 | RING - retaining (int) | 1 | |
| 20 | 77-1746 | GEAR - plate | 1 | |
| 21 | 77-1543 | BEARING - ball | 1 | |
| 22 | 55-5368 | RING - retaining (ext) | 1 | |
| 23 | 55-5374 | RING - retaining (int) | 1 | |
| 24 | 55-731 | SCREW - valve (1-3/4) | 2 | |
| 55-101 | SCREW - valve (1 in lg) | 4 | ||
| 55-411 | FLATWASHER | 6 | ||
| 25 | 44-6484 | VALVE - overdrive control | 1 | |
| 44-6595 | COIL (12VDC) | 1 | ||
| 33-1784 | GASKET - valve | 1 | ||
| 26 | 77-1741 | HOUSING - pump | 1 | |
| 27 | 33-1613 | O-RING | 1 | |
| 28 | 77-1548 | GEROTOR - assembly | 1 | |
| 29 | 55-5924 | KEY - gerotor | 1 | |
| 30 | 77-1742 | GEAR - input | 1 | |
| 31 | 77-1737 | GEAR & CLUTCH - output | 1 | |
| 32 | 77-1739 | BEARING | 1 | |
| 33 | 77-1740 | CLUTCH | 1 | |
| 34 | 55-5923 | RING - retaining (int) | 1 | |
| 55-5927 | RING - retaining (ext) | 1 | ||
| 35 | 55-5926 | RETAINER - gear | 1 | |
| 36 | 77-1070 | BEARING - roller | 4 | |
|
10-77-1070 | Подшипник промежуточного вала | 2 240 ₽ |
|
| 37 | 55-2048 | KEY - counter shaft | 1 | |
| 38 | 99-7982 | SHIM (0.005 thk) | A/R | |
| 99-7983 | SHIM (0.007 thk) | A/R | ||
| 99-7984 | SHIM (0.020 thk) | A/R | ||
| 39 | 33-1599 | O-RING | 2 | |
| 40 | 99-7981 | CAP - end | 2 | |
| 41 | 55-2977 | SCREW - cap | 8 | |
| 55-2086 | FLATWASHER | 8 | ||
| 42 | 33-2134 | SEAL | 2 | |
|
10-33-2134 | Сальник промвала и вала вентиляторов | 2 300 ₽ |
|
| 43 | 77-1736 | SHAFT - output | 1 | |
| 44 | 77-1743 | SPRING - pressure regulator | 1 | |
| 45 | 77-1550 | PLUNGER | 1 | |
| 46 | 33-1009 | O-RING | 1 | |
| 47 | 77-1744 | PLUG - pressure regulator | 1 | |
| 48 | 11-5513 | VALVE (Schrader) | 1 | |
| 49 | 55-5672 | CAP - valve | 1 | |
| 50 | 55-5383 | WASHER | 1 | |
| 51 | 55-5382 | PLUG - fill | 1 | |
| 52 | 55-5928 | EXTENSION - drain | 1 | |
| 55-459 | COUPLING | 1 | ||
| 55-1983 | CAP - coupling | 1 | ||
| 53 | 55-6751 | PLUG - magnetic | 1 | |
|
10-55-6751 | Пробка масляного поддона компрессора магнитная | 1 720 ₽ |
|
| 55-4306 | FLATWASHER | 1 | ||
| 54 | 11-5676 | FILTER - oil | 1 | |
| 55 | 33-672 | O-RING | 1 | |
|
10-33-672 | Прокладка компрессора Regulator | 410 ₽ |
|
| 33-672 OEM | Прокладка компрессора Regulator | 80 ₽ |
|
|
| 56 | 11-5677 | SPRING - filter | 1 | |
| 57 | 33-1222 | O-RING - plug | 1 | |
| 58 | 55-5405 | PLUG - filter | 1 | |
| 59 | 55-5385 | PIN - dowel | 1 | |
| 60 | 33-1604 | GASKET - cover | 1 | |
| 61 | 99-9627 | COVER - housing | 1 | |
| 62 | 55-6418 | VENT - air | 1 | |
| 63 | 55-1510 | SCREW - cover | 4 | |
| 55-431 | FLATWASHER | 4 | ||
| 64 | 77-1735 | SHAFT - input | 1 | |
| 65 | 44-7355 | STRAP - input | 1 | |
| 66 | 55-5925 | SCREW - socket head (10-32) | 1 | |
| 67 | 11-6863 | SLEEVE - repair | 1 | |
|
10-11-6863 | Втулка | 3 770 ₽ |
|
| 203-342 | OIL - transmission | A/R |
