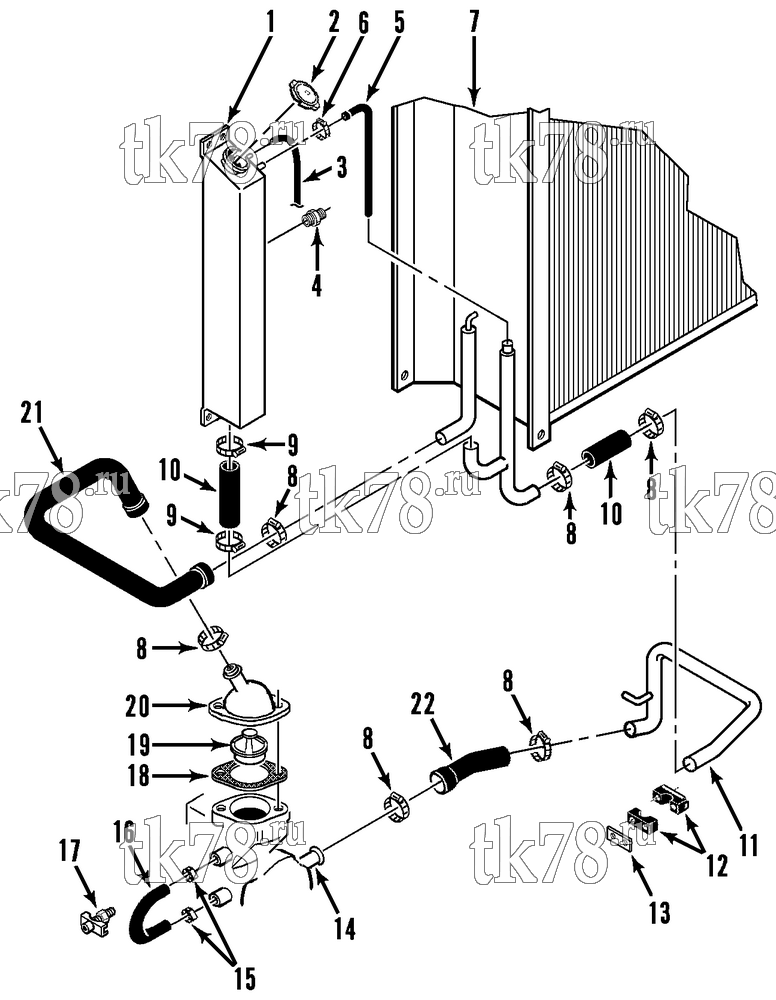

Установкa Thermo King SB-III S+ w/se 2.2 Engine схема ENGINE COOLING SYSTEM – 119F1
Обновление от: 5/16/06
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 12-730 | TANK - expansion | 1 | |
| 12-842 | TANK - expansion (incl sensor & cap) | 1 | ||
|
10-12-842 | Расширительный бак | 38 500 ₽ |
|
| 55-145 | SCREW - tank | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 2 | 11-5406 | CAP - radiator (for tank 12-730) | 1 | |
|
10-11-5406 | Крышка радиатора | 2 200 ₽ |
|
| 11-9632 | CAP - radiator (for tank 12-842) | 1 | ||
|
10-11-9632 | Крышка расширительного бачка, SLX/SLXe | 930 ₽ |
|
| 3 | 99-1655 | HOSE - overflow | 1 | |
| 4 | 41-1818 | SENSOR - coolant level (for tank 12-730) | 1 | |
| 41-1818 OEM | Датчик уровня охлаждающей жидкости | 13 580 ₽ |
|
|
| 41-6217 | SENSOR - coolant level (for tank 12-842) | 1 | ||
| 55-4560 | NUT - terminal | 1 | ||
| 55-2996 | LOCKWASHER | 1 | ||
| 55-2001 | FLATWASHER | 1 | ||
| 5 | 11-8050 | HOSE - bleed | 1 | |
| 55-6526 | INSERT | 4 | ||
| 6 | 55-2796 | CLAMP - hose | 4 | |
| 7 | 67-1205 | COIL - condenser/radiator (lower, see 119E4) | 1 | |
| 8 | 55-558 | CLAMP - hose | 6 | |
| 55-3402 | CLAMP - hose (silicone) | 6 | ||
| 9 | 55-6726 | CLAMP - hose | 2 | |
| 10 | 11-8480 | HOSE - radiator to tank (EPDM) | 1 | |
| 12-537 | HOSE - radiator to tank (silicone, cut to 6.0 in) | 1 | ||
| 11 | 11-7691 | TUBE - radiator | 1 | |
| 12 | 91-2473 | CLAMP - tube | 4 | |
| 55-263 | SCREW - clamp | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-4118 | NUT | 4 | ||
| 13 | 91-6158 | PLATE - clamp | 2 | |
| 14 | 11-9356 | PUMP - coolant (ELC compatible, see 100C10) | 1 | |
|
US-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 10 780 ₽ |
|
|
PP-11-9356 | Водяной насос, Isuzu 2.2 (D201), SB-II/III / SMX/SMX-II | 4 960 ₽ |
|
| 15 | 55-6726 | CLAMP - hose | 2 | |
| 55-1521 | CLAMP - hose (silicone) | 2 | ||
| 16 | 11-5861 | HOSE - bypass (EPDM) | 1 | |
|
10-11-5861 | Трубка обходная, Isuzu 2.2 D.I. | 2 200 ₽ |
|
| 11-5932 | HOSE - bypass (silicone) | 1 | ||
| 17 | 55-5094 | DRAIN COCK | 1 | |
| 18 | 33-487 | GASKET - thermostat | 1 | |
|
10-33-487 | Прокладка термостата, Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 910 ₽ |
|
| 19 | 11-7702 | THERMOSTAT - coolant | 1 | |
|
11-7702 OEM | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 3 830 ₽ |
|
|
10-11-7702 | Термостат Isuzu 2.2, SB-I/II/III / SMX/SMX-II | 1 790 ₽ |
|
| 20 | 11-3346 | ADAPTER - water outlet | 1 | |
| 55-5424 | SCREW - adapter | 2 | ||
| 55-790 | LOCKWASHER | 2 | ||
| 21 | 11-9529 | HOSE - engine to radiator (EPDM) | 1 | |
|
10-11-9529 | Патрубок радиатора верхний | 3 320 ₽ |
|
| 11-9530 | HOSE - engine to radiator (silicone) | 1 | ||
| 22 | 11-9551 | HOSE - engine to tube | 1 | |
| 11-9552 | HOSE - engine to tube (silicone) | 1 |
