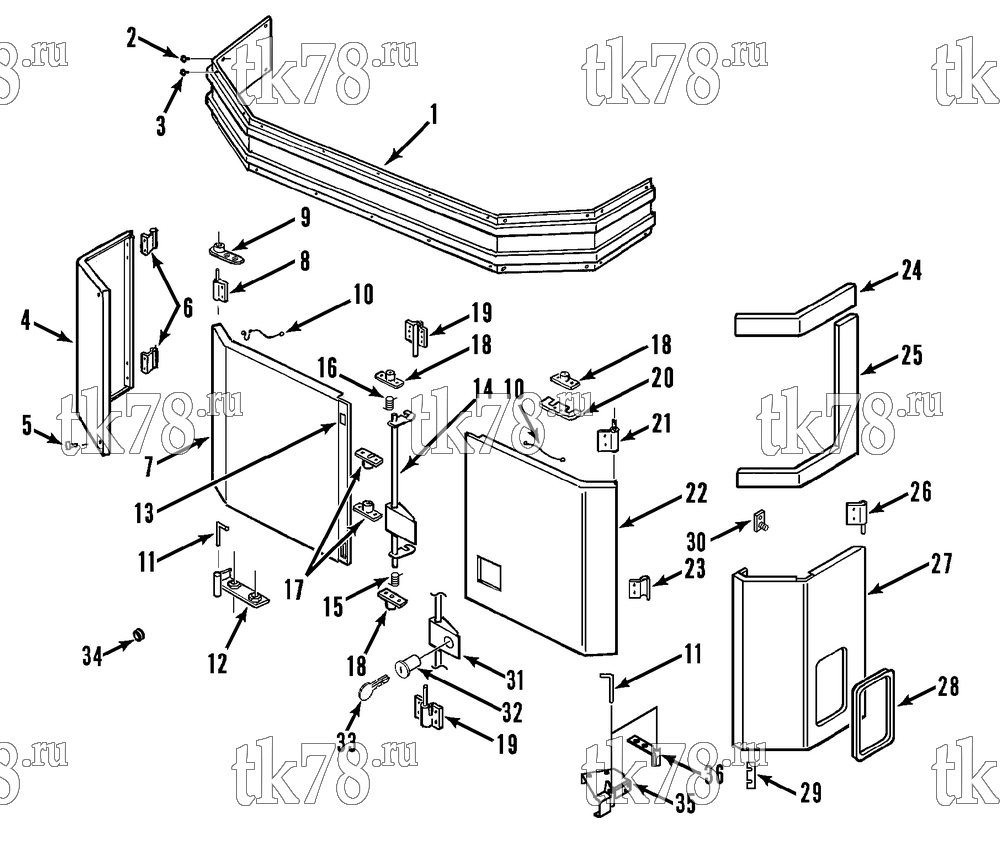

Установкa Thermo King SB-III S+ w/se 2.2 Engine схема CONDENSER COVERS, DOORS & GRILLE – 119D2
Обновление от: 5/30/12
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-3625 | BAND - center | 1 | |
| 98-2814 | STRIP - accent | 1 | ||
| 55-2988 | RIVET - strip | 4 | ||
| 55-2979 | SCREW - band | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT (1/4-20) | 3 | ||
| 55-4954 | NUT (5/16-18) | 4 | ||
| 55-2958 | FLATWASHER (5/16) | 4 | ||
| 2 | 33-1435 | GROMMET - bumper | 7 | |
| 3 | 99-9428 | GROMMET - bumper (w/ rivet) | 7 | |
| 55-5861 | RIVET - grommet | 7 | ||
| 4 | 98-2748 | PANEL (curbside) | 1 | |
|
10-98-2748 | Панель, SB-II & SB-III | 29 070 ₽ |
|
| 91-813 | PANEL (curbside, 50s, EMEIA) | 1 | ||
| 5 | 55-3018 | SCREW | 6 | |
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 1 | ||
| 55-4953 | NUT | 6 | ||
| 99-8499 | NUTSTRIP | 3 | ||
| 6 | 99-8022 | HINGE (curbside) | 2 | |
|
10-99-8022 | Петля | 1 260 ₽ |
|
| 55-2995 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 4 | ||
| 7 | 98-3030 | DOOR (curbside) | 1 | |
|
10-98-3030 | Дверь, SB-II & SB-III | 39 680 ₽ |
|
| 8 | 99-8104 | HINGE - door (front) | 1 | |
|
10-99-8104 | Петля | 2 160 ₽ |
|
| 9 | 99-8886 | BRACKET - door (curbside) | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 10 | 91-2498 | STRAP - door | 2 | |
| 55-2991 | SCREW - strap | 2 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-4560 | NUT | 2 | ||
| 11 | 99-8100 | PIN - pivot (lower door) | 2 | |
|
10-99-8100 | Штифт | 1 740 ₽ |
|
| 55-5601 | PIN - cotter | 2 | ||
| 99-8258 | SLEEVE - latch | 2 | ||
| 12 | 99-8689 | HINGE - panel (curbside) | 1 | |
| 55-3502 | SCREW - hinge | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 | ||
| 13 | 99-6377 | STRIP - bumper (adhesive type) | 7 | |
| 33-1804 | GROMMET - bumper | 3 | ||
| 14 | 91-9621 | LATCH - door | 1 | |
|
10-91-9621 | Замок двери | 15 880 ₽ |
|
| 15 | 91-2495 | SPRING - latch (cw, bottom) | 1 | |
| 16 | 91-2496 | SPRING - latch (ccw, top) | 1 | |
| 17 | 77-1555 | BEARING - damper | 2 | |
| 18 | 99-6565 | BEARING - latch ends | 4 | |
|
10-99-6565 | Демпфер | 1 040 ₽ |
|
| 55-1587 | SCREW - bearing | 8 | ||
| 55-2086 | FLATWASHER | 16 | ||
| 55-4953 | NUT | 8 | ||
| 55-3493 | NUT - captive | 4 | ||
| 19 | 99-8103 | PLATE - strike | 2 | |
|
10-99-8103 | Strike Plate | 1 740 ₽ |
|
| 55-1587 | SCREW | 4 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 55-4953 | NUT | 4 | ||
| 99-7062 | NUTSTRIP | 1 | ||
| 20 | 99-8887 | BRACKET - bearing | 1 | |
| 55-3018 | SCREW - bracket | 2 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-2086 | FLATWASHER | 4 | ||
| 55-4953 | NUT | 2 | ||
| 21 | 99-8304 | HINGE - door (front) | 1 | |
|
10-99-8304 | Петля | 2 160 ₽ |
|
| 55-3018 | SCREW - hinge | 8 | ||
|
|
20-55-3018 | Болт | 540 ₽ |
|
| 55-1800 | LOCKWASHER | 8 | ||
| 55-2086 | FLATWASHER | 8 | ||
| 22 | 98-4489 | DOOR - roadside | 1 | |
|
10-98-4489 | Дверь, SB-II & SB-III | 43 800 ₽ |
|
| 99-6377 | STRIP - bumper | 1 | ||
| 23 | 99-8029 | HINGE - door (w/o pin) | 1 | |
|
10-99-8029 | Петля | 2 430 ₽ |
|
| 24 | 91-2600 | PANEL - gauge (w/o compound pressure gauge, see 89C3) | 1 | |
| 91-1314 | PANEL - gauge (w/ compound pressure gauge) | 1 | ||
| 55-145 | SCREW - panel | 4 | ||
| 55-366 | LOCKWASHER | 4 | ||
| 55-411 | FLATWASHER | 4 | ||
| 55-3085 | NUT - captive | 4 | ||
| 25 | 98-3793 | COVER - control box (roadside) | 1 | |
| 55-2991 | SCREW - cover | 7 | ||
| 55-2001 | FLATWASHER | 7 | ||
| 55-2964 | LOCKWASHER | 7 | ||
| 55-3493 | NUT - captive | 2 | ||
| 26 | 99-8021 | HINGE (roadside) | 1 | |
|
10-99-8021 | Петля | 1 260 ₽ |
|
| 55-2991 | SCREW - hinge | 4 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-4560 | NUT | 4 | ||
| 27 | 98-4091 | PANEL (roadside) | 1 | |
| 28 | 91-3547 | TRIM - panel | 1 | |
| 29 | 91-5735 | SHIM - panel | 1 | |
| 30 | 91-5736 | BOLTSTRIP - door | 1 | |
| 55-2086 | FLATWASHER | 2 | ||
| 55-4953 | NUT | 2 | ||
| 31 | 91-5918 | LATCH - door (locking) | 1 | |
| 32 | 91-654 | LOCK - latch (EMEIA) | 1 | |
| 33 | 91-537 | KEY | 1 | |
| 34 | 33-2633 | GROMMET - bumper | 1 | |
| 35 | 90-306 | BRACKET - hinge (welded to frame) | 1 | |
| 36 | 92-398 | BRACKET - hinge (adjustable, 11/99 & after) | 1 | |
| 55-3502 | SCREW - bracket | 2 | ||
| 55-2959 | LOCKWASHER | 2 | ||
| 55-2958 | FLATWASHER | 2 |
