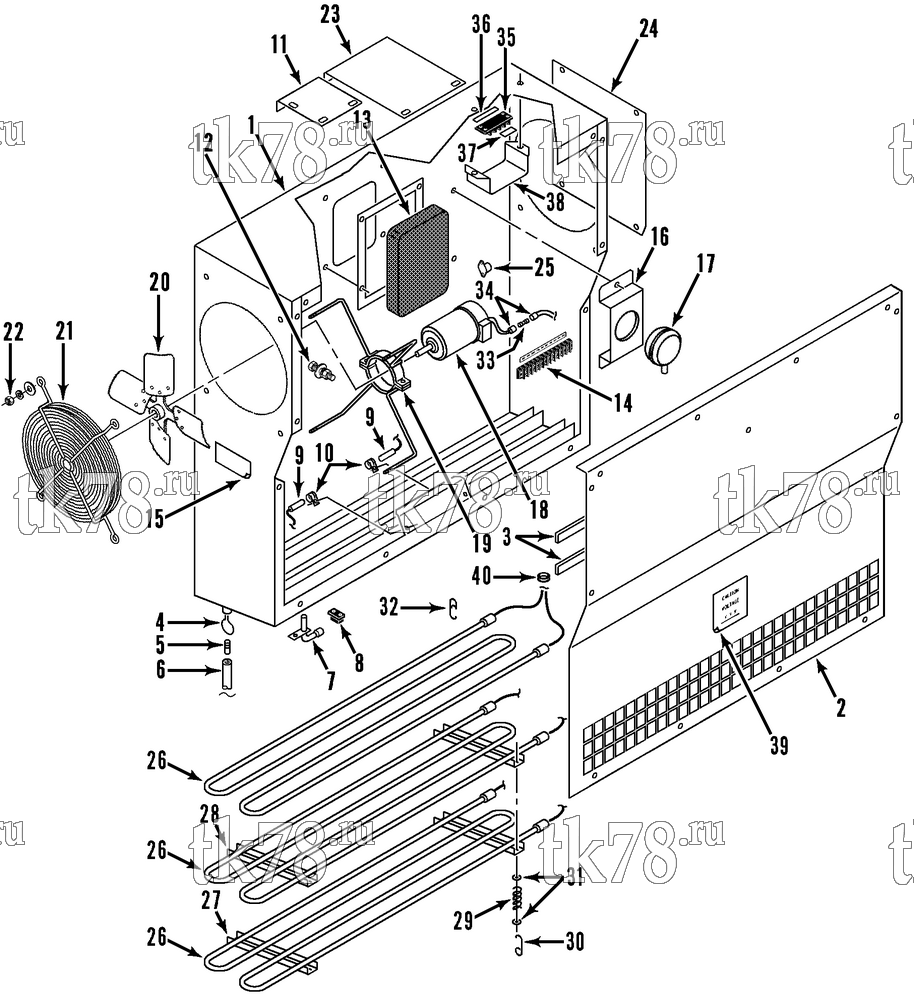

Установкa Thermo King SB-III MULTI-TEMP w/se 2.2 ENGINE схема EVAPORATOR EW-1 SINGLE FAN (KIT 712307) – 129B9
Обновление от: 8/25/08
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 98-4485 | HOUSING - evaporator | 1 | |
| 2 | 98-4486 | COVER - front panel | 1 | |
| 55-3098 | SCREW - cover | 12 | ||
| 55-1800 | LOCKWASHER | 12 | ||
| 55-2086 | FLATWASHER | 12 | ||
| 55-6733 | INSERT | 12 | ||
| 3 | 99-2221 | STRIP (neoprene) | A/R | |
| 4 | 44-6026 | WIRE - resistance (50 ft) | A/R | |
| 5 | 99-6095 | PIPE - drain | 2 | |
| 6 | 91-5494 | HOSE - drain | 2 | |
| 7 | 99-1275 | PROBE - switch | 1 | |
| 10-99-1275 | Зонд | 800 ₽ |
|
|
| 55-2264 | RIVET - air probe | 1 | ||
| 8 | 41-1514 | SWITCH - defrost termination | 1 | |
|
10-41-1514 | Датчик окончания оттайки | 14 220 ₽ |
|
| 55-3029 | SCREW - switch | 2 | ||
| 55-2201 | FLATWASHER | 2 | ||
| 55-2202 | LOCKWASHER | 2 | ||
| 9 | 44-7674 | SENSOR - harness | 2 | |
| 10 | 55-2239 | CLAMP - bulb | 2 | |
| 55-2991 | SCREW - clamp | 2 | ||
| 55-2001 | FLATWASHER | 2 | ||
| 55-2964 | LOCKWASHER | 2 | ||
| 55-4560 | NUT | 2 | ||
| 11 | 91-5287 | PLATE - cover solenoid | 1 | |
| 12 | 55-3000 | SCREW - ground | 1 | |
| 55-2201 | FLATWASHER | 2 | ||
| 55-2996 | LOCKWASHER (internal tooth) | 2 | ||
| 55-2964 | LOCKWASHER | 1 | ||
| 55-2965 | NUT | 2 | ||
| 13 | 99-7651 | COVER - access | 1 | |
| 55-2991 | SCREW - cover | 4 | ||
| 55-2001 | FLATWASHER | 4 | ||
| 55-2964 | LOCKWASHER | 4 | ||
| 55-6722 | INSERT | 4 | ||
| 14 | 44-4805 | BOARD - terminal | 1 | |
| 44-3579 | STRIP - jumper | 2 | ||
| 91-5286 | MARKSTRIP | 1 | ||
| 55-3511 | SCREW - board | 2 | ||
| 55-3800 | LOCKWASHER | 2 | ||
| 55-8609 | INSERT | 2 | ||
| 15 | 99-3247 | NAMEPLATE - R502 | 3 | |
| 16 | 91-3260 | BRACKET - air switch | 1 | |
| 55-1587 | SCREW - bracket | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-6733 | INSERT | 2 | ||
| 17 | 66-4487 | SWITCH - air pressure differential | 1 | |
| 99-1143 | HOSE - air switch | A/R | ||
| 55-2201 | FLATWASHER | 1 | ||
| 55-4953 | LOCKNUT | 1 | ||
| 305-1478 | INSERT | 2 | ||
| 18 | 44-8526 | MOTOR (see 87D1) | 1 | |
|
10-44-8526 | Электромотор вентилятора 12V | 29 070 ₽ |
|
| 19 | 99-3032 | MOUNT - motor | 2 | |
| 99-4520 | STRIP (rubber) | 2 | ||
| 55-1587 | SCREW - mount | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-1801 | NUT | 1 | ||
| 20 | 78-701 | FAN - evaporator | 1 | |
| 21 | 99-3033 | GUARD - evaporator fan | 1 | |
| 22 | 55-315 | NUT - guard | 4 | |
| 55-1800 | LOCKWASHER | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 23 | 99-7645 | COVER - housing evaporator | 1 | |
| 55-2991 | SCREW - cover & plate | 8 | ||
| 55-2001 | FLATWASHER | 8 | ||
| 55-2964 | LOCKWASHER | 8 | ||
| 55-6722 | INSERT | 8 | ||
| 24 | 91-5289 | COVER - fan | 1 | |
| 55-1587 | SCREW - cover | 4 | ||
| 55-2086 | FLATWASHER | 4 | ||
| 55-1800 | LOCKWASHER | 4 | ||
| 55-1801 | NUT | 4 | ||
| 25 | 44-3627 | SWITCH - high temperature cutout | 1 | |
| 55-5656 | SCREW - switch | 2 | ||
| 26 | 45-1012 | HEATER (300V, 1000W) | 3 | |
| 27 | 99-2420 | CHANNEL - heater | 2 | |
| 28 | 99-7647 | CHANNEL - heater | 2 | |
| 29 | 99-1736 | SPRING | 4 | |
| 30 | 99-7648 | KEEPER - hanger | 2 | |
| 31 | 55-2001 | FLATWASHER | 8 | |
| 32 | 91-240 | RETAINER | 12 | |
| 33 | 44-2590 | FUSE | 1 | |
| 34 | 44-9876 | HOLDER - fuse | 1 | |
| 35 | 44-4269 | BOARD - terminal | 1 | |
| 55-5665 | SCREW - board | 2 | ||
| 55-2201 | FLATWASHER | 4 | ||
| 55-4223 | NUT | 2 | ||
| 36 | 91-1423 | MARKSTRIP | 1 | |
| 37 | 91-1424 | MARKSTRIP | 1 | |
| 38 | 91-7014 | COVER - terminal board | 1 | |
| 55-1587 | SCREW - cover | 2 | ||
| 55-1800 | LOCKWASHER | 2 | ||
| 55-2086 | FLATWASHER | 2 | ||
| 55-4415 | NUT - captive | 2 | ||
| 39 | 99-3522 | NAMEPLATE - Caution 460 Volts | 1 | |
| 99-3407 | NAMEPLATE - Caution 230 Volts | 1 | ||
| 40 | 33-2780 | GROMMET | 1 |
