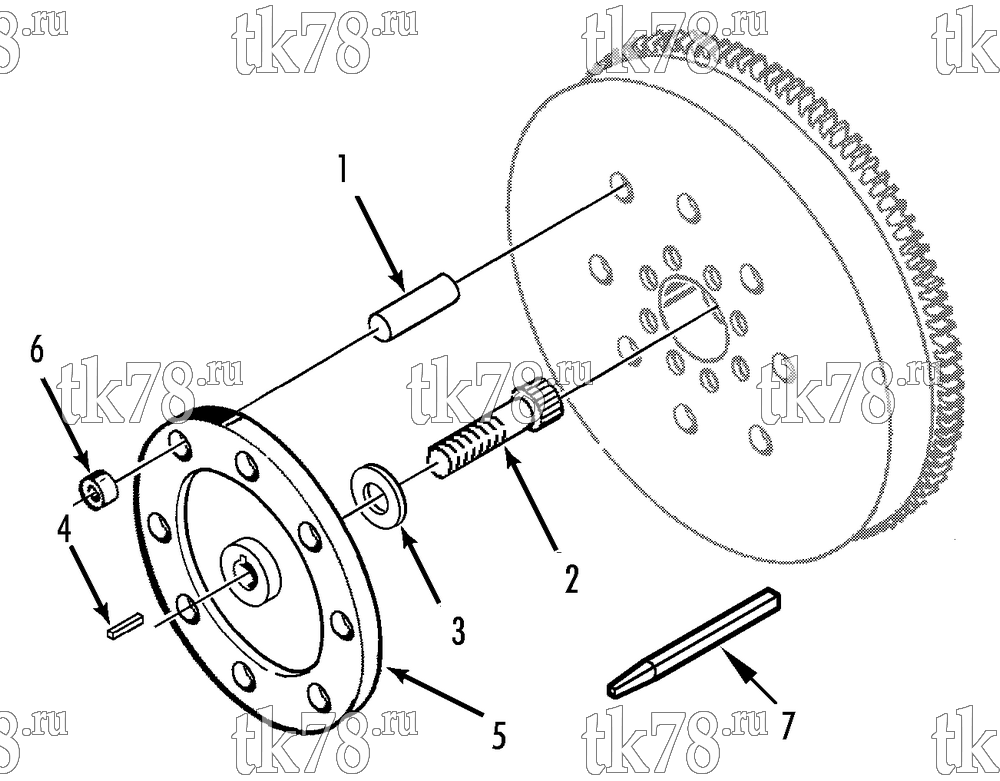

Установкa Thermo King SB-III MAGNUM WHISPER схема DRIVE COUPLING GROUP (w/ TK486 ENGINE) – 144G3
Обновление от: 9/15/03
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 1 | 55-1123 | PIN - dowel (std, .5002 dia, 2 in lg) | 8 | |
| 55-1123 OEM | Палец втулки муфты сцепления | 1 900 ₽ |
|
|
| 55-6377 | PIN - dowel (oversize, .5010 dia, 2.25 lg) | 8 | ||
| 2 | 55-9031 | SCREW - compressor coupling (socket head) | 1 | |
|
10-55-9031 | Болт, 12MM, Drive Coupler (Large Shaft) | 1 930 ₽ |
|
| 3 | 77-2505 | SPACER - compressor | 1 | |
|
10-77-2505 | Шайба, Drive Coupler (Large Shaft) | 3 660 ₽ |
|
| 4 | 55-9032 | KEY - coupling to compressor | 1 | |
|
10-55-9032 | Шпонка коленвала, X426LS/430LS | 590 ₽ |
|
| 5 | 77-2506 | COUPLING - compressor drive | 1 | |
|
10-77-2506 | Муфта сцепления, SB/SMX/SMX-II / SL/Sle 30 | 48 300 ₽ |
|
| 6 | 77-2856 | BUSHING - compressor | 8 | |
|
10-77-2856 | Втулка муфты сцепления | 1 080 ₽ |
|
|
PP-77-2856 | Втулка муфты сцепления | 490 ₽ |
|
| 7 | 204-972 | TOOL - keyway alignment | 1 |
