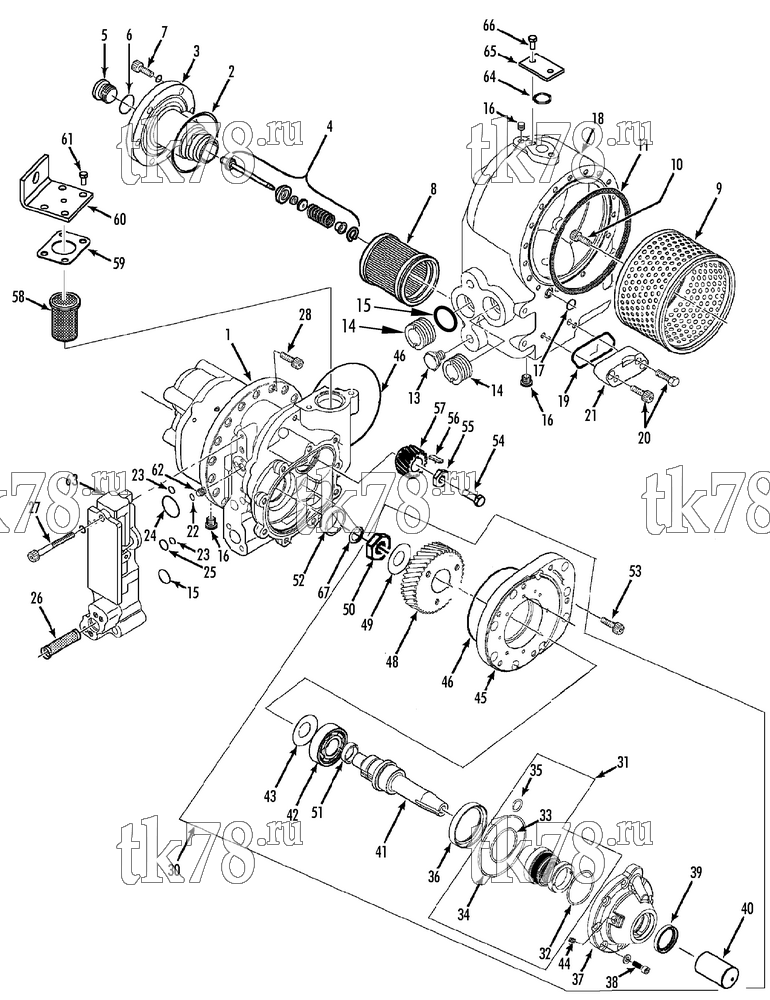

Установкa Thermo King SB-III MAGNUM WHISPER схема SCREW COMPRESSOR (1.187 SHAFT) – 144B13
Обновление от: 9/19/10
| № | TK # | Описание | Кол-во Цена | |
|---|---|---|---|---|
| 8102-816 | COMPRESSOR - screw (incl items 1 thru 67, see note) | 1 | ||
| 1 | NSS | ROTOR - assembly | 1 | |
| 2 | 33-2347 | O-RING | 1 | |
| 3 | 22-1044 | COVER - sump | 1 | |
| 4 | 22-995 | VALVE - oil bypass | 1 | |
| 5 | 55-8963 | PLUG - bypass valve | 1 | |
| 6 | 33-2747 | O-RING - plug | 1 | |
| 7 | 55-7755 | SCREW - cover | 6 | |
| 55-4613 | FLATWASHER | 6 | ||
| 8 | 22-998 | FILTER - oil | 1 | |
| 9 | 22-810 | SEPARATOR - oil | 1 | |
| 10 | 55-7428 | SCREW - separator | 1 | |
| 55-4742 | WASHER - special | 1 | ||
| 11 | 33-4544 | O-RING (6-3/4 id) | 1 | |
| 12 | 55-8397 | SCREW - cover | 5 | |
| 13 | 55-8398 | PLUG - drain | 1 | |
| 33-2747 | O-RING (1/2 od) | 1 | ||
| 14 | 22-350 | SIGHT GLASS | 1 | |
| 10-22-350 | Окно уровня масла, X214/418/426/430 | 3 730 ₽ |
|
|
| 15 | 33-4608 | O-RING - sight glass (1-1/8 id) | 2 | |
| 16 | 55-7756 | PLUG - pipe | 4 | |
| 17 | 33-4545 | O-RING (1/2 id) | 1 | |
| 18 | 23-142 | SUMP | 1 | |
| 19 | 33-4355 | O-RING (1-3/4 id) | 1 | |
| 20 | 55-7759 | SCREW - cover | 2 | |
| 55-4613 | FLATWASHER | 2 | ||
| 21 | 22-997 | COVER - access | 1 | |
| 22 | 33-1015 | O-RING (3/8 id) | 1 | |
| 33-1015 OEM | О-ринг фильтра-осушителя, 3/8" | 240 ₽ |
|
|
| 23 | 33-4610 | O-RING (7/16 id) | 2 | |
| 24 | 33-4356 | O-RING (1-1/2 id) | 1 | |
| 25 | 33-4611 | O-RING (7/8 id) | 1 | |
| 26 | 22-999 | STRAINER - suction | 1 | |
| 27 | 55-8393 | SCREW - valve holder | 4 | |
| 55-4613 | FLATWASHER | 4 | ||
| 28 | 55-7759 | SCREW - rotor housing | 16 | |
| 30 | 23-145 | SHAFT - assembly | 1 | |
| 31 | 22-1318 | SEAL - oil, assembly (1.187 shaft) | 1 | |
|
10-22-1175 | Сальник компрессора, SB-400/SB-III | 38 320 ₽ |
|
| 32 | 33-4356 | O-RING (1-1/2 id) | 1 | |
| 33 | 33-4355 | O-RING (1-3/4 id) | 1 | |
| 34 | 33-4357 | O-RING (3-1/4 id) | 1 | |
| 35 | 33-4358 | O-RING (9/16 id) | 1 | |
| 36 | 33-3005 | SEAL - shaft (housing to oil seal) | 1 | |
| 37 | 22-1177 | COVER - seal | 1 | |
| 38 | 55-7760 | SCREW - cover | 8 | |
| 55-4607 | FLATWASHER | 8 | ||
| 39 | 33-3004 | SEAL - oil (dirt) | 1 | |
|
10-33-3004 | Сальник коленвала, X426LS/430LS | 2 360 ₽ |
|
| PP-33-3004 | Сальник коленвала, X426LS/430LS | 1 270 ₽ |
|
|
| 40 | 55-8972 | CAP - shaft | 1 | |
| 41 | 22-1076 | SHAFT - drive (1.187 dia) | 1 | |
| 42 | 77-2542 | BEARING - shaft | 1 | |
| 43 | 22-1079 | SPACER | 1 | |
| 44 | 22-1042 | FITTING - barb | 1 | |
| 55-9033 | CAP - fitting | 1 | ||
| 45 | 22-1078 | COVER - gear | 1 | |
| 46 | 33-4542 | O-RING (5-1/8 id) | 2 | |
| 47 | 55-7444 | KEY - drive gear | 1 | |
| 48 | 22-826 | GEAR - drive | 1 | |
| 49 | 55-7443 | LOCKWASHER | 1 | |
| 50 | 55-7442 | NUT | 1 | |
| 51 | 77-2544 | RING - inner | 1 | |
| 52 | 77-2227 | RING - outer | 1 | |
| 53 | 55-8395 | SCREW - cover | 9 | |
| 54 | 55-9035 | SCREW - gear | 1 | |
| 55 | 55-7438 | WASHER - hex | 1 | |
| 56 | 55-8965 | KEY - gear | 1 | |
| 57 | 22-824 | GEAR - driven | 1 | |
| 58 | 22-708 | SCREEN - suction | 1 | |
| 59 | 33-2352 | GASKET - cover | 1 | |
| 60 | 91-5801 | COVER - suction | 1 | |
| 61 | 55-329 | SCREW - cover | 2 | |
| 62 | 22-859 | ORIFICE - compressor oil | 1 | |
| 63 | 22-1319 | COVER - valve | 1 | |
| 64 | 33-4359 | O-RING - cover | 1 | |
| 65 | 91-4133 | PLATE - discharge | 1 | |
| 66 | 55-5022 | SCREW - plate | 2 | |
| 67 | 55-7441 | SPACER | 1 | |
| 203-515 | OIL - compressor (1 gallon) | A/R |
